STM32F4DISCOVERY STM32F407 STM32 ARM Cortex-M4 Development Board Embed STLink V2

STM32F4DISCOVERY STM32F407 STM32 ARM Cortex-M4 Development Board Embed STLink V2



Introduction:
- The STM32F4DISCOVERY helps you to discover the STM32F4 high-performance features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.
- Based on the STM32F407VGT6, it includes an ST-LINK/V2 embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.

Features:

- STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package
- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 5 V supply voltage
- External application power supply: 3 V and 5 V
- LIS302DL, ST MEMS motion sensor, 3-axis digital output accelerometer
- MP45DT02, ST MEMS audio sensor, omni-directional digital microphone
- CS43L22, audio DAC with integrated class D speaker driver

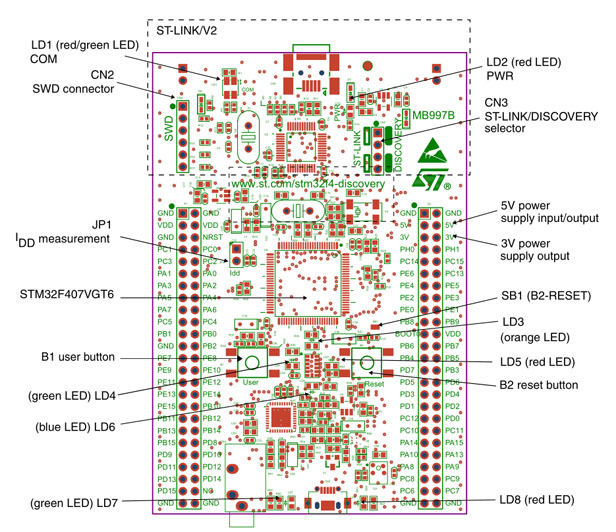

- Eight LEDs:
  LD1 (red/green) for USB communication
  LD2 (red) for 3.3 V power on
  Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
  2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current
- Two push buttons (user and reset)
- USB OTG FS with micro-AB connector
- Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing

Package list:
- 1 x STM32F4DISCOVERY STM32F407 STM32 ARM Cortex-M4 Development Board
