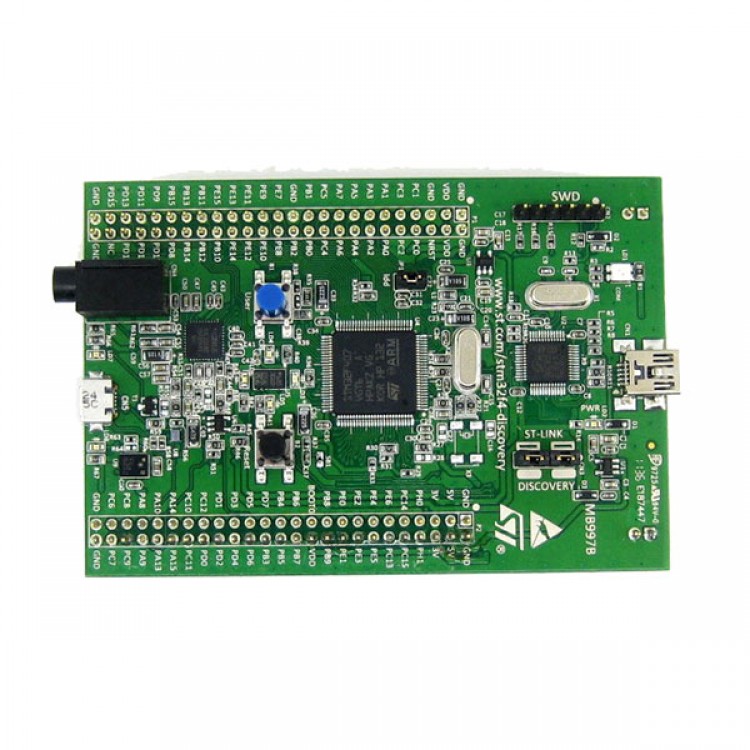

STM32F4DISCOVERY STM32F407 STM32 ARM Cortex-M4 Development Board Embed STLink/V2

Availability: Out Of Stock

Price:$29.90
Price in reward points: 299 Reward Points: 3

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$29.30	$28.70	$27.81	$26.61	Contact US

Product details
Reviews (0)

STM32F4DISCOVERY STM32F407 STM32 ARM Cortex-M4 Development Board Embed STLink/V2

Description:

- The STM32F4DISCOVERY helps you to discover the STM32F4 high-performance features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

- Based on the STM32F407VGT6, it includes an ST-LINK/V2 embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.

- A large number of free ready-to-run application firmware examples are available on www.st.com/stm32f4-discovery to support quick evaluation and development.

- STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package

- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)

- Board power supply: through USB bus or from an external 5 V supply voltage

- External application power supply: 3 V and 5 V

- LIS302DL, ST MEMS motion sensor, 3-axis digital output accelerometer

- MP45DT02, ST MEMS audio sensor, omni-directional digital microphone

- CS43L22, audio DAC with integrated class D speaker driver

- Eight LEDs:

- LD1 (red/green) for USB communication

- LD2 (red) for 3.3 V power on

- Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)

- 2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current

- Two push buttons (user and reset)

- USB OTG FS with micro-AB connector

- Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
