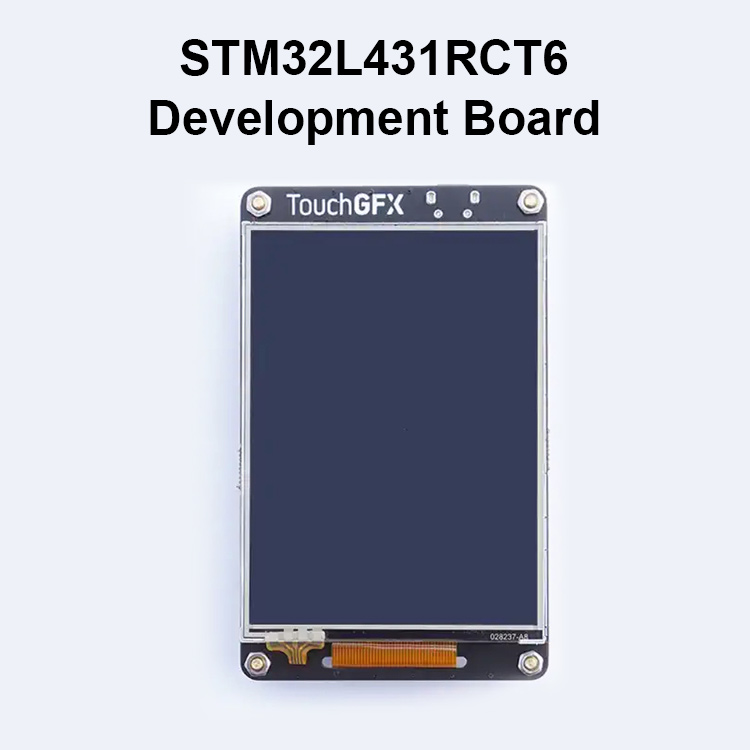

STM32L431RCT6 Development Board Core Board with 2.8-inch IPS Touch Screen for TouchGFX and LVGL
Description:

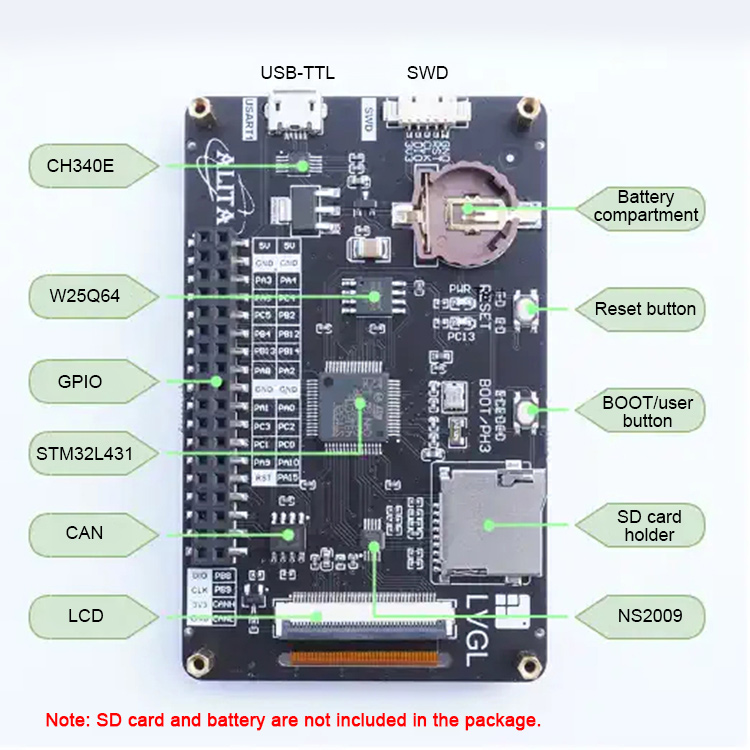

The development board integrates a touch screen with the required resources on a PCB slightly larger than the screen. The board brings out all unused IO ports on it. Therefore, it can be used as a core board as well as a controller with a display.
Features:
- For TouchGFX and LVGL
- STM32L431RCT6 CPU
- QSPI-FLASH: 8M Bytes
- 2.8" IPS resistive touch screen
Specifications:
- CPU: STM32L431RCT6
- Screen: 2.8" 240x320
- Touch screen: Resistive touch screen
- Onboard RAM: 64K Bytes
- QSPI-FLASH: 8M Bytes

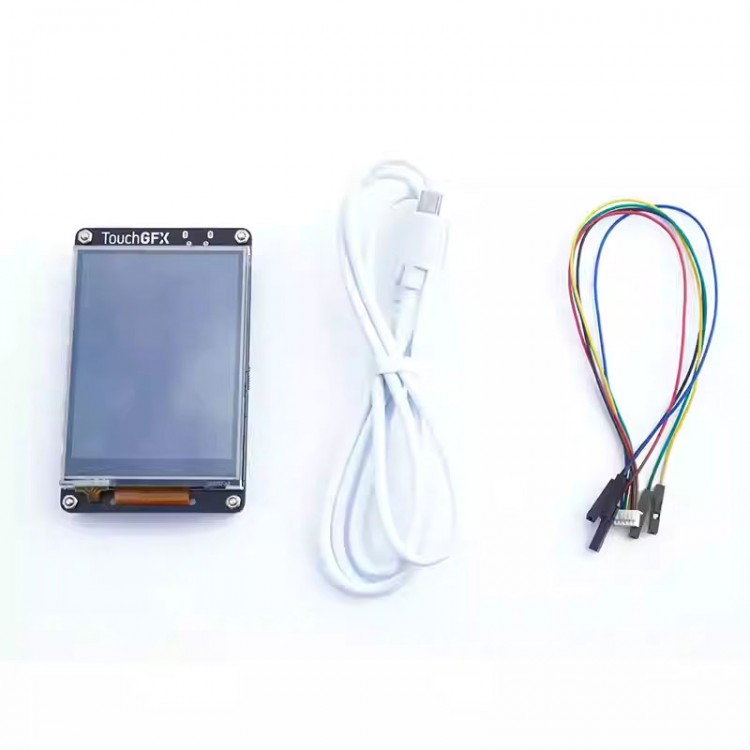

Package Included:
- 1 x Development board
- 1 x USB cable
- 1 x Bundle of adapter cables
Packaging Details:
- Weight: 0.2kg
Note:
- SD card and battery are not included in the package.
