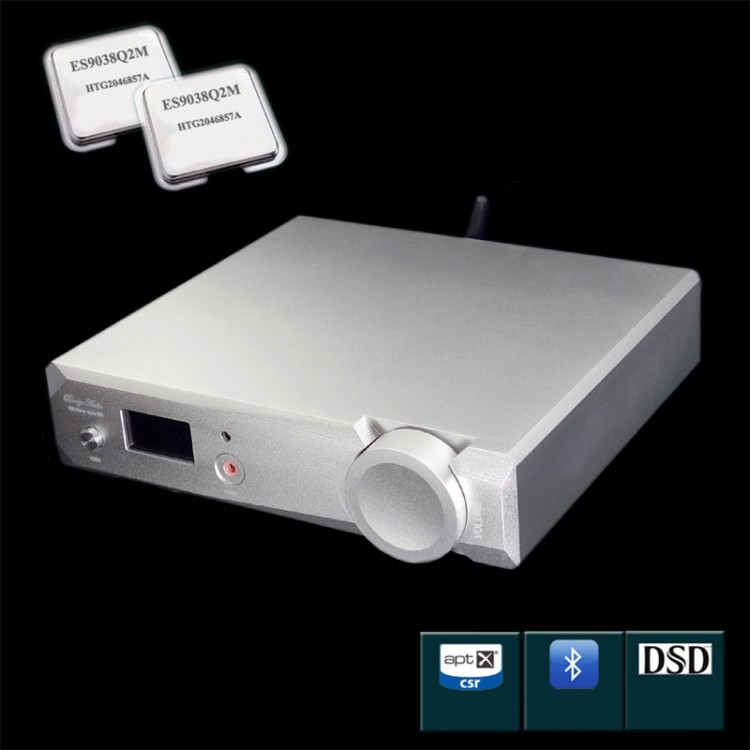

SU6 DAC Decoder ES9038Q2M *2 XMOS XU208 DSD256 32Bit 384Khz CSR8675 Bluetooth 5.0 Support Coaxial Optical USB Input

Availability: In stock, usually dispatched in 1 business day

  • Price:$273.92
  • Price in reward points: 2739 Reward Points: 27
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $268.44 $262.96 $254.75 $243.79 Contact US
Quantity:

SU6 DAC Decoder ES9038Q2M *2 XMOS XU208 DSD256 32Bit 384Khz CSR8675 Bluetooth 5.0 Support Coaxial Optical USB Input


Description
- Breeze audio ES9038Q2M *2 decoder /headphone amplifier  SU6
- COAX / OPT / USB inputs support DSD
- Bluetooth 5.0 supports Apt-X II / Apt-X HD
- XMOS XU208 USB interface , CPLD and independent AKM chip
- TPA6120 professional headphone amplifie
- Package weight: about 1.5 Kg
- Power supply: AC 220v or 110V( The default is 220v. If you need 110v, please leave a message.)
- Audio input: USB / COAX / OPT / Bluetooth 5.
- USB input support :  PCM: 44.1-384 kHz / 16-32 Bit; DSD64-DSD256 / DOP / Native
- COAX / OPT input support :  PCM: 44.1-192 kHz / 16-24 Bit; DSD64 / DOP
- Bluetooth input: Bluetooth 5.0 (Apt-X / Apt-X-HD)
- Audio output:  RCA / 3.5 mm jack
- THD+N: < 0.0005% @ 1 kHz / < 0.0006% @ 20-20 kHz
- SNR: > 123 Db @ 1 kHz
- Frequency response: 20-20 kHz / ±0.35 dB
- Headphone amp power: 700 mw * 2 @ 32 Ω / 156 mw * 2 @ 300Ω

Packing list:
- 1 x DAC
- 1 x Power Cable
- 1 x USB Cable (Excluding coaxial and fiber optic cables)
- 1 x Remote Control


    Install driver:

     XMOS 2.26 driver

    yun.baidu.com/share/link? Shareid=1612015194&uk=155645262?

    XMOS 2.19 driver (WIN10 need to install this driver)

    yun.baidu.com/share/link? Shareid=2911941438&uk=155645262?

    XMOS 3.34

    pan.baidu.com/s/1nvoa5TZ)

 If you can't download the driver, please me your email address.We will send



      the driver to you.

Instructions for use:

1. This machine has four inputs of optical, coaxial, bluetooth and USB, corresponding to the display: OPT, COAX, BLUE, USB.

2. The knob on the right side of the front panel is the code switch. Press to select the input signal and rotate to adjust the volume.

3. The headphone jack on the front of the panel and the RCA on the rear panel can output signals at the same time.

4. It is convenient to connect Bluetooth. The signal input is selected to the BLUE position. After the mobile phone turns on the Bluetooth and searches, and confirms that the BT Speaker is connected, the music can be played through Bluetooth. Mobile phones, all kinds of players are supported.

5, this decoder connects to the computer through the USB cable to do external USB sound card need to install the driver file in the computer, (the latest XMOS 3.34 public version driver http://pan.baidu.com/s/1nvoa5TZ), can be downloaded from here Unzip the computer. Before installing the driver, you need to connect the device and the computer with a USB cable and turn on the device. Then install the driver. After the driver is installed, set XMOS as the default sound card from the device manager. Or output from the XMOS from the player.
6, please contact us if you have any technical questions.
