SU9 Bluetooth 5.0 DAC Decoder Dual ES9038 DSD512 DAC Headphone Amplifier Full Functions For LDAC

SU9 Bluetooth 5.0 DAC Decoder Dual ES9038 DSD512 DAC Headphone Amplifier Full Functions For LDAC

Attention:
This product uses two ES9038Q2M chips, which are different from the general single-chip ES9038Q2M. Its analysis power, density, and separation have been improved a lot. It is more expensive. Bluetooth has also been upgraded to the newest Bluetooth solution QCC5125, which is more accurate than CSR8675. Support for APTX-HD and LDAC.

With digital decoding for XMOS or for direct engraving Italian Amanero, directly hard decode DSD64-DSD512!

Advantages:
- Aluminum shell
- Lossless audio format
- 192K 24BIT
- LINE OUT
- Compatible with PC multiple systems
- Optical fiber input
- Coaxial input
- Bluetooth 5.0
- High-end hard decoding chip

Features:
- Using a newer generation of Bluetooth 5.0 chip QCC5125 than CSR8675, support for LDAC, APTX-HD, apt x-adaptive (If you need a password to connect to Bluetooth, input 0123)
- Supports 192K 24BIT and DSD audio formats. Compatible with Bluetooth 4.0-5.0 input
- Support coaxial, optical, USB, Bluetooth input
- OLED low-power high-definition display, support remote control operation
- Dual ES9038Q2M boast greatly improved details and resolution than that of single-chip ES9038Q2M
- Built-in two ES9038Q2M decoder chips, with digital interface of daughter card
- High-speed and low-noise positive and negative power supply boost circuit, so that the op amp has enough voltage to make its dynamics and extension better
- ES9038Q2M is a high-performance 32-bit, stereo audio DIA converter, 32-bit super-current DAC architecture and time-domain jitter, ES9038Q2M provides a signal-to-noise ratio of up to 129dB, and the distortion rate is -120dB. A performance that can meet the most demanding audio enthusiasts, while supporting DSD512 transmission
- TL072 op amp with 4 FET inputs responsible for I/V conversion and LPF low-pass output. The level and details are better than those of NE5532

Specifications:
- Input port: coaxial, optical fiber, USB, Bluetooth
- Power adapter: DC 12V (1-2A)
- PCB size: 109 x 163 x 62mm
- Output interface: RCA output port x 1, 3.5 stereo headphone jack x 1
- Machine size: 130*42*108mm (without sizes of terminals or knobs)

Package Included:

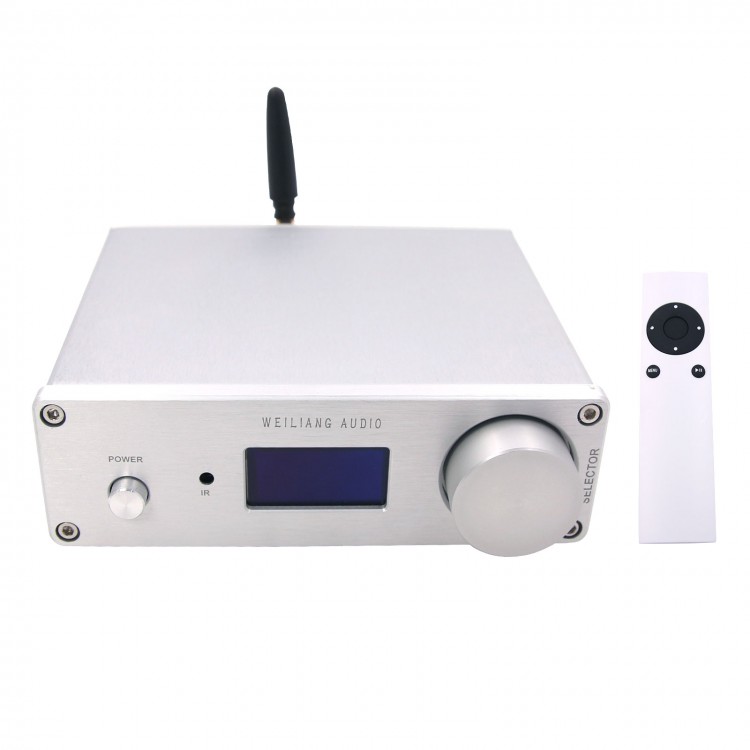

- 1 x Bluetooth DAC with Antenna
- 1 x Power Adapter 12V 2A
- 1 x Remote Control
- 1 x USB Cable (only for USB version)

Note:
- It is assembled and with an USB port.

Drive:
Link for https://amanero.com/drivers.htm

User Manual:
https://pan.baidu.com/s/1qYC_I1ta5UWAkeVieTN99Q
Password: awuq

Driver Installation and Setup Tutorial for FOOBAR:
Link: https://pan.baidu.com/s/1uUn-AAqjN9kWxfEEx-_zzw
Password: 2333
