SUCA AUDIO BLAD-B5 Bluetooth Receiver Hifi Audio Decoder DAC w/ 2.4" Screen for Amplifiers Speakers

SUCA AUDIO BLAD-B5 Bluetooth Receiver Hifi Audio Decoder DAC w/ 2.4" Screen for Amplifiers Speakers

Features:
- Bluetooth receiver with HiFi sound quality: rejects noise/current sound/stuttering/delay.
- The Bluetooth 5.1 receiver can display lyrics: Bluetooth 5.1 chip supports for LDAC/aptX-Adaptive/aptX HD/AAC/SBC and other audio codecs. It supports up to 96kHz/24bit audio transmission, allowing you to get high-quality audio and a music experience that goes beyond CD level.
- QCC5125 chip: It supports for LDAC HD decoding technology and accurately reproduces the full audio bandwidth. 990kbps high transmission rate, 96KHz high sampling rate and high signal-to-noise ratio (≥98dB). It restores the details of the music transparently and provides HIFI sound quality.
- OPA1656 op amp chip: OPA1656 is an op amp for Burr-Brown. With ultra-low noise, low distortion, and FET inputs, it is specifically designed for audio and industrial applications that require signal fidelity.
- High-definition automotive-grade FM radio chip: Enhanced FM radio antenna and master tuning make the sound beautiful. The automotive-grade radio chip has stable working performance, higher reliability and long service life.

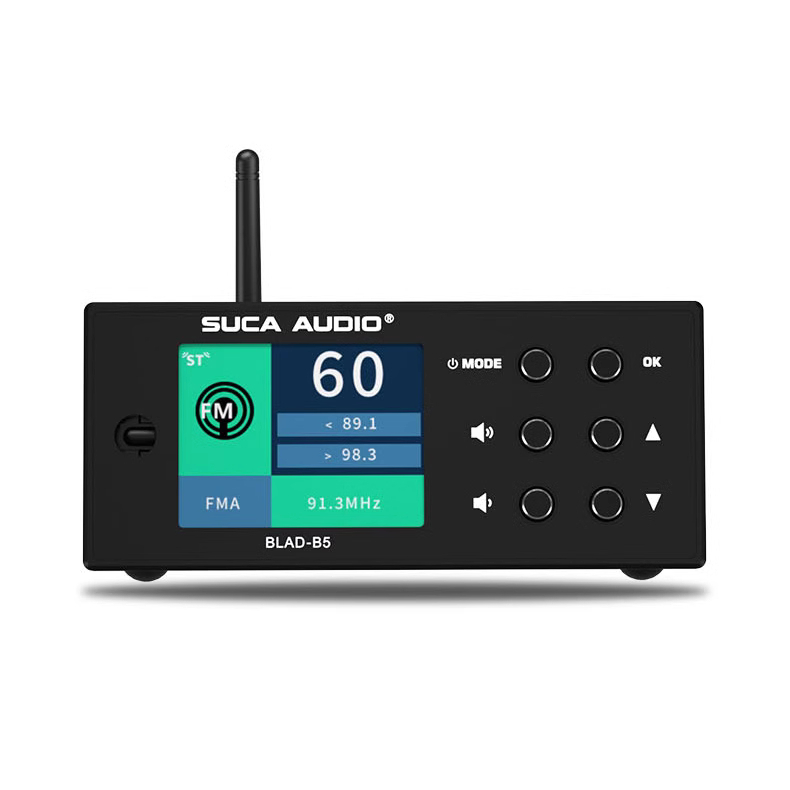

- 2.4" color display: The large screen can display the information intuitively, so that users can get the working status.

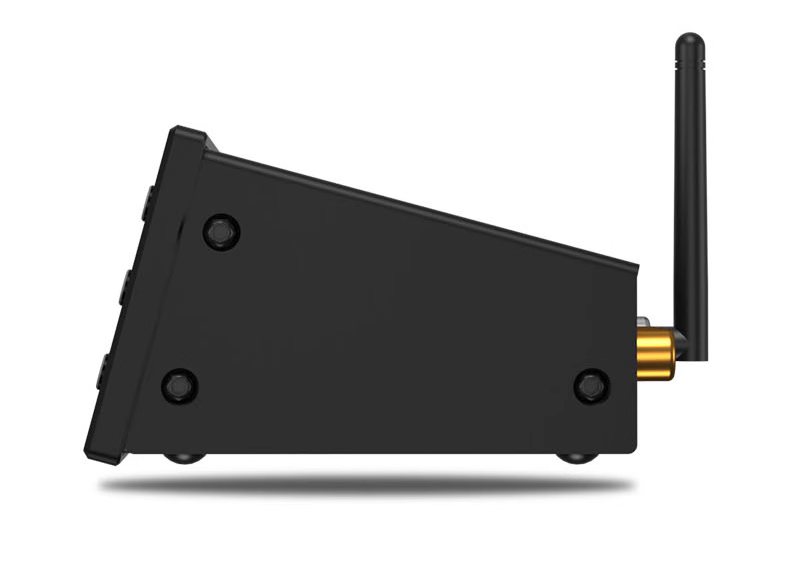

- The display angle is tilted 30 degrees for a more ergonomic design: Sitting in front of the table, you can observe the information more intuitively.
- CS8406 conversion IC: Using the high-performance CS8406 digital audio conversion IC, it converts Bluetooth signals into high-quality optical/coaxial signal output.

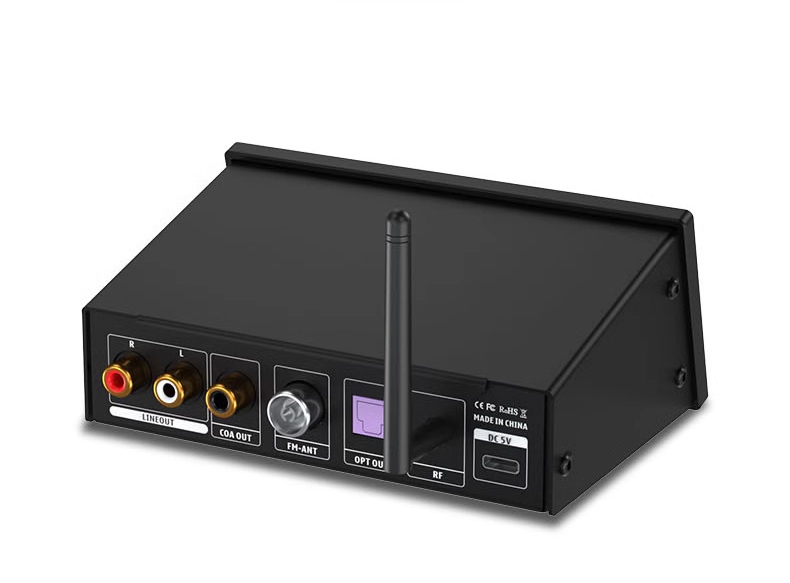

- Wake up your decoder amplifier/vintage speakers: BLAD-B5 has a high-quality coaxial/optical/LINE OUT analog output. Whether your amplifier has decoding function or not, it can be connected to your amplifier and make your amplifier/speaker a wireless product. Through Bluetooth, you can also enjoy HIFI-like sound.
- Connect your phone to an active speaker: Use an audio cable to connect an ordinary speaker to BLAD-B5, and your ordinary speaker can be turned into a Bluetooth speaker. And you can enjoy wireless music, movies, games and news.
- 20-meter stable transmission and strong signal: no dead angle in the connection, 20-meter transmission sound quality, ultra-low latency, and stable signal.
- High-strength classic chassis: The black shell with a high-end atmosphere. External detachable high-gain Bluetooth antenna ensures stable signal and loss-free transmission.
- IR remote control for easy operation: It is soft to touch the silicone panel. Supports 10-meter range. The remote control supports various functional operations.
- ES9038 decoder chip: Using the high-performance ES9038 decoder, it can provide high signal-to-noise ratio and low distortion analog signals.
- Silicone anti-slip pads: 4 silicone anti-slip pads at the bottom make it shockproof, moisture-insulating, and insulating.

Three Steps for Bluetooth Connection:
Step 1: Press the MODE (ON) button on the main unit or the "SELECT" button on the remote control to switch until the Bluetooth icon is flashing.
Step 2: Turn on Bluetooth on your phone and search for "SUCA AUDIO".
Step 3: Once the pairing is successful, you can enjoy your music.

Specifications:
- Model number: BLAD-B5
- Bluetooth version: BT5.1
- Distortion: 0.07%
- Signal-to-noise ratio: ≥98dB
- Operating voltage: DC 5V
- Input sensitivity: 0dBFS
- Rated output amplitude: 2.5V
- Frequency response: 20Hz-20KHz (±1dB)

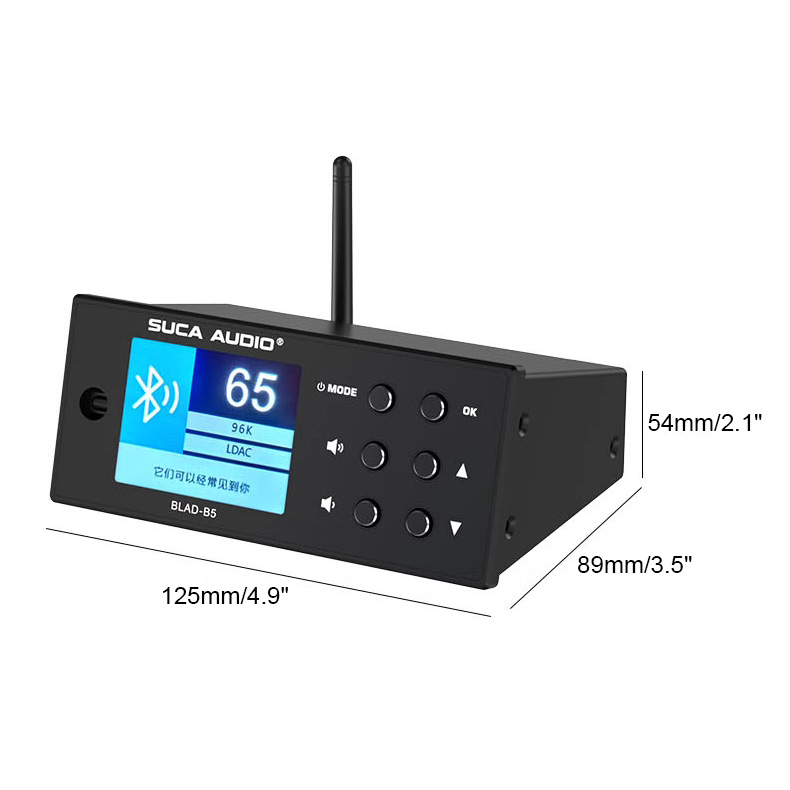

- Main unit size: 125mm x 89mm x 54mm/4.9" x 3.5" x 2.1" (WxDxH)

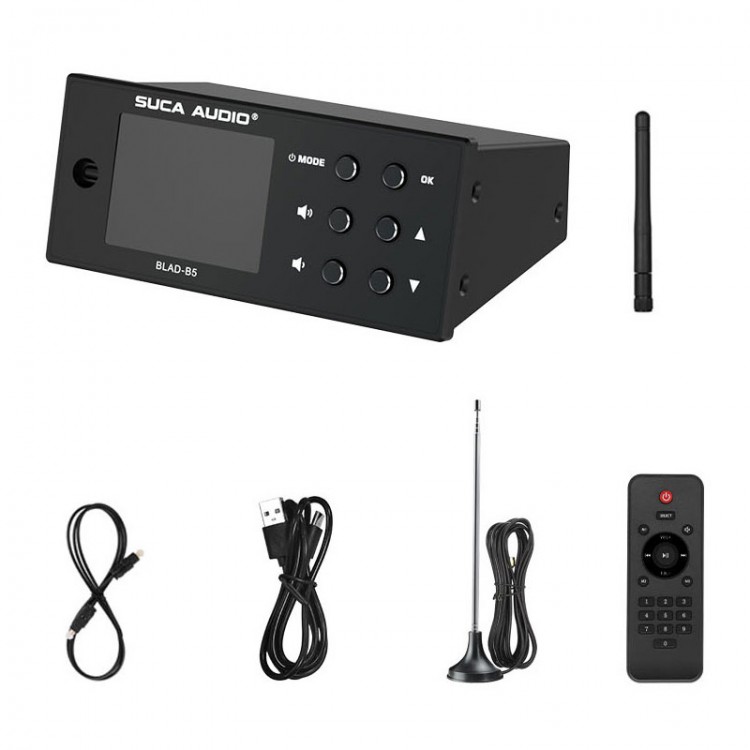

Package Included:
- 1 x BLAD-B5 main unit
- 1 x Bluetooth antenna
- 1 x Fiber optic cable
- 1 x DC 5V data cable
- 1 x 6-section antenna with 10-meter cable
- 1 x Remote control

Packaging Details:
- Weight: 0.85kg
