| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $176.96 | $173.35 | $167.93 | $160.71 | Contact US |
SUCA AUDIO DAC-Q11 Dual-core Audio Decoder ESS9038+AK4493 Hifi DAC with Two OLED Screens for DSD256
Features:
DAC-Q11 Hifi DAC Decoder
- DSD hardware decoding: DSD256
- THD: 0.0003%
- SNR: ≥117dB
Two Decoding Chips
With decoder chips AK4493+ESS9038, it can provide a higher SNR and better audio separation. With high sampling accuracy and low distortion, it can reproduce the details of high-quality audio sources to the greatest extent.
High-end DAC with PC-USB
The DAC decoder is combined with PC-USB. USB supports sampling rate DSD256/PCM 384KHz at 32bit.
Ambient Light Windows Made of Tempered Glass
The eye-catching ambient lighting design allows you to listen to every beautiful song.
Exquisite Aluminum Alloy Shell
It uses CNC integrated molding and anodizing process to create an aluminum alloy body with fine metal blasting. The appearance of the product is elegant.

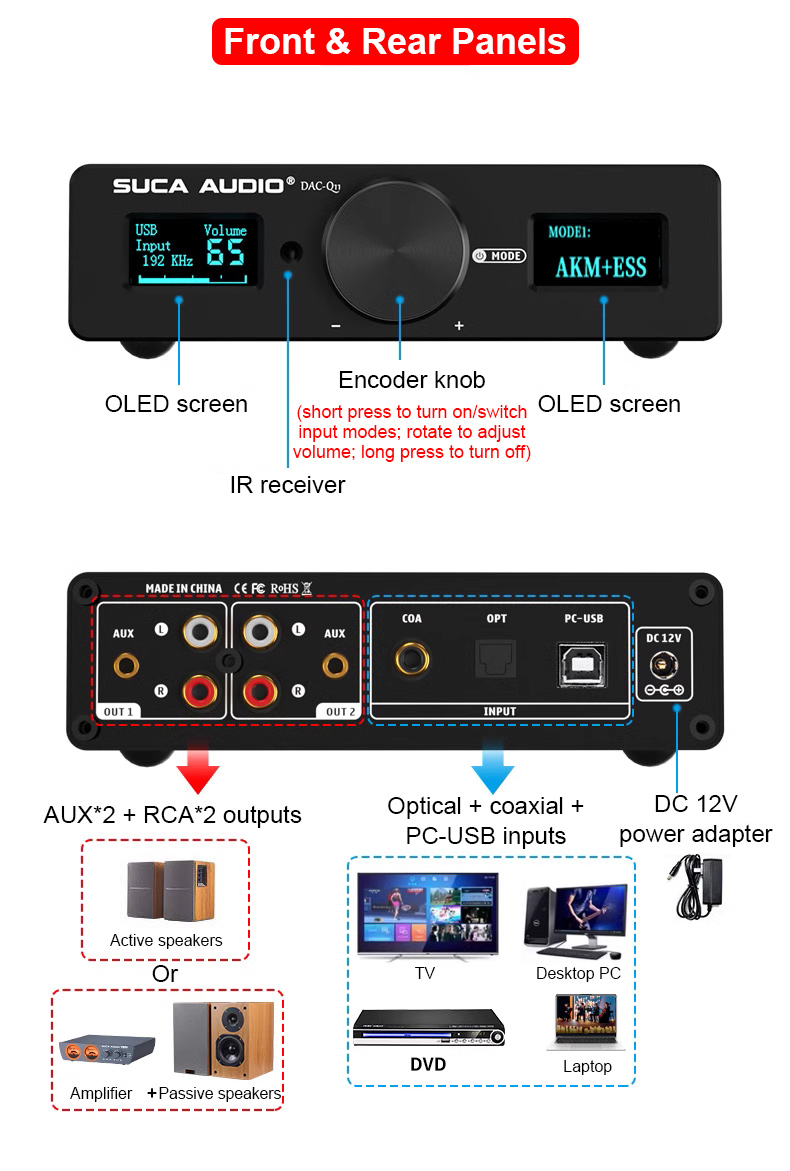

3 Inputs & 4 Outputs
- Inputs: Optical, coaxial and PC-USB inputs
- Outputs: AUX*2+RCA*2 outputs
Big Volume Knob for Precise Tuning
The large volume knob can meet the needs of more subtle and precise volume control.
Two High-resolution OLED Displays
The OLED screens can display channel, sampling rate, volume, chip and the like in real time, making it convenient to use.

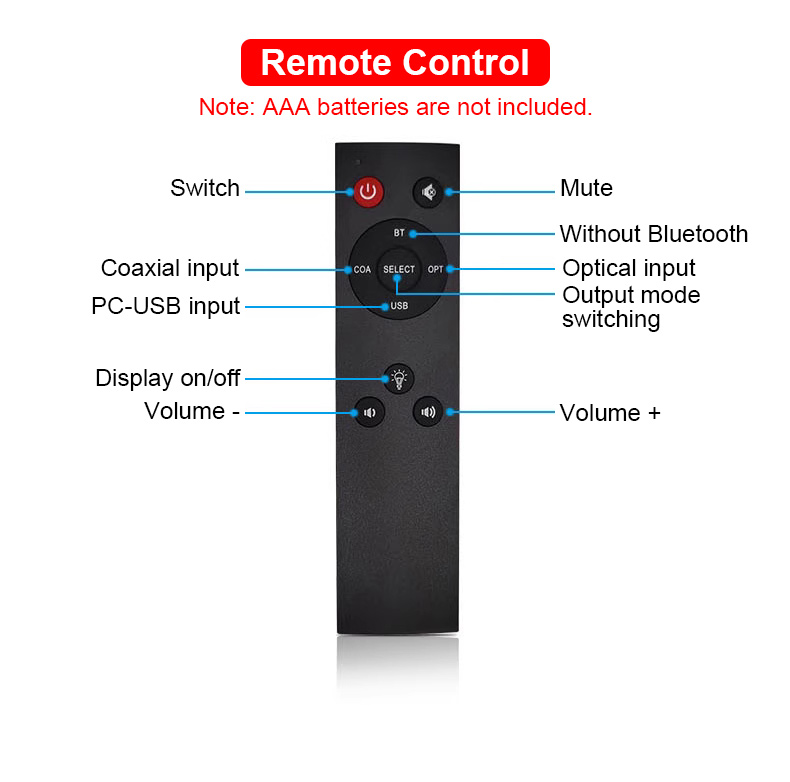

Multi-function Remote Control
- The high-quality remote control makes switching easy, so you can feel more comfortable in your audio experience and focus on the joy of your music.
- The remote control has a working range of 10 meters.
Connect the Fiber/Coaxial Interface
It allows you to enjoy the cinema at home, supporting optical/coaxial input.
Specifications:
- Product name: DAC-Q11
- Frequency response: 20Hz-20KHz (±0.3dB)
- Rated output level: 1.8V for AK4493; 2V for ESS9038
- Working voltage: DC12V
- Maximum sampling rate supported by PC-USB: PCM 384KHz/32Bit; DSD256
- THD + noise: 0.0003%
- SNR: ≥117dB
- Maximum sampling rate supported by optic/coaxial input: PCM 192KHz/24Bit

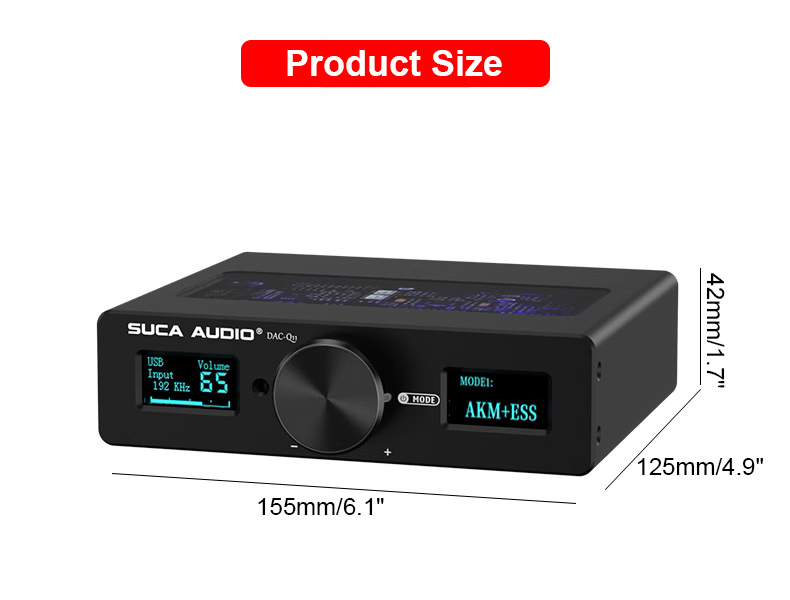

- Main unit size: 155mm x 125mm x 42mm/6.1" x 4.9" x 1.7" (LxWxH)
- PC-USB supports operating system: For Windows 7/8/10/11/MAC/Linux
Package Included:
- 1 x Main unit
- 1 x USB cable
- 1 x Fiber optic cable
- 1 x Remote control
- 1 x DC 12V power adapter
- 1 x User manual/product quality certificate
Packaging Details:
- Weight: 1.1kg
