SUCA AUDIO EA7 7-Band Preamp Equalizer EQ for Home Power Amplifiers Speakers Decoders & Audio Mixers

SUCA AUDIO EA7 7-Band Preamp Equalizer EQ for Home Power Amplifiers Speakers Decoders & Audio Mixers

Features:
Home Pre-amp Equalizer
* Dual balanced single-ended interface
* ±6dB gain
* Knobs are positioned at the midpoint

7-band Knob Midpoint Positioning
* 7 independent equalizations
* The knobs are positioned at the midpoint
* With independent and rich frequency band control (64Hz/125Hz/250Hz/500Hz/2KHz/4KHz/8KHz)

Balanced XLR+RCA Input and Output
With XLR and RCA inputs and outputs, EA7 can reproduce high-quality audio amplifiers and active speakers. It has superior separation, resolution, sound field and clean background. It also comes with balance control to compensate for the left and right channels of all outputs, preventing the sound field from being positioned off-center.

One-key Bypass Function
By turning off the power switch, the input and output signals can be bypassed directly, allowing for an unprocessed, original sound output.

High Performance
The signal-to-noise ratio of the EA7 is ≥104dB. The frequency response is in the range of 20Hz-20KHz, and it has a distortion level as low as 0.003%, ensuring a high-fidelity output of the audio signal.

Widely Used
It can be used to watch movies, listen to music, play games, etc.

Craftsmanship and Sound Empowerment
We strive for good sound quality. Professional appearance design, anodizing CNC process and exquisite craftsmanship of aluminum alloy shell create an elegant appearance.

Specifications:
* Model number: EA7
* Input sensitivity: RCA: 0.775V; XLR: 1.5V
* Rated output amplitude: RCA: 1.5V; XLR: 3V
* Frequency response: 20Hz-20kHz (±0.2dB)
* Frequency band: 64Hz/125Hz/250Hz/500Hz/2KHz/4KHz /8KHz
* Distortion: 0.003%
* Operating voltage: DC 12V
* Signal-to-noise ratio: ≥104dB
* Frequency adjustment range: ±6dB
* Product size: 126mm x 170mm x 42mm/5" x 6.7" x 1.7" (LxWxH)

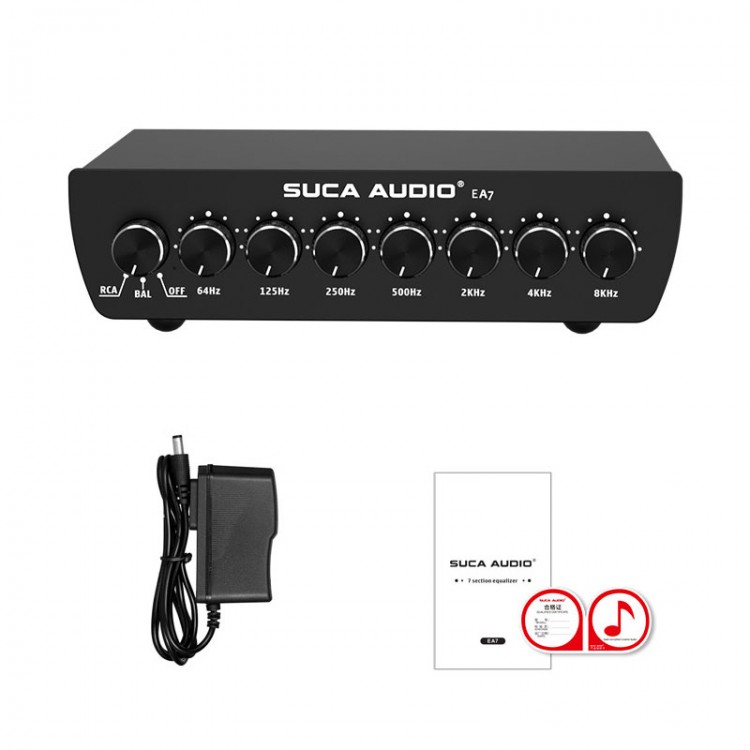

Package Included:
* 1 x EA7 main unit
* 1 x DC 12V power adapter
* 1 x User manual/product quality certificate

Packaging Details:
* Weight: 1.1kg
* Packaging size: 310mm x 240mm x 70mm
