Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $449.36 | $440.19 | $426.43 | $408.09 | Contact US |

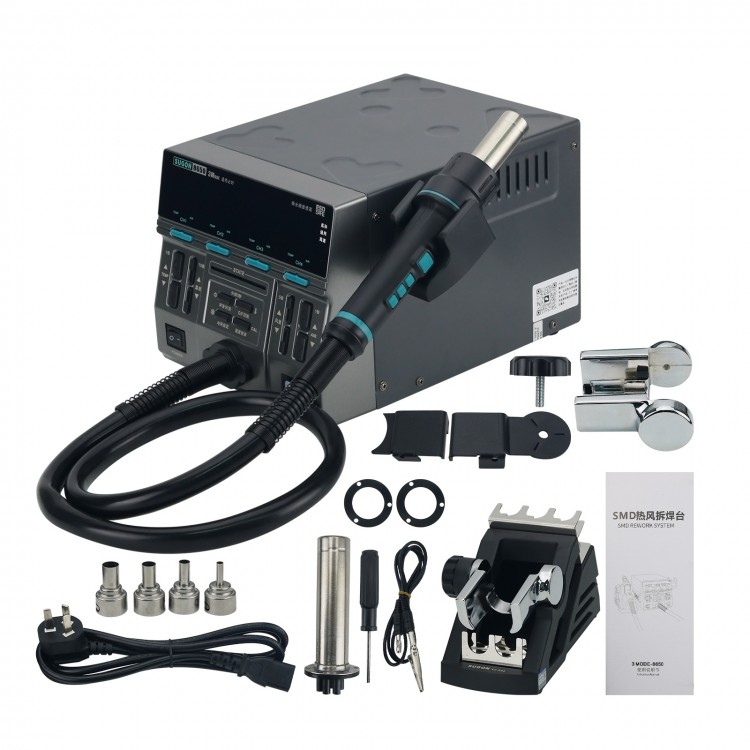

SUGON 8650 1300W Hot Air Station BGA Rework Station with 3 Modes Suitable for BGA PCB Chip Repair
Features:
- Multiple nozzles: 8 nozzles to meet a variety of maintenance needs. Four nozzles are for straight air, two for spiral air and the other two for oblique air.
- Temperature range and air volume: Temperature 100-550°C/212-1022°F and air volume 0-200.
- 3 temperature rise modes: The hot air station is designed with gentle, general and rapid modes. According to different usage habits and proficiency, different heating modes can be selected.
- 4 memory storage channels: The temperature and air volume of each channel can be set independently. When you are selecting different channels, there will be indicator lights below.
- Aluminum alloy bracket: The angle of the bracket is adjustable. With a nozzle bracket, it is quick to replace nozzles and there is no need to use other tools to quickly disassemble the nozzles.
- Cold air and hot air conversion: The detachable handle is designed with four buttons on the front side, which can control and select four memory storage channels. Short press the back button to switch cold air/hot air output, and long press to enter the key lock mode.
- Display screen: The screen can display four sets of quick-adjustment parameters and the parameters currently in use.
- Quick adjustment buttons: The rework station with 10X temperature adjustment button and 5X air volume adjustment button.
- Silicone nozzle organizer: The left side of the main unit is designed with silicone organizers to hold 5 nozzles.
- Automatic sleep: Parameters can be adjusted in sleep state.
- Multiple functions: Including temperature calibration, °C/°F switching and buzzer switch.
Specifications:
- Maximum power: 1300W
- Rated voltage: AC 220V / AC 110V
- Temperature range: 100-550°C/212-1022°F
- Air volume range: 1-200L/min
- N.W.: 7.85KG/17.3LB
- G.W.: 10KG/22LB
Package Included:
- 1 x SUGON 8650
- 1 x Adjustable bracket
- 4 x Nozzles for straight air (#5, #7, #10 & #12)
- 2 x Nozzles for spiral air (#8 & #10)
- 2 x Oblique nozzles (#7 & #10)
