Sunhans Mobile Phone Signal Booster 1800MHz 4G Repeater Amplifier Compatible with 2G 3G

Sunhans Mobile Phone Signal Booster 1800MHz 4G Repeater Amplifier Compatible with 2G 3G

Description:
Sunhans cellphone signal booster is made with supered technology, with all-metal cover, you can use the device without worrying about the process of heat and impact performance, because of the superior heat dissipation function; It can adequately protect the health of you and your family, because of the superior shielding function.

Product Specifications:
- Up link frequency: 1710 – 1785MHz
- Down link frequency: 1805 – 1880MHz
- Model: SH-DA1800-M2
- P/N: DA1800M2014
- Barcode: 6958917600797
- Input power: -70 ~ -40dBm
- Up link gain: 62dB
- Down link gain: 65dB
- Max output power: 17dBm
- Impedance: 50 Ohms
- Isolation: >70dB
- Connector type: N-K female
- Power supply: 5V/2A DC, 100~240V
- Compact design: Indoor use
- Repeater size: 13.8 x 6.1 x 2.1cm

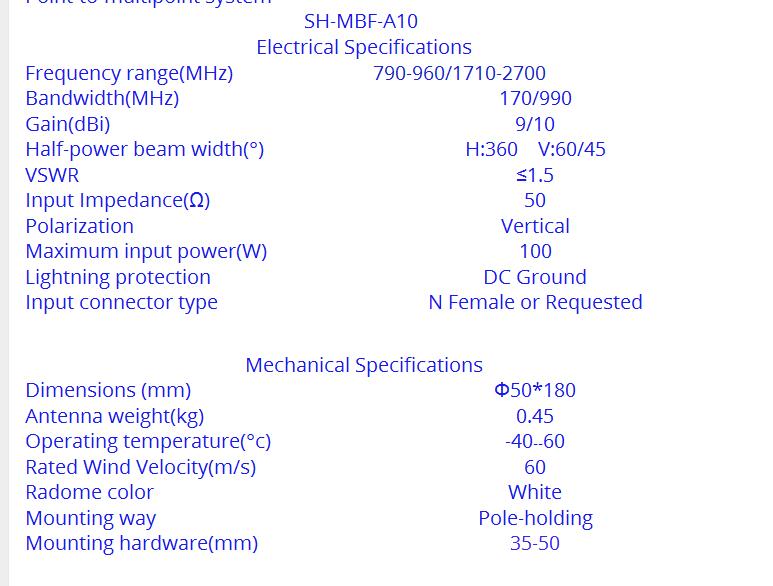

2G/3G/4G Indoor antenna parameters:
- 790-2700MHz Omnidirectional Fiberglass Antenna
- Model NO.: SH-MBF-A10

Feature:
- Exquisite appearance
- Good impact resistance,waterproofing and anticorrosion ability
- Full day working
- Optimized dimension
- High gain,low standing Wave,strong anti-interference ability

Application:
- GSM/CDMA/PCS/3G/4G/WLAN system
- Point-to-multipoint system

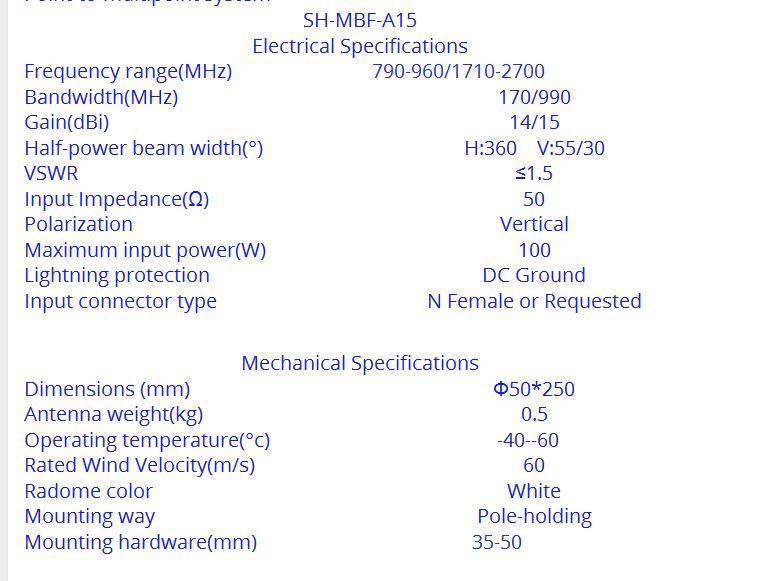

2G/3G/4G Outdoor antenna parameters:
- 790-2700MHz Omnidirectional Fiberglass Antenna
- Model NO.: SH-MBF-A15

Feature:
- Exquisite appearance
- Good impact resistance,waterproofing and anticorrosion ability
- Full day working
- Optimized dimension
- High gain,low standing wave,strong anti-interference ability

Application:
- GSM/CDMA/PCS/3G/4G/WLAN system
- Point-to-multipoint system

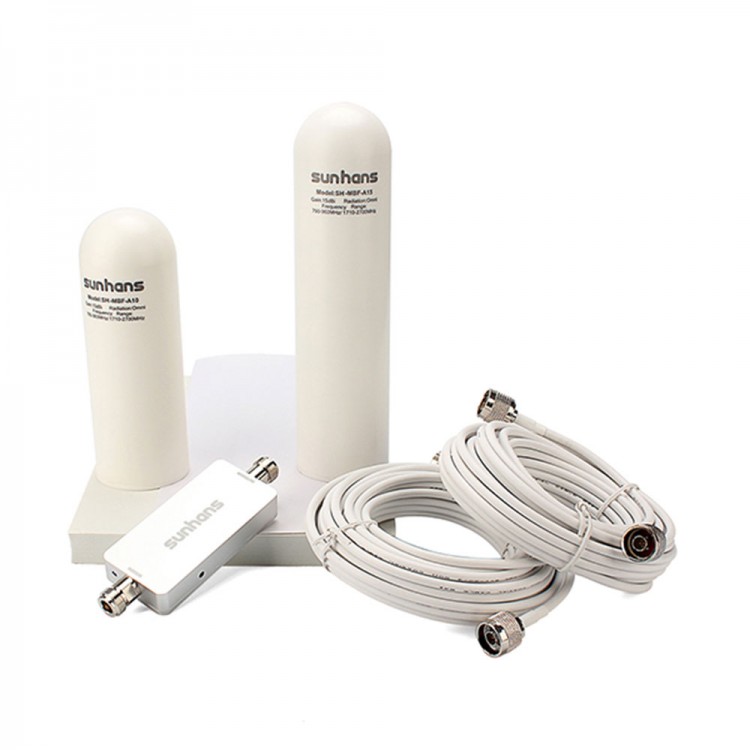

Package contents:
- 1 x SH-DA1800-M2
- 2 x Coaxial cable (10m)
- 1 x 10dB indoor antenna
- 1 x 15dB outdoor antenna
- 1 x Power supply
- 1 x User manual
