Sunhans Mobile Phone Signal Booster 800MHz 850MHz 4G Repeater Amplifier SH-C800-M2

Sunhans Mobile Phone Signal Booster 800MHz 850MHz 4G Repeater Amplifier SH-C800-M2

Description:
Sunhans cellphone signal booster is made with supered technology, with all-metal cover, you can use the device without worrying about the process of heat and impact performance, because of the superior heat dissipation function; It can adequately protect the health of you and your family, because of the superior shielding function.

Product Specifications:
- Up link frequency: 824 - 849MHz
- Down link frequency: 869 - 894MHz
- Model: SH-C800-M2
- Input power: -70 ~ -40dBm
- Up link gain: 62dB
- Down link gain: 65dB
- Max output power: 17dBm
- Impedance: 50 Ohms
- Isolation: >70dB
- Connector type: N-K  female
- Power supply: 5V/2A DC, 100~240V
- Compact design: Indoor use
- Repeater size: 13.8 x 4.7 x 2.1cm
- Repeater weight: 220g

Indoor antenna:
Feature:
- Exquisite appearance
- Good impact resistance,waterproofing and anticorrosion ability
- Full day working
- Optimized dimension
- High gain,low standing Wave,strong anti-interference ability

Application:
- GSM/CDMA/PCS/3G/4G/WLAN system
- Point-to-multipoint system

Specifications:
- Frequency Range:790~960/ 1710-2700MHz
- Bandwidth: 170/990

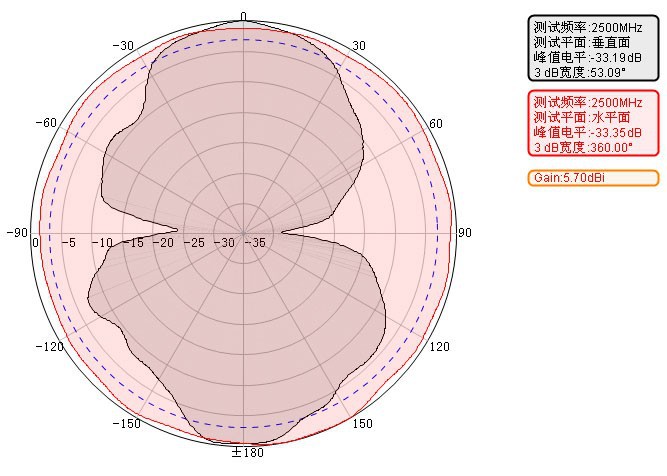

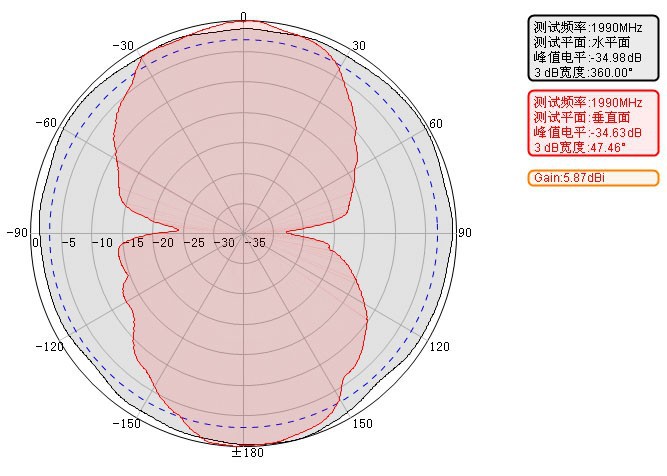

- Half-power beam width( degree ) H:360    V:60/45
- VSWR: ≤1.5
- Polarization Type:Vertical
- Max. Input Power:100W
- Input Impedance:50 Ohms
- Connector Type:N Female
- Lightning protection: DC Ground
- Dimensions (mm):Φ50*180
- Antenna weight:0.45kg
- Rated Wind Velocity(m/s): 60
- Working temperature: -40~60 degree C
- Color: White
- Mounting way: Pole-holding
- Mounting hardware(mm): 35-50

Outdoor antenna:
Feature:
- Exquisite appearance
- Good impact resistance,waterproofing and anticorrosion ability
- Full day working
- Optimized dimension
- High gain,low standing wave,strong anti-interference ability

Application:
- GSM/CDMA/PCS/3G/4G/WLAN system
- Point-to-multipoint system
- SH-MBF-A15

Electrical Specifications
- Frequency range(MHz): 790-960/1710-2700
- Bandwidth(MHz):  170/990
- Gain(dBi)    : 14/15

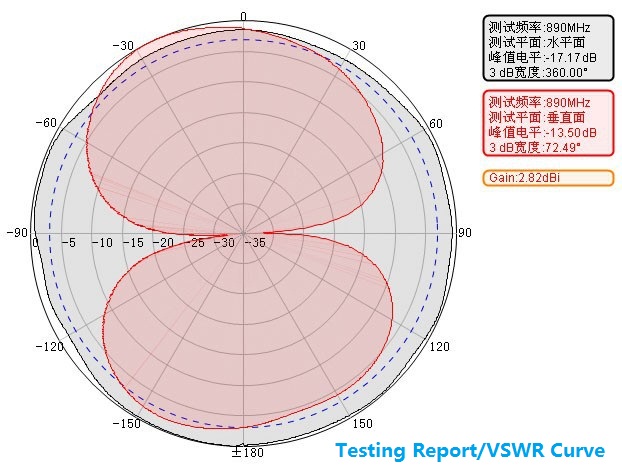

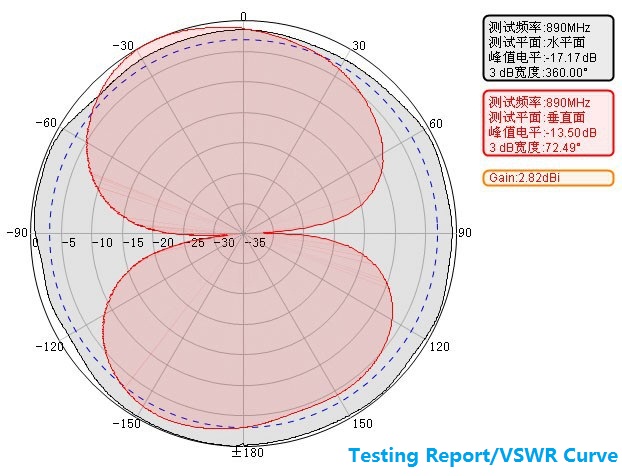

- Half-power beam width(degree): H:360    V:55/30

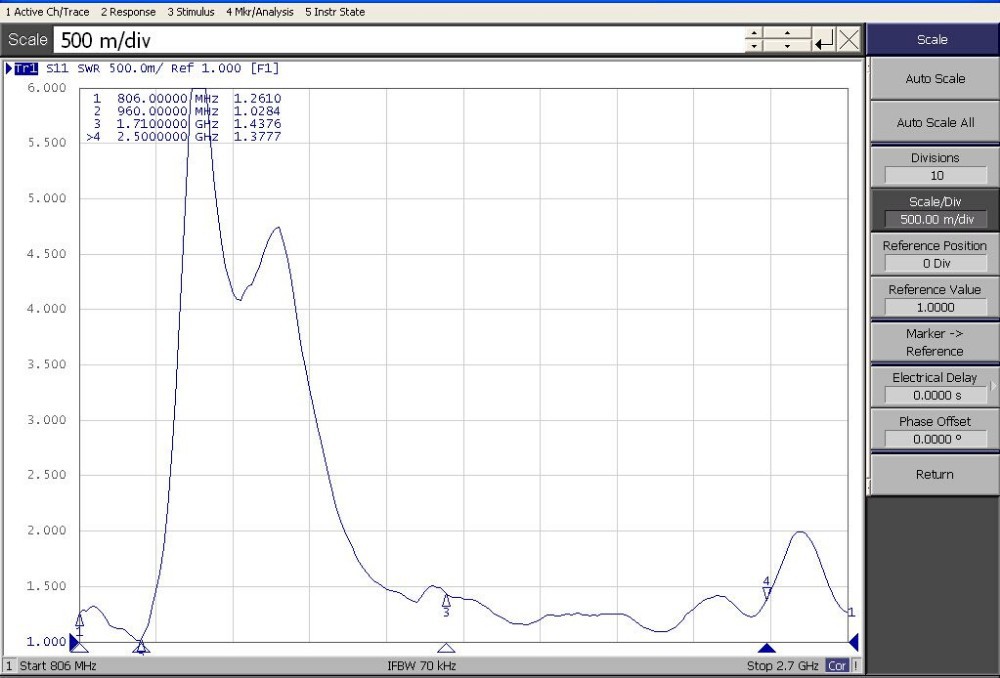

- VSWR: ≤1.5
- Input Impedance(Ω): 50
- Polarization: Vertical
- Maximum input power(W): 100
- Lightning protection: DC Ground
- Input connector type: N Female
- Dimensions (mm): Φ50*250
- Antenna weight(kg): 0.5
- Operating temperature:  -40--60 degree C
- Rated Wind Velocity(m/s): 60
- Radome color: White
- Mounting way: Pole-holding
- Mounting hardware(mm) : 35-50

Installation Steps

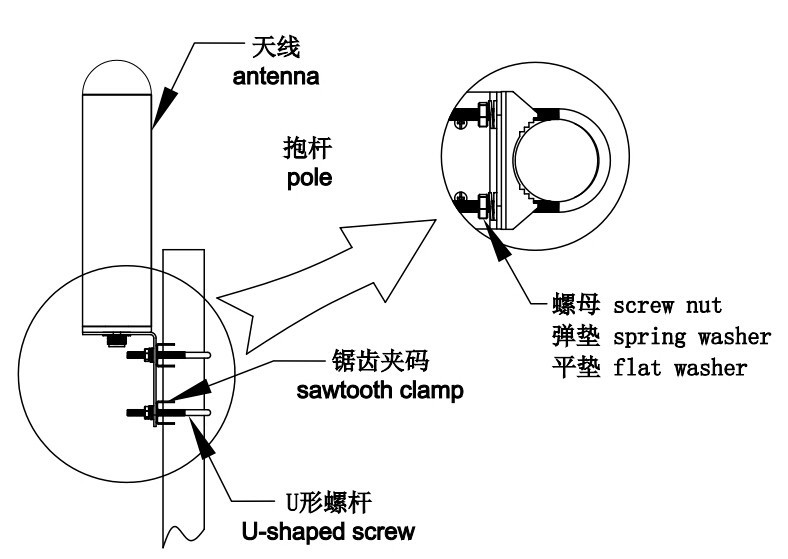

1. Place the M6 U-shape screw through the holes on the clamps to mount the antenna to the pole whose outer diameter is 35-50mm.Then put on the flat washer,the spring washer and twist all the nuts.

2.There should be at least three meters between the ground or floor and the antenna above.No huge building or metal object or any other obstacle or shelter nearby.

3.Adjust the mounting height of the antenna to the proper position to receive the best signal,then seal all the connections.

4.Please pay attention to lightning protection.

Package contents:
- 1 x SH-C800-M2 Signal Booster
- 2 x Coaxial cable (10m)
- 1 x 8dBi antenna
- 1 x 12dBi antenna
- 1 x Power supply
- 1 x User manual
