Sunhans Signal Booster 3G 900-2100MHz Repeater Dual Band Amplifier Fiberglass Antenna SH-G900W2100-D2
900MHz
- Up Link Frequency: 890 - 915MHz
- Down Link Frequency: 935 - 960MHz
2100MHz
- Up Link Frequency: 1920 - 1980MHz
- Down Link Frequency: 2110 - 2170MHz
Specifications:
- Model: SH-G900W2100-D2
- Power:-70~-40 dBm
- Up Link Gain: 62dB
- Down Link Gain: 65dB
- Max Output Power: +17 dBm for up link/+17 dBm for Downlink
- Impedance: 50Ohm
- Isolation: 70dB
- Power Supply:AC 100/240V DC 5V/2A
- Compact Design: Indoor Use
- Item Weight: 423g
- Item Dimension: 160 x 84 x 21 mm
- Certification: CE FCC RoHs
Sunhans 10dBi Outdoor Antenna
- Model: SH-MBF-A10 ;
- Frequency Range:800~2700MHz
- Gain:10dBi ; VSWR:≤1.5
- Polarization Type:Vertical
- Max. Input Power:100W
- Input Impedance:50 Ohms
- Connector Type:N Female or Requested
- Cable Length:30cm
- Dimensions (mm):Φ50*180
- Antenna weight:0.352kg
Sunhans 15dBi Outdoor Antenna
- Model: SH-MBF-A15
- Frequency Range:800~2700MHz
- Gain:15dBi ; VSWR:≤1.5
- Polarization Type:Vertical
- Max. Input Power:100W
- Input Impedance:50 Ohms
- Connector Type:N Female or Requested
- Cable Length:30cm
- Dimensions (mm):Φ50*250
- Antenna weight:0.382kg

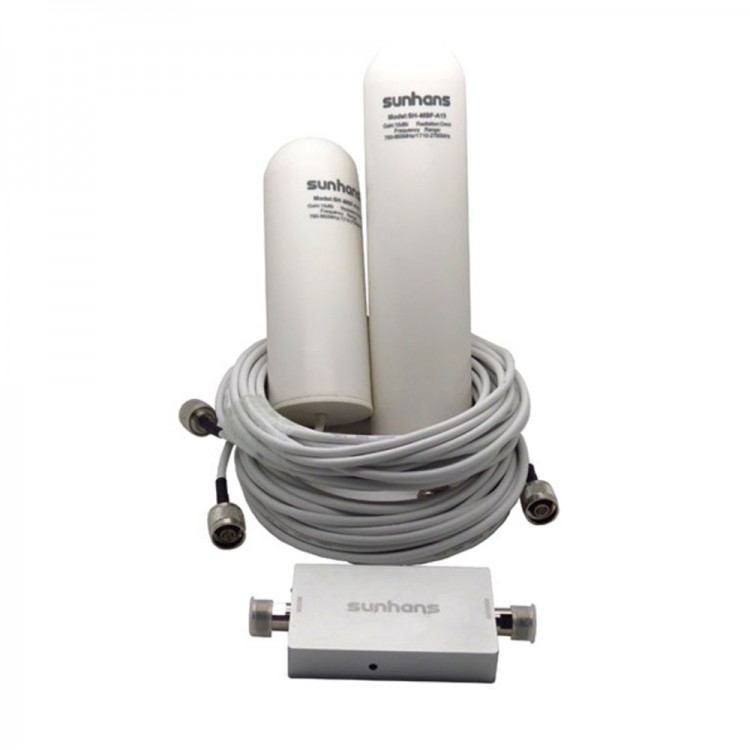

Package list:
- 1x 3G SH-G900W2100-D2 repeater
- 1x 3G 10dBi indoor antenna
- 1x 3G 15dBi outdoor antenna
- 2x 10m Cable with connector
- 1x Power adapter
- 1x User Manual
