SUNKKO D1524 Lithium Battery Equalizer and Analyzer 5-inch Color LCD Touch Screen Support Bluetooth Control

SUNKKO D1524 Lithium Battery Equalizer and Analyzer 5-inch Color LCD Touch Screen Support Bluetooth Control

Features:
- 5-inch color LCD touch screen: Microcomputer control, large LCD display. Multiple display parameters switchable. Balanced parameters are clear at a glance.
- Mobile Bluetooth APP: Select Bluetooth and connect it to the machine, then open the above applet to control and monitor the machine from your phone.
- Charge balance mode: Equilibrium use with battery charger, charge to setting voltage.
- Discharge balance mode: Discharge to setting voltage, accomplish balance voltage purpose.
- The accuracy balance effect: 0.001V; balance and repair the voltage difference of high-capacity battery pack and small battery pack. The equalizing voltage difference can reach 0.001V.

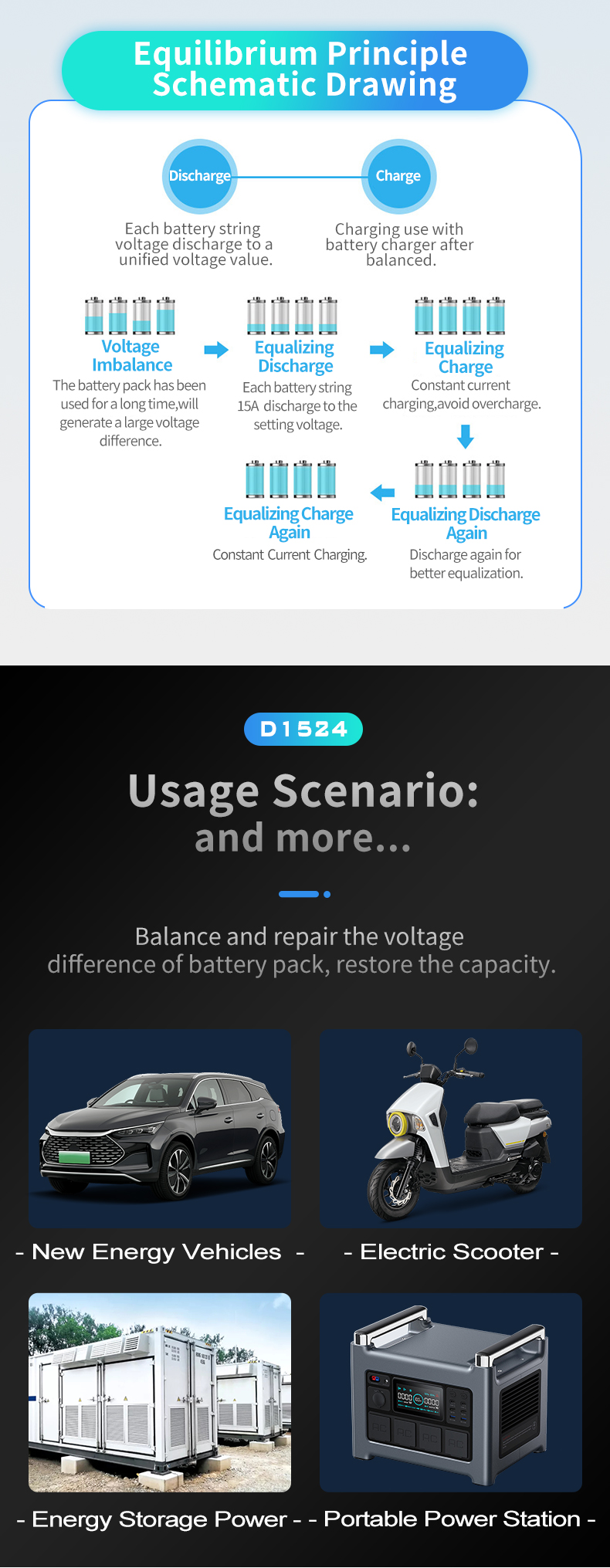

Working modes:
- Discharge: each battery string voltage discharge to a unified voltage value.
- Charge: charging use with battery charger after balanced.
- Battery voltage imbalance: the battery pack has been used for a long time, will generate a large voltage difference.
- Equalizing discharge: each battery string 15A discharge to the setting voltage.
- Equalizing charge: constant current charging, avoid overcharge.
- Equalizing charge again: constant current charging
- Equalizing discharge again: discharge again for better equalization.

Application:
- Balance and repair the voltage difference of battery pack, restore the capacity.
- New energy vehicles, electric scooter, energy storage power, portable power station, mobile Bluetooth APP + touch panel control system, etc.

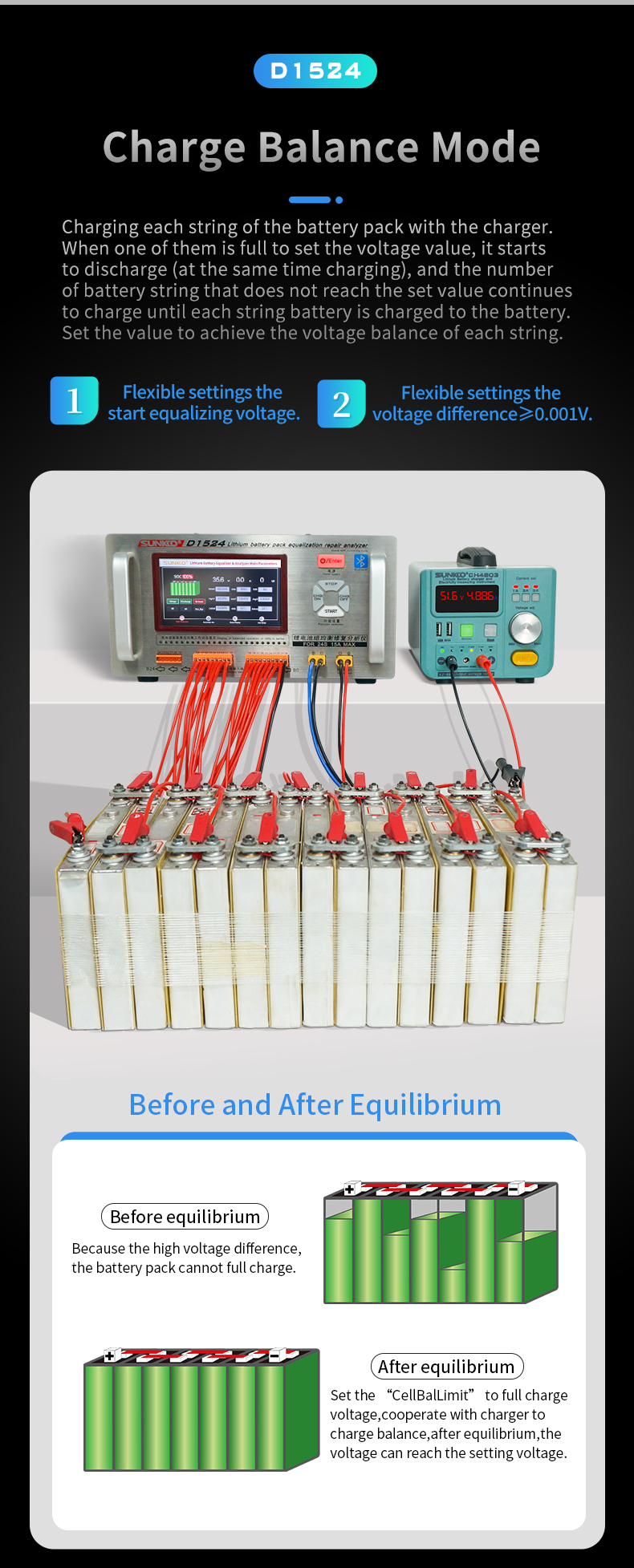

Charge balance mode:

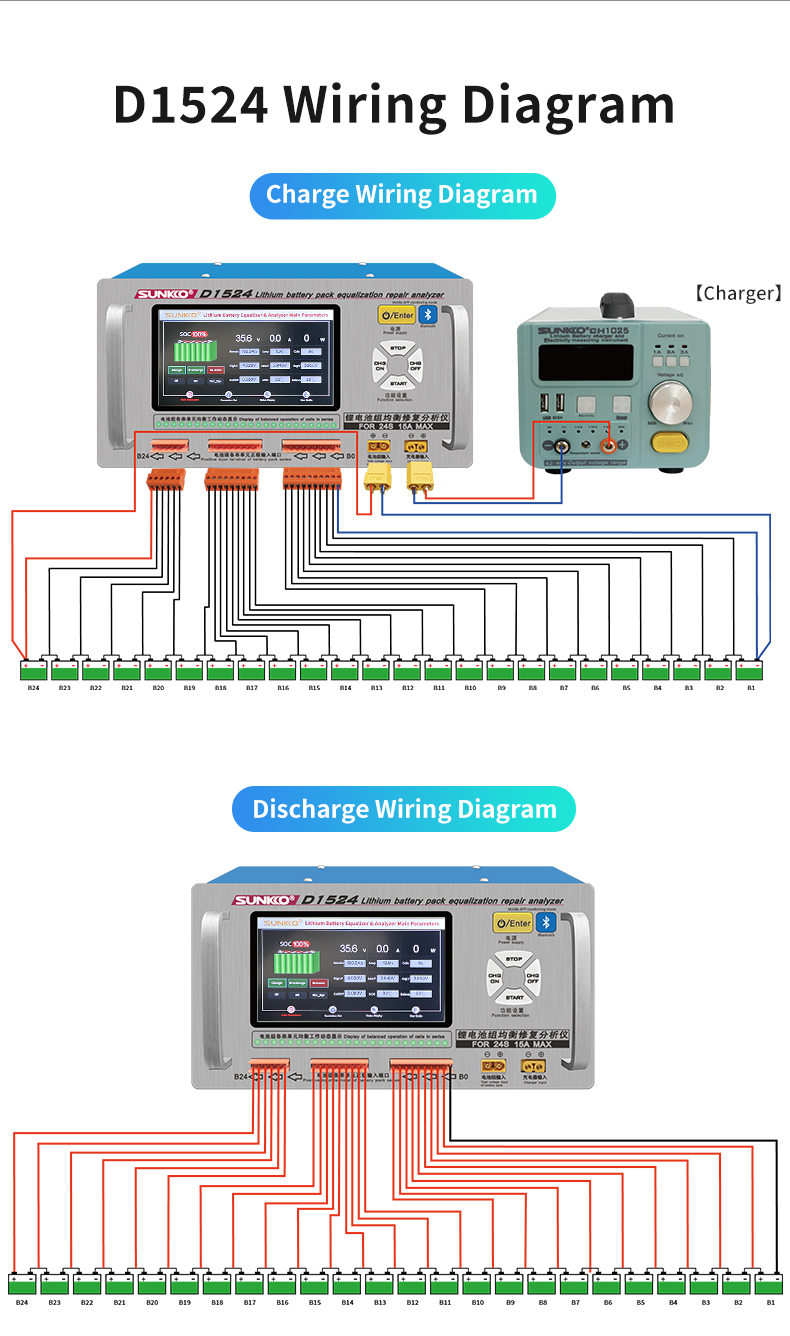

- Charging each string of the battery pack with the charger. When one of them is full to set the voltage value, it starts to discharge (at the same time charging), and the number of battery string that does not reach the set value continues to charge until each string battery is charged to the battery. Set the value to achieve the voltage balance of each string.
- Flexible settings the start equalizing voltage.
- Flexible settings the voltage difference ≥ 0.001V.
- Before and after equilibrium:
  Before equilibrium: Because the high voltage difference,the battery pack cannot full charge.
  After equilibrium: Set the “CellBalLimit” to full charge voltage,cooperate with charger to charge balance,after equilibrium,the voltage can reach the setting voltage.

Discharge balance:
- Set the equalization cutoff voltage,each battery string simultaneous discharge,until discharge to the setting voltage.
- Flexible settings the start equalizing voltage
- Flexible settings the voltage difference≥0.001V.
- Before and after equilibrium:
  Before equilibrium: Because the high voltage difference,the virtual voltage is high.
  After equilibrium: After energy discharge balance,each string battery discharge to the setting voltage,the voltage is consistent.

Specification:
- Model: D1524
- Number of strings: 2 ~ 24S
- Power supply voltage: 110V/220V 50/60Hz
- Balance current: 0 ~ 15A
- Equalizing voltage difference: 0.001 ~ 9.999V adjustment
- Balance mode: charge balance mode / discharge balance mode
- Cooling: heat dissipation fan
- Protection temperature: setting the overheat protection temperature.
- Security and reliable: software protection / hardware protection / master-slave board inter-monitoring
- Module design: security isolation, high protection, convenient for after sales

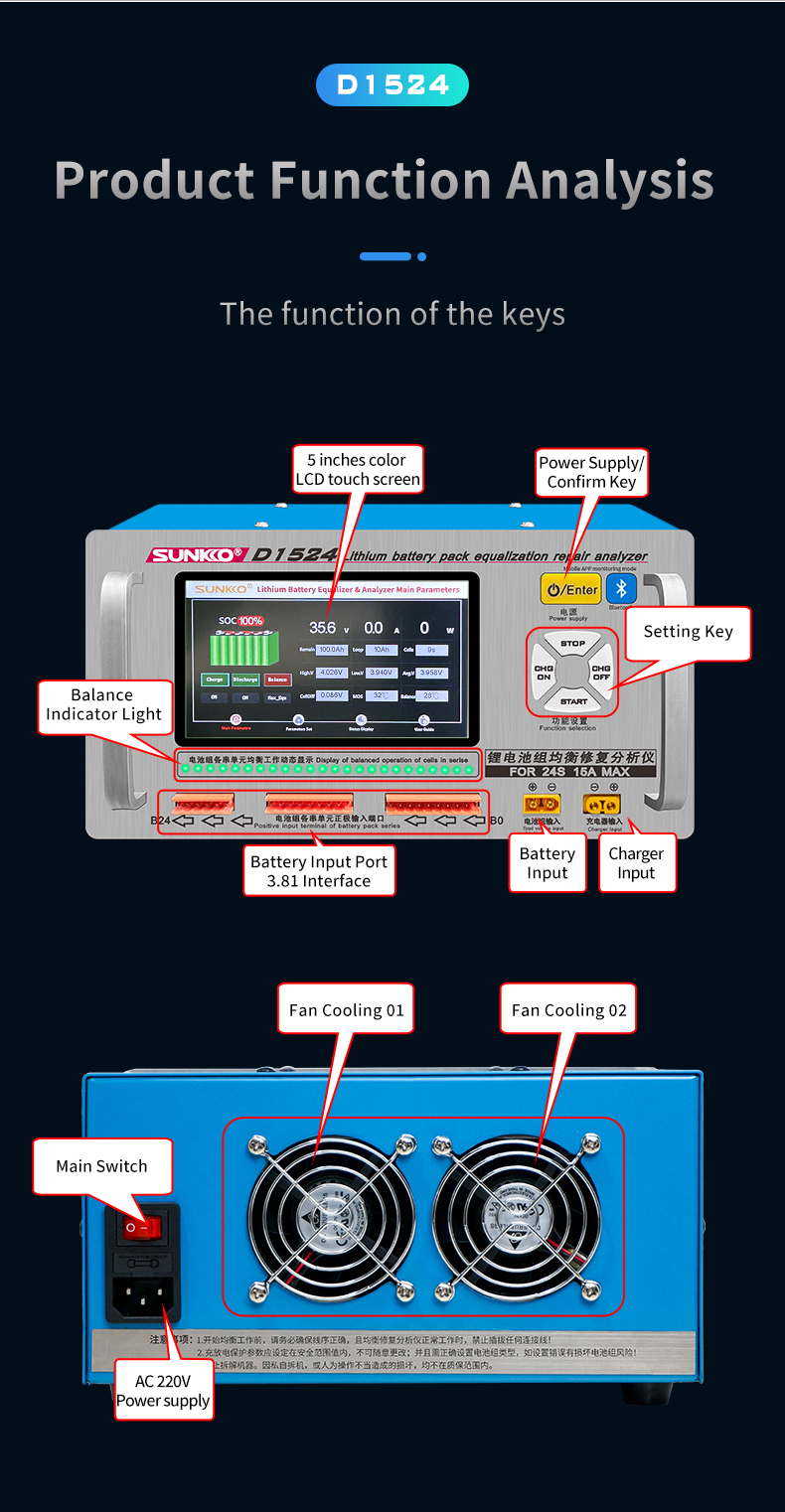

- Human-machine interface: 5 - inch color LCD touch screen
- Main protection items: overcurrent input, overvoltage input, overcurrent output, overvoltage output, output short circuit, connection off string, battery undervoltage, battery overvoltage, battery reverse connection, over-temperature protection.
- Size: L x W x H = 28 x 24 x 14cm

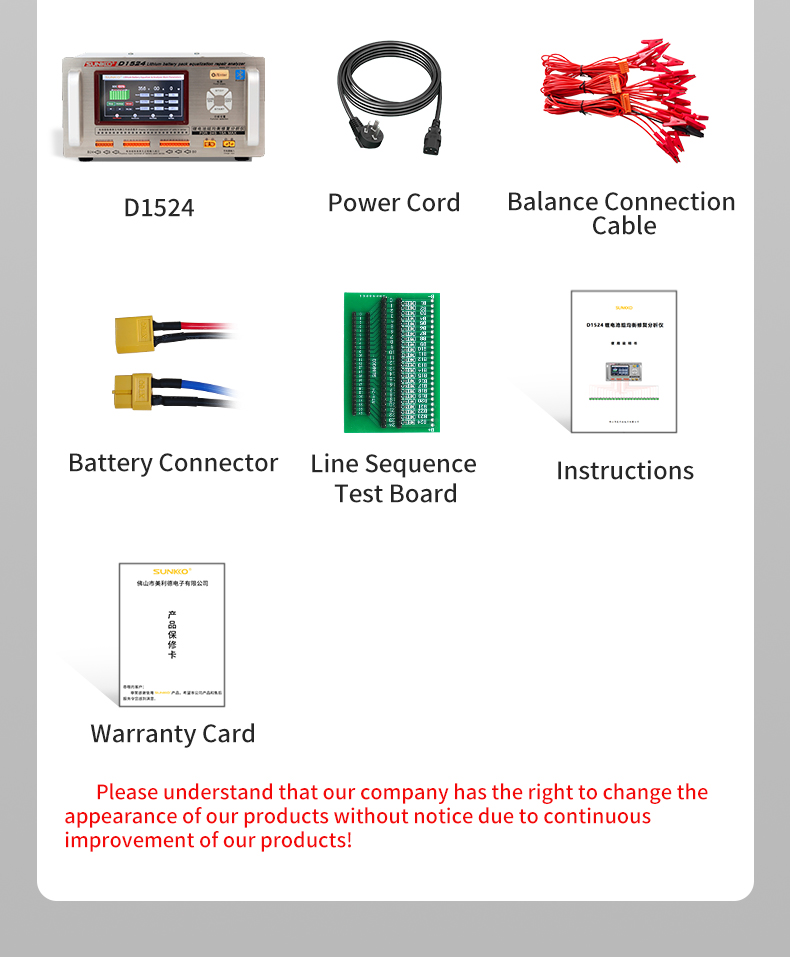

Package Included:
- 1 x Equalizer
- 1 x Power Cord
- 1 x Balance Connection Cable
- 1 x Battery Connector
- 1 x Line Sequence Test Board
- 1 x User Manual
- 1 x Warranty Card
