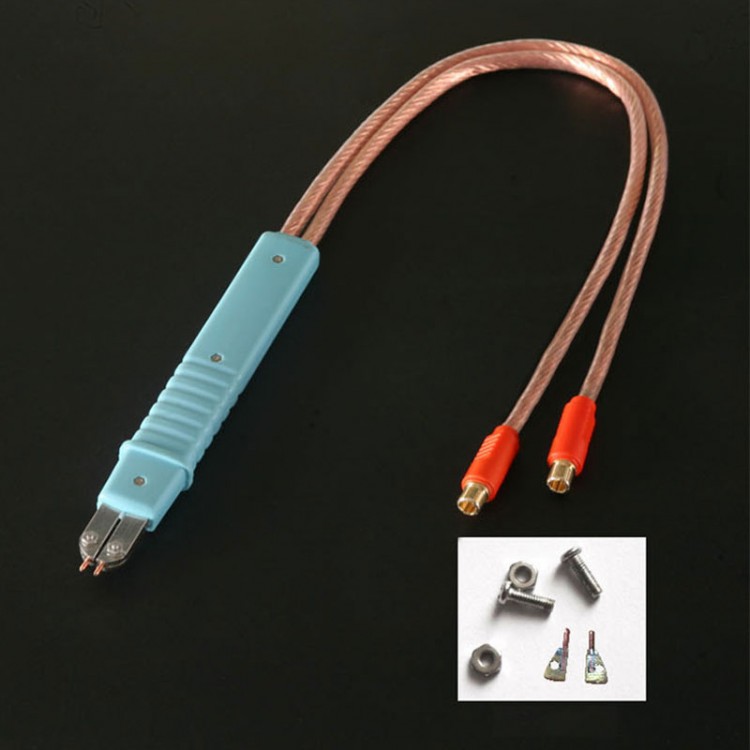

SUNKKO HB-71A Slim Handheld Spot Welding Pen For Lithium Battery Small Hardware Button Battery

SUNKKO HB-71A Slim Handheld Spot Welding Pen For Lithium Battery Small Hardware Button Battery

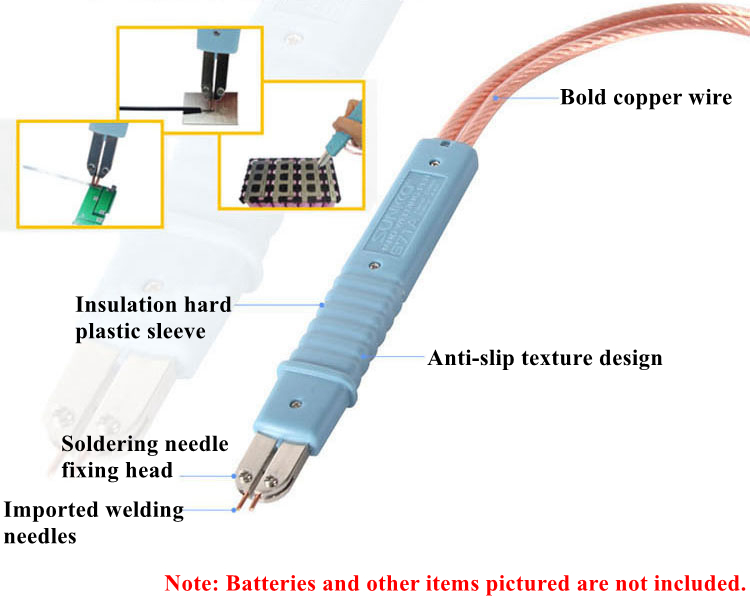

Features:
- Small spot welding pen can weld metal and nickel parts
- Independent complete set, convenient for transportation and assembly
- All low-resistance oxygen-free copper materials, stable discharge spot welding
- Imported aluminum oxide brazing needle, the length is increased to 12mm, and it can be used for a longer time
- Detachable welding tip, convenient for welding needle replacement
- Professional pen-shaped handle with non-slip cover, easy to hold

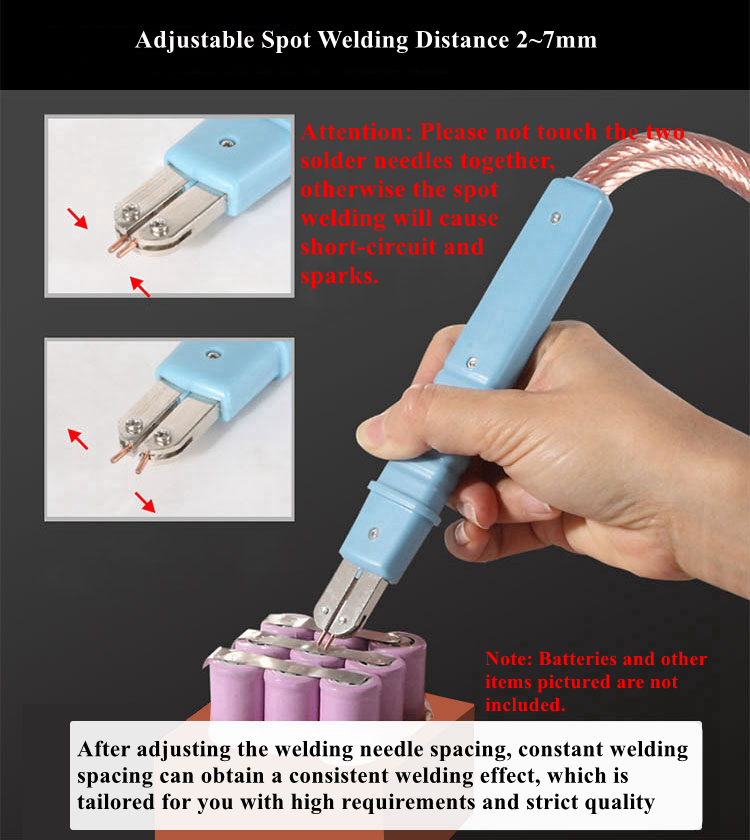

- The distance between the welding needles is adjustable in 2-7mm. Can be used for spot welding smaller hardware
- Humanized design, easy to grasp the integrated soldering pen with one hand, which solves the difficult way to master a split soldering pen. Slim shape, easy to hold and to use without learning or professional skills

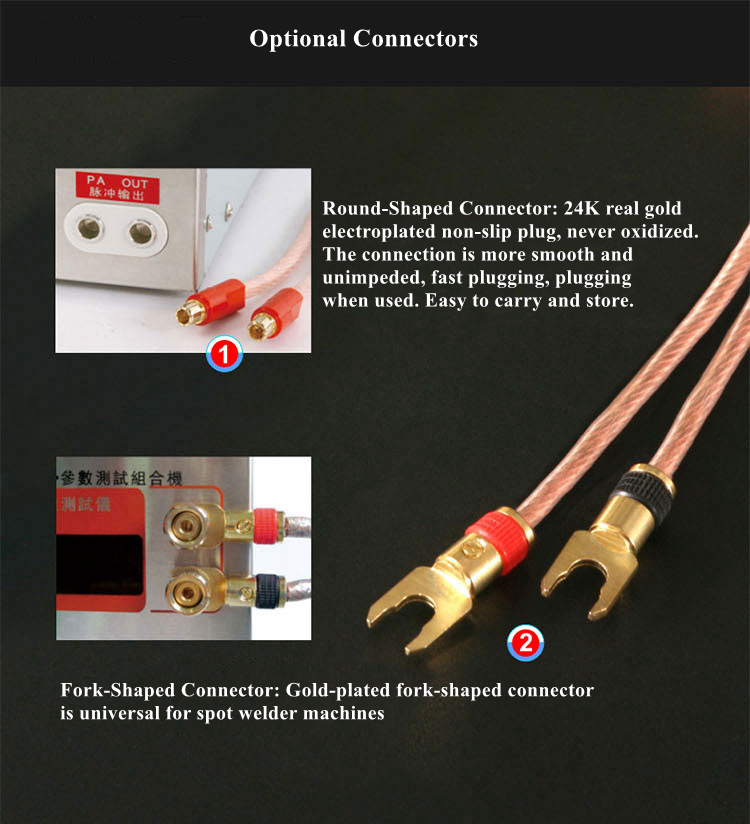

- Optional connectors: Round-shaped connector, fork-shaped connector

Use Range:
- Lead spot welding of lithium battery, lead spot welding of electronic circuit board, spot welding of hardware parts, lead spot welding of metal shell of electrical appliances, electronic production welding for electronic enthusiasts.
- Suitable for spot welding of small batteries, polymer batteries and protective plates, button batteries, etc.

Specifications:
- Adjustable welding needle spacing: 2mm~7mm
- Length of soldering pen and cable: about 580mm
- Cable cross-sectional area: 16mm²
- Welding needle size: Diameter 1.5mm x 7mm
- Adjustable welding pulse current: 0~500A

Package Included:
- 1 x Set of Spot Welder Pen

Note:
- Batteries and other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
