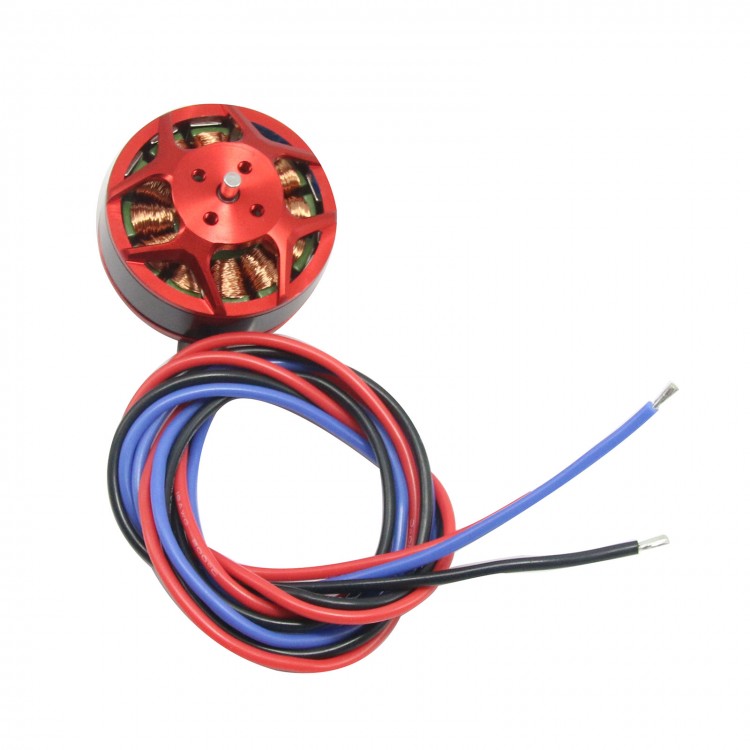

SUNNYSKY V3508 KV380 Brushless Motor for Multi-rotor Hexacopter Aircraft DJI 15x5 Prop 280W

Availability: Out Of Stock

  • Price:$43.99
  • Price in reward points: 440 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $43.11 $42.23 $40.91 $39.15 Contact US
Quantity:

SUNNYSKY V3508 KV380 Brushless Motor for Multi-rotor Hexacopter Aircraft DJI 15x5 Prop 280W

Description:
- 28 poles. High torque. High efficiency. Specifically designed for Multi Rotor.It also can be used for Remote control aircrafts.

Specifications:
- Model:V3508 380KV
- KV: 380RPM/V
- Weight: 107g
- Diameter: 42mm
- Diameter of Shaft: 3mm
- Motor silicone wire:600mm

Write a review

Note: We will keep it confidential.
Note: HTML is not translated!

Captcha
Model Propeller
(inch)
Voltage(V) Throttle Load-Currency
(A)
Pull(g) Load
(RPM/Min)
Power(W) Efficiency/w Temperature (in full throttle load 10min.(℃)
V3508KV380 APC12x3.8 18.5 50% 1.4 410 3480 25.9 15.83011583 48
65% 2.5 580 4100 46.25 12.54054054
75% 4.8 860 4877 88.8 9.684684685
85% 6.1 990 5215 112.85 8.772707133
100% 8.1 1190 5615 149.85 7.941274608
APC14x4.7 50% 2.4 610 3230 44.4 13.73873874 65
65% 4 810 3745 74 10.94594595
75% 6.6 1100 4310 122.1 9.009009009
85% 8.9 1290 4635 164.65 7.834801093
100% 11.2 1460 4937 207.2 7.046332046
DJI15x5 50% 2.2 600 3274 40.7 14.74201474 55
65% 4 870 3960 74 11.75675676
75% 6.3 1150 4590 116.55 9.867009867
85% 8.2 1330 4837 151.7 8.767303889
100% 9.8 1470 5210 181.3 8.108108108
APC10x3.8 22.2 50% 1.2 380 4457 26.64 14.26426426 40
65% 2.2 550 5331 48.84 11.26126126
75% 3.7 740 6131 82.14 9.009009009
85% 5.1 900 6762 113.22 7.949125596
100% 6.5 1050 7245 144.3 7.276507277
APC11x4.7 50% 1.8 510 4268 39.96 12.76276276 48
65% 2.7 670 4850 59.94 11.17784451
75% 5 970 5805 111 8.738738739
85% 6.9 1170 6377 153.18 7.638072855
100% 8.7 1340 6830
