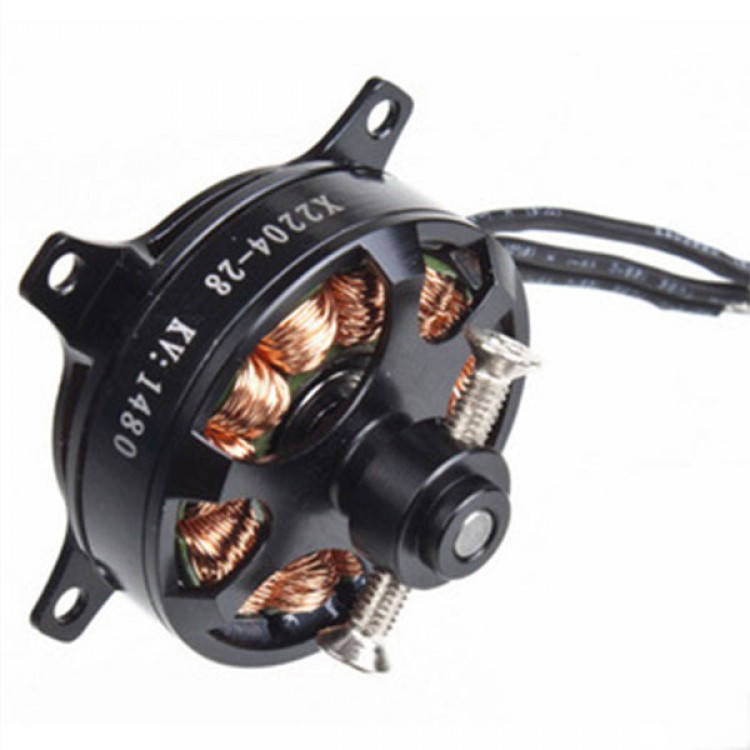

Sunnysky X2204 1480KV External Rotor Brushless Motor for Quadcopter Hexa Octa Multicopter
Description:
- KV: 1480
- Dia: 27mm
- Weight: 19.3g
- Height: 12.5mm/ 23.4mm
- Current: 10V/0.1A
| X2204 KV1480 | |||||
| Testing data (for reference only) ： | |||||
| Propeller Type | Voltage | Current | Thrust(G) | Power（W） | G/W Ratio |
| HD8040 | 6.4V | 3.4A | 190 | 21.76 | 8.73 |
| 7V | 3.9A | 240 | 27.3 | 8.79 | |
| 7.4V | 4.3A | 280 | 31.82 | 8.79 | |
| GWS9047 | 6.4V | 5.7A | 310 | 36.48 | 8.49 |
| 7V | 6.3A | 340 | 44.1 | 7.7 | |
| 7.4V | 6.9A | 390 | 51.06 | 7.63 | |
Package includes:
- Motor x 1
- Screw x 4
- Rubber ring x 3
