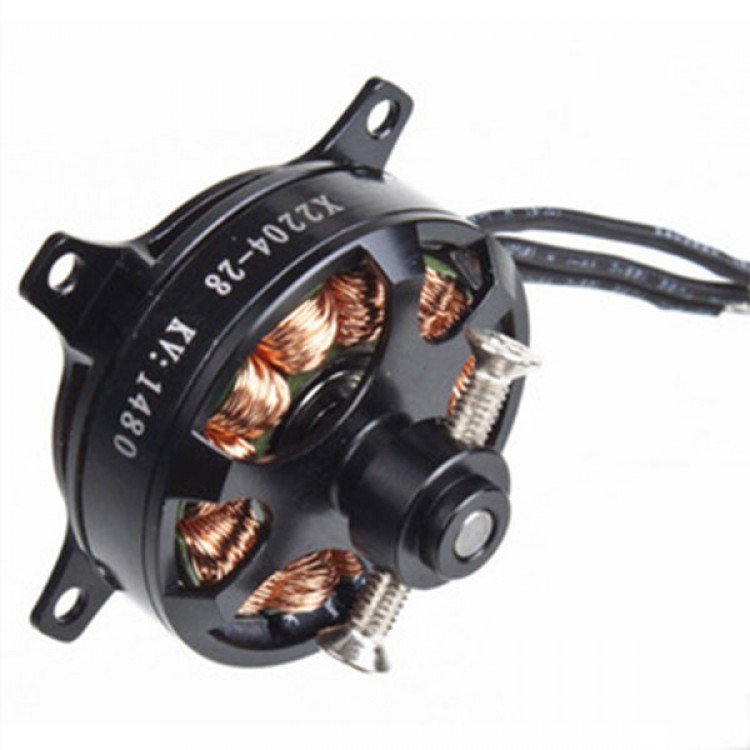

Sunnysky X2204 1800KV External Rotor Brushless Motor for Quadcopter Hexa Octa Multicopter
Description:
- KV: 1480
- Dia: 27mm
- Weight: 19.3g
- Height: 12.5mm/ 23.4mm
- Current: 10V/0.1A
| X2204 KV1800 | |||||
| Testing data (for reference only) ： | |||||
| Propeller Type | Voltage | Current | Thrust(G) | Power（W） | G/W Ratio |
| HD8040 | 6.4V | 6.5 | 310 | 41.6 | 7.45 |
| 7V | 7.4 | 340 | 51.8 | 6.56 | |
| 7.4V | 8.4 | 380 | 62.16 | 6.11 | |
| GWS8043 | 6.4V | 7.9 | 320 | 50.56 | 6.32 |
| 7V | 8.7 | 360 | 60.9 | 5.91 | |
| 7.4V | 9.4 | 410 | 69.56 | 5.89 | |
Package includes:
- Motor x 1
- Screw x 4
- Rubber ring x 3
