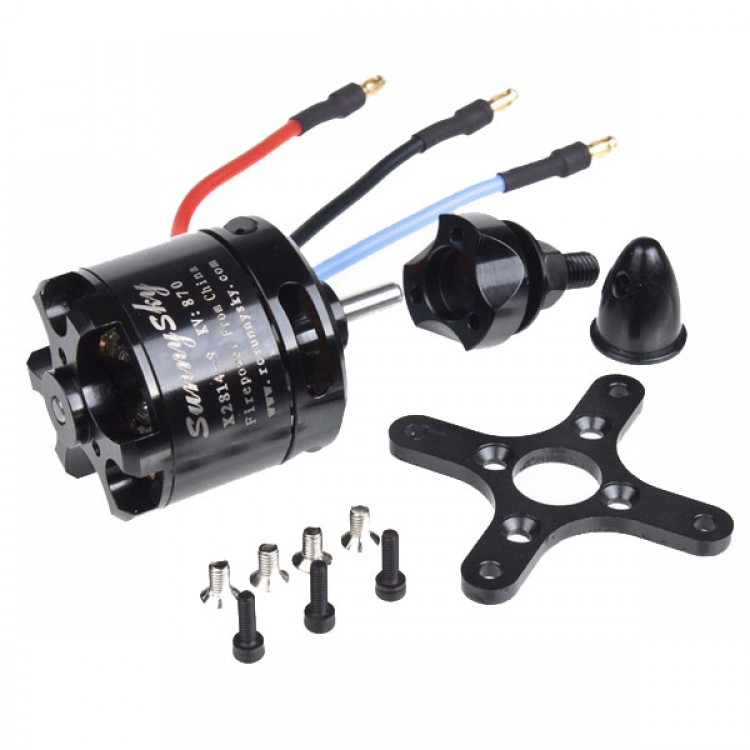

SUNNYSKY X2814 870KV Outrunner Brushless Motor for Multicopter
Specfications:
- Model:X2814-870KV
- KV (rpm/v): 870
- Non-load current: 10V/1.1A
- Weight: 106g
- Diameter: 35mm
- Length : 52.1mm/ 34mm (with shaft/ without motor shaft)
- Motor Shaft Diameter(mm): 4
- Prop adaptor output shaft diameter: 6mm
| X2814 KV870 | |||||
| Testing Data (for reference only): | |||||
| Propeller Type | Voltage | Current | Thrust(G) | Power（W） | G/W Ratio |
| EMP11X5.5 | 10V | 16.8A | 1.15kg | 168 | 6.8 |
| 11V | 19A | 1.4kg | 209 | 6.69 | |
| 12V | 21.6A | 1.6kg | 259.2 | 6.17 | |
| 13V | 24.4A | 1.8kg | 317.2 | 5.67 | |
| 14V | 27.1A | 2.1kg | 379.4 | 5.53 | |
| 14.8V | 29.5A | 2.3kg | 436.6 | 5.26 | |
| EMP12X6 | 7.4V | 15.7A | 1.02kg | 116.18 | 8.77 |
| 8.5V | 18.6A | 1.25kg | 158.1 | 7.9 | |
| 10V | 23.5A | 1.6kg | 235 | 6.8 | |
| 10.5V | 24.9A | 1.75kg | 261.45 | 6.69 | |
| 11V | 26.4A | 1.88kg | 290.4 | 6.47 | |
| 11.3V | 27.3A | 1.95kg | 308.49 | 6.32 | |
| JXF Wood 13X6 | 7.4V | 19.1A | 1.1kg | 141.34 | 7.78 |
| 8.5V | 22.6A | 1.38kg | 192.1 | 7.18 | |
| 10V | 27.4A | 1.75kg | 274 | 6.38 | |
| 10.5V | 29.5A | 1.9kg | 309.75 | 6.13 | |
| 11V | 31.5A | 2.02kg | 346 | 5.83 | |
| 11.3V | 32.9A | 2.1kg | 371.77 | 5.64 | |
