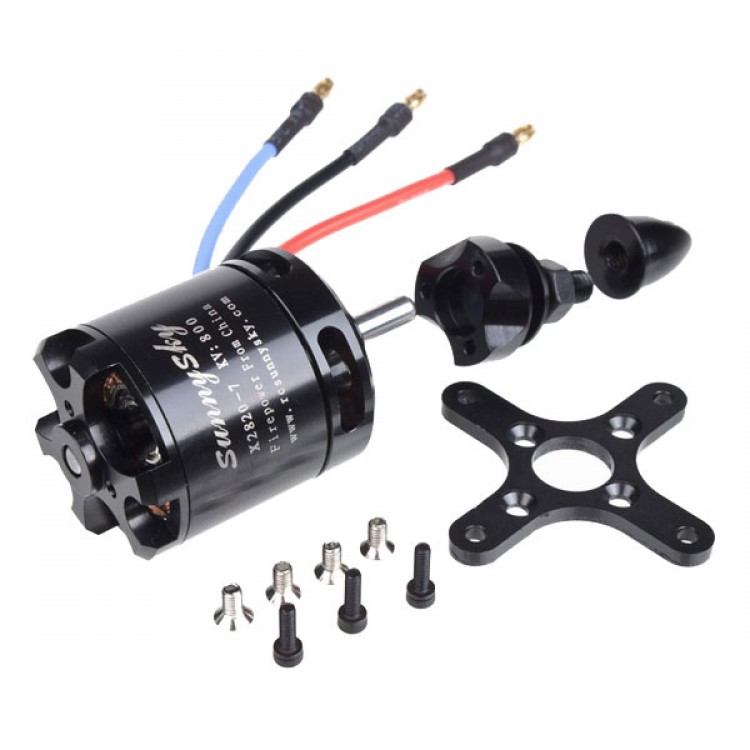

SUNNYSKY X2820 800KV Outrunner Brushless Motor for Quadcopter Multicopter
Specfications:
- Model:X2820-800KV
- KV (rpm/v): 800
- Non-load current: 10V/1.4A
- Weight: 140g
- Diameter: 35mm
- Length: 58.5mm/ 40mm (with shaft/ without motor shaft)
- Motor Shaft Diameter(mm): 5
- Prop adaptor output shaft diameter: 6mm
| X2820 KV800 | |||||
| Testing Data (for reference only): | |||||
| Propeller Type | Voltage | Current | Thrust(G) | Power（W） | G/W Ratio |
| EMP12x6 | 10V | 21.6A | 1.52kg | 216 | 7.03 |
| 11V | 24.8A | 1.68kg | 272.8 | 6.15 | |
| 12V | 28.1A | 2.0kg | 337.2 | 5.93 | |
| 13V | 31A | 2.18kg | 403 | 5.4 | |
| 14V | 34.2A | 2.5kg | 478.8 | 5.22 | |
| 14.8V | 37.1A | 2.83kg | 549.08 | 5.15 | |
| JXF13x6 Wood | 10V | 26.5A | 1.64kg | 265 | 6.18 |
| 11V | 29.7A | 2.02kg | 326.7 | 6.18 | |
| 12V | 33.9A | 2.25kg | 406.8 | 5.53 | |
| 13V | 37.4A | 2.49kg | 486.2 | 5.12 | |
| 14V | 40.5A | 2.7kg | 567 | 4.76 | |
| 14.8V | 44.3A | 3.0kg | 655.64 | 4.57 | |
| XDL14x8 Wood | 7.4V | 23.8A | 1.3kg | 176.12 | 7.38 |
| 8.5V | 28.3A | 1.58kg | 240.55 | 6.56 | |
| 10V | 34.5A | 1.95kg | 345 | 5.65 | |
| 10.5V | 36A | 2.08kg | 378 | 5.5 | |
| 11.1V | 38A | 2.25kg | 421.8 | 5.33 | |
| EMP14x7 | 7.4V | 22A | 1.3kg | 162.8 | 7.98 |
| 8.5V | 26.5A | 1.6kg | 225.25 | 7.1 | |
| 10V | 31.5A | 1.98kg | 315 | 6.28 | |
| 10.5V | 33.8A | 2.1kg | 354.9 | 5.91 | |
| 11.1V | 36.4A | 2.28kg | 404.04 | 5.64 | |
