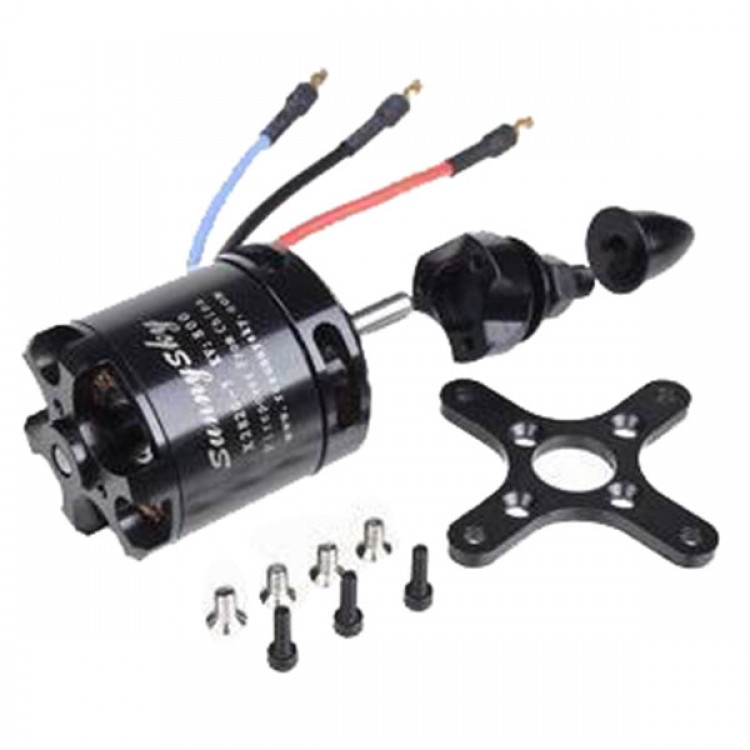

Sunnysky X2820 920KV Brushless Motor for Fixed Wing Multicopter
Specs:
- KV: 920KV
- Weight: 140g
- Unload current: 10V/1.4A
| X2820 KV920 | |||||
| Testing Data (for reference only): | |||||
| Propeller Type | Voltage | Current | Thrust(G) | Power（W） | G/W Ratio |
| EMP14x7 | 7.4V | 30A | 1.53kg | 222 | 6.89 |
| 8.5V | 35.2A | 1.85kg | 299.2 | 6.18 | |
| 9V | 38.1A | 1.97kg | 342.9 | 5.74 | |
| 9.5V | 41A | 2.1kg | 389.5 | 5.39 | |
| 10V | 44A | 2.25kg | 440 | 5.11 | |
| 10.5V | 47.2A | 2.42kg | 495.6 | 4.88 | |
| 11V | 49.5A | 2.6kg | 544.5 | 4.77 | |
| XDL14x8 Wood | 7.4V | 32.9A | 1.48kg | 243.46 | 6.07 |
| 8.5V | 38A | 1.83kg | 323 | 5.66 | |
| 9V | 40.5A | 1.92kg | 364.5 | 5.26 | |
| 9.5V | 42.1A | 2.05kg | 399.95 | 5.12 | |
| 10V | 45A | 2.2kg | 450 | 4.88 | |
| 10.5V | 48.6A | 2.34kg | 510.3 | 4.58 | |
| 11V | 51.7A | 2.54kg | 568.7 | 4.46 | |
| JXF13x6 Wood | 7.4V | 25.6A | 1.35kg | 189.44 | 7.12 |
| 8.5V | 30.3A | 1.55kg | 257.55 | 6.01 | |
| 10V | 36.7A | 1.96kg | 367 | 5.34 | |
| 11V | 41.8A | 2.25kg | 459.8 | 4.89 | |
| 12V | 46.2A | 2.56kg | 554.4 | 4.61 | |
| 13V | 50.7A | 2.87kg | 659.1 | 4.35 | |
| 14V | 55A | 3.1kg | 770 | 4.02 | |
| 14.8V | 59.5A | 3.32kg | 880.6 | 3.77 | |
| EMP12x6 | 10V | 31.2A | 1.78kg | 312 | 5.7 |
| 11V | 34.8A | 2.06kg | 382.8 | 5.38 | |
| 12V | 39.8A | 2.32kg | 477.6 | 4.85 | |
| 13V | 44A | 2.6kg | 572 | 4.54 | |
| 14V | 48.5A | 2.8kg | 679 | 4.12 | |
| 14.8V | 52A | 3.12kg | 769.6 | 4.05 | |
