SUP043N 4.3" Resistive Touch Screen PLC HMI Display & Download Cable for Mitsubishi Siemens Delta

SUP043N 4.3" Resistive Touch Screen PLC HMI Display & Download Cable for Mitsubishi Siemens Delta

Features:
1. The operating software structure is simple, the controls are modular and highly integrated. The software runs stably and reliably, which is easy for users to understand, and simple to operate.
2. Quick to turn on when it is powered on (2 seconds), the power consumption is low (less than 1.5W), to download program is fast, and the communication screen conversion is smooth.
3. Support a variety of controller communication protocols, adapt to various PLCs, frequency converters, servo controllers, single-chip microcomputer control systems, etc. (Support PLC such as for Mitsubishi, Panasonic, Omron, Delta, Xinjie, FATEK, Siemens, Keyence, and LG). When the user operates, he only needs to select the call directly on the software.
4. Support RS232, RS485 and RS422.
5. The product has complete functions: commonly used controls include switches, value display, picture display, historical trend chart, historical data display, message display, icons, trend charts, GIF display, alarm display, fast flow, text, table, various graphics and other controls.
6. Support multi-language settings, multi-function buttons, formulas, data transmission, data collection, curves and other advanced functions.
7. Support custom addition of image library; Users can take screenshots of their favorite pictures as needed and load them into a custom gallery for calling.
8. Support Chinese and English keyboard input, which can be switched freely.
9. Rich gallery, support Png, Jpg, GIF, Bmp and other formats of pictures, vector gallery, arbitrary scaling without aliasing.
10. Support baud rate range 1200-230400.
11. With the convenience of the configuration screen, low price, the use of the platform to develop new projects, short development cycle, and less R&D investment.
12. Support Wifi and customized communication protocol. Through Wifi wireless transparent transmission, it can communicate directly with the cloud server to achieve cloud remote control.
13. Support U disk to download.
14. It can work normally in the environment of -30℃ to -20℃.

Specifications:
- Display: 4.3" TFT LCD screen
- Ethernet: None
- Operating temperature: -20 to 50°C
- Resolution: 480x272
- USB port: 1 USB Host 2.0 port
- Storage temperature: -40 to 70°C
- Colors: 260,000
- Program download method: USB download
- Ambient humidity: 10~90%RH (non-condensing)
- Brightness: 400cd/㎡
- Serial communication port: COM port RS232/RS485/RS422
- Shock resistance: 10-25HZ (2G/30 MINUTES IN X, Y, Z DIRECTIONS)
- Backlight: LED
- Rated power: <2W
- Cooling method: natural air cooling
- LED life: 20000 hours
- Rated voltage: DC24V, working range±15%

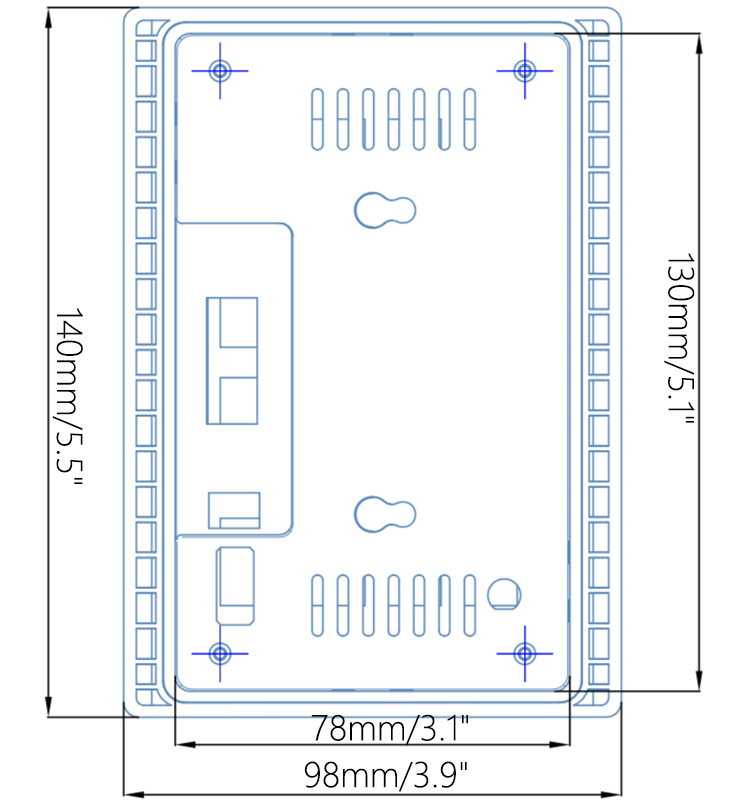

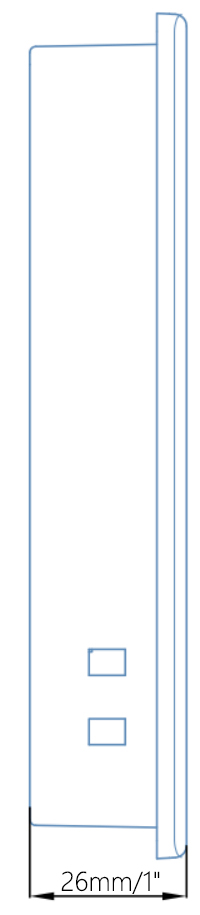

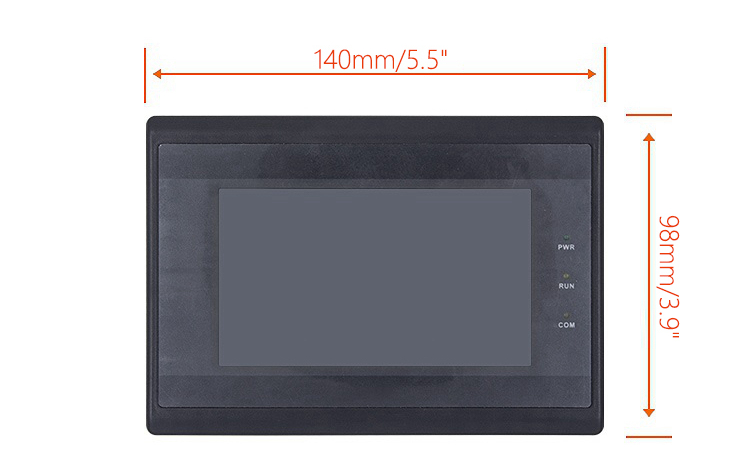

- Dimensions: 140 x 98 x 26mm/5.5 x 3.9 x 1"
- RTC: Built-in real-time clock
- Power protection: with lightning surge protection
- Hole spacing: 130 x 80mm/5.1 x 3.1"
- CPU: 32-bit 200MHz ARM9
- Allowable power loss: <5mS
- Net weight: 225g/0.5lb
- Memory: 128M FLASH
- Touch screen: 4-wire industrial resistive touch screen (surface hardness 4H)
- Protection class: the front panel conforms to IP20 (installed with a flat enclosure), and the rear shell of the fuselage conforms to IP20
- CE & RoHS: Complies with EN61000-6-2:2005, EN61000-6-4:2007 lightning surge ±4KV; GROUP PULSE± 4KV, ELECTROSTATIC CONTACT ± 4KV, AIR DISCHARGE 8KV

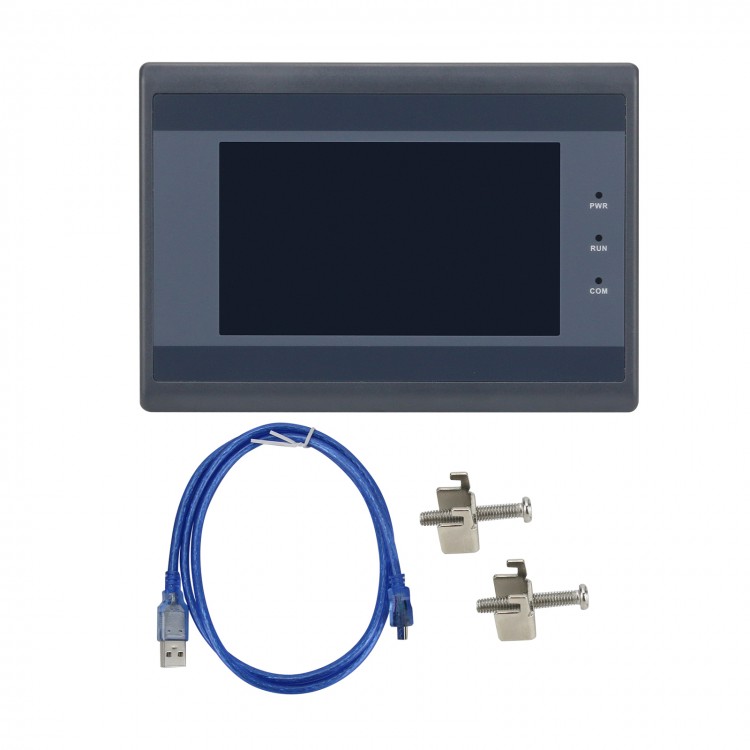

Package Included:
- 1 x HMI Screen
- 1 x Download Cable
