SUPAMP-3886 HiFi Power Amplifier Bluetooth5.3 LM3886TF 68W+68W High Power Audio Amplifier AC200-240V

SUPAMP-3886 HiFi Power Amplifier Bluetooth5.3 LM3886TF 68W+68W High Power Audio Amplifier AC200-240V

Description:
- LM3886 has always been a dream work for audio players for countless years. With its low distortion, rich, stable, warm and charming sound quality, delicate, natural, and bold tone, it has been a classic that continues to be popular in the HIFI circle. This product uses these two chips to create a very pleasing sound amplifier, which can meet the needs of many audiophiles. It is more durable and full-bodied than digital amplifiers. In addition, it also has overvoltage, short circuit, power on/off delay, etc., making the noise quieter and more inaudible.

Features:
- The 2.4-inch LCD color high-resolution Chinese and English display screen simulates the beauty of dynamic pointers, is wide and clear, and displays various information in real-time. Detailed data is intuitive and concise, making it convenient for users to operate.
- Equipped with a fully functional remote control function, the user-friendly operating system is simple and easy to understand. ±10dB treble and bass gain adjustment, 7-speed pointer sensitivity adjustment, fine volume adjustment.
- Compatible with more devices, with four major input ports (wireless). USB input supports USB flash drive, Bluetooth input for mobile phones and tablets, AUX 1/2 input supports CD, computer, player, etc.
- Plug in a USB flash drive for playback, the audio decoder has a built-in memory chip for plug and play, with the function of remembering and playing songs, and automatic playback supporting up to 128GB of memory. High definition lossless music playback, capable of storing over 10000 high-definition lossless music pieces.
- Large capacity dual storage, supporting TF Card and USB flash drive with a total capacity of up to 128GB (calculated based on listening to music for 2 hours a day, it can also be filled up for 365 days at once).
- AB Link: A professional intelligent APP developed based on the systems for Harmony OS/Android/Apple to achieve more convenient playback functions. You can view and play files from USB/TF cards, audio playback, set playback directories, play loop modes, and more to achieve deeper human-computer interaction. In addition, it also supports remote reading of songs from USB/TF cards through the APP, automatic channel selection, and other functions.

Bluetooth 5.3:
- Compared to Bluetooth 5.1 version, Bluetooth 5.3 can bring twice the data transmission speed and an 800% increase in data transmission capacity.
- Using Bluetooth 5.3 can transmit and receive more data at a faster speed.
- Different working distances: compared to Bluetooth 5.1 version, Bluetooth 5.3 has increased its bandwidth (transmission speed) from 1Mbps to 2Mbps, increasing the transmission distance by four times, which is the theoretical effective working distance of 300 meters. Low power mode is also available.

Components:
- Pure copper ring type A-core transformer, without breakpoints, integrally formed, with nearly seamless sheet to sheet connection, high efficiency, low heat generation, and low magnetic leakage.
- The PCM5102A independent Bluetooth decoding chip has lossless transmission of Bluetooth, and decoding is the process of reproducing memories on site. Good Bluetooth combined with good decoding is for a happy experience in the ears.
- NJW1194 volume control: A 2-channel electronic volume controller. Due to the use of resistor ladder electronic potentiometers, they have the characteristics of low offset and low output noise.
- In addition, a large number of imported brand electrolytic capacitors and high-quality raw material components are used inside the whole machine, which can effectively ensure the purity of sound.

Specification:
- Model: SUPAMP-3886
- Chip combination: LM3886TF + NJW1194 + AB Blue + PCM5102
- Input port: AUX1/AUX2/USB Flash Drive/Bluetooth
- Bluetooth version: 5.3 SBC
- Output power: 68W + 68W
- Output impedance: 4 - 16ohms
- Frequency response range: 20 - 30kHz
- Tune range: ±10dB
- USB flash drive play: up to 128G
- Lossless format: MP3/WMA/WAV/APE/FLAC
- Input impedance: 50Kohms
- Static power consumption: 5W
- Product size: 146 x 258 x 56mm
- Net weight: 2.58kg

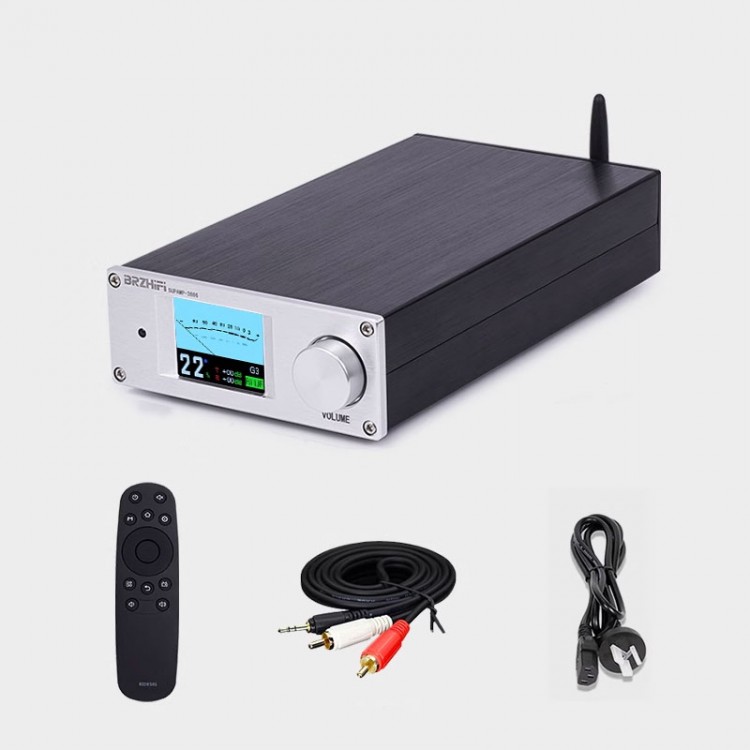

Package Included:
- 1 x Host
- 1 x Power Cable
- 1 x RCA Cable
- 1 x Remote Controller
