Super APM Flight Control with Aluminum Case Integrated OSD 915Mhz 3DR Tx with Power Module LED Indicator for FPV Multicopter

Super APM Flight Control with Aluminum Case Integrated OSD 915Mhz 3DR Tx with Power Module LED Indicator for FPV Multicopter

Description:
Super APM Flight Control with Aluminum Case Integrate Mini OSD 3DR Transmitter Power Module LED Indicator for FPV Multicopter

Features of Using Aluminum Case:
- Great heat dissipation for the durability of long time working.
-  Avoid disturbance of external radio signal and high-low frequency signals, making a more durable flight.
- It is not so easy to be destroyed as plastic case does, even when the drone destroyed.

Functions of upgraded SUPER APM:
SUPER APM is mainly integrated with MINI OSD, 3DR transmitter, current voltage sensor, unlocked light and GPS light. There are four light bars, two red and two blue, 3 lemp beads for each one.

Hardware:
- Chip:  8bit ATMEGA2560
- Bulid in 3-axis gyro, accelerometer, 6 DoF Accelerometer/Gyro MPU-6000
- Barometric pressure sensor upgraded to MS5611, from Measurement Specialties
- Onboard 16 MegaByte AT45DB161D Dataflash chip for automatic datalogging
- Eight Channels PWM Control Input
- Eleven Analog sensors Input
- Eleven Channels PWM Output(Egiht Channels ESC Motors,Three Channels Gimbal Stabilization
- Optional off-board GPS, uBlox NEO-6M,7M,LEA-6H,M8N module with Compass.
- Shielding onboard PPM decoding function, external PPM decoding board or external PPM receiver
- 12C external compass port
- Onboard OSD Function that uav ‘s attitude, mode, speed, voltage. Current. Height. The gas quantity. Star search. Location and other important data overlay the on the image,then pass back the monitor by 5.8G image transmission
- Onboard current voltage sensor
- Onbaord 3DR data transmission module

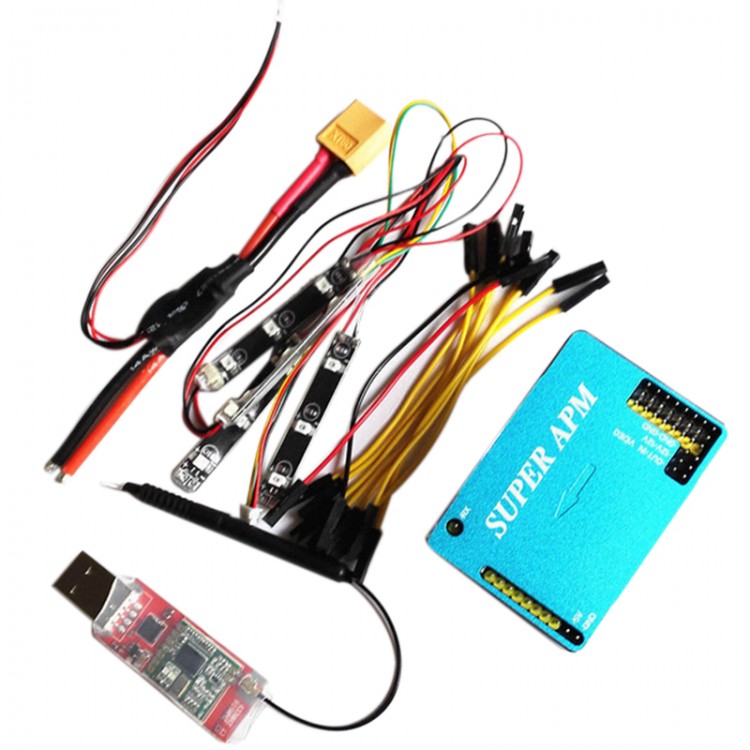

Packing List Included:
- 1 * SUPER APM with Aluminum shell
- 1 *  Ground receiving data transmission (915MHz; including the antenna)
- 1 *  Air module data transmission’s antenna
- 1 * Battery power wire(optional XT60/Deans Plug )
- 1 * LED Panels
- 1 * Yellow Dupont cable
- 1 * Red Dupont cable
- 1 * Black Dupont cable
