Super Black Power Switch ELM 327 Interface Diagnostic Auto Code Reader V1.5 ELM327 MINI Bluetooth

Super Black Power Switch ELM 327 Interface Diagnostic Auto Code Reader V1.5 ELM327 MINI Bluetooth

Highlights:
- The Black Super ELM327 MINI Around the World. It supports all OBD-II protocols.
- It is the latest version 1.5

Description:
- ELM327 MINI OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols

Automatic:
- SAE J1850 PWM(41.6Kbaud)
- SAE J1850 VPW(10.4Kbaud)
- ISO9141-2(5 baud init,10.4Kbaud)
- ISO14230-4 KWP(5 baud init,10.4 Kbaud)
- ISO14230-4 KWP(fast init,10.4 Kbaud)
- ISO15765-4 CAN(11bit ID,500 Kbaud)
- ISO15765-4 CAN(29bit ID,500 Kbaud)
- ISO15765-4 CAN(11bit ID,250 Kbaud)
- ISO15765-4 CAN(29bit ID,250 Kbaud)
  SAE J1939 CAN(29bit ID,250*Kbaud)
  USER1 CAN(11*bit ID,125*Kbaud)
  USER2 CAN(11*bit ID,50*kbaud)

Default Settings(user adjustable)
- Works with all OBD-II compliant vehicles
- Wireless (Bluetooth) 5~10 meter
- Software included for Palm, PDA,Mobile
- Software included for Windows PC
- Software included for Windows Smartphone

Functions:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others.

Specifications:
- Dimensions: 5 * 4.5 * 2.5cm
- Net weight: 32g
- Total weight: 43g

Packing List:

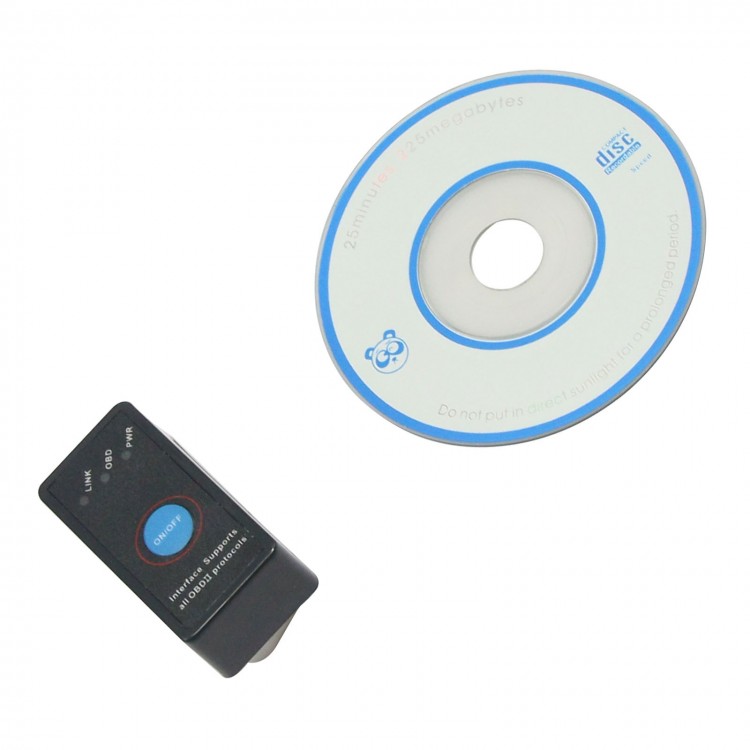

- 1 * Black Super ELM327 MINI Bluetooth
- 1 * CD Drive
