SuperDial Smart Knob Volume Control Knob with 1.28" Screen Bluetooth/Wired Mode for PCs Cellphones
Open Source Link:
https://oshwhub.com/45coll/a2fff3c71f5d4de2b899c64b152d3da5
Firmware Source Code:
Old SuperDial firmware: https://gitee.com/coll45/super-dial-motor-knob-screen
New SuperDial firmware: https://github.com/coll45/esp_idf_lvgl_foc_knob
X-Knob firmware: https://github.com/SmallPond/X-Knob
Bilibili Demonstration Video:
Old SuperDial firmware: https://www.bilibili.com/video/BV1cG411c7QS
X-Knob firmware: https://www.bilibili.com/video/BV1dg4y1H7vv

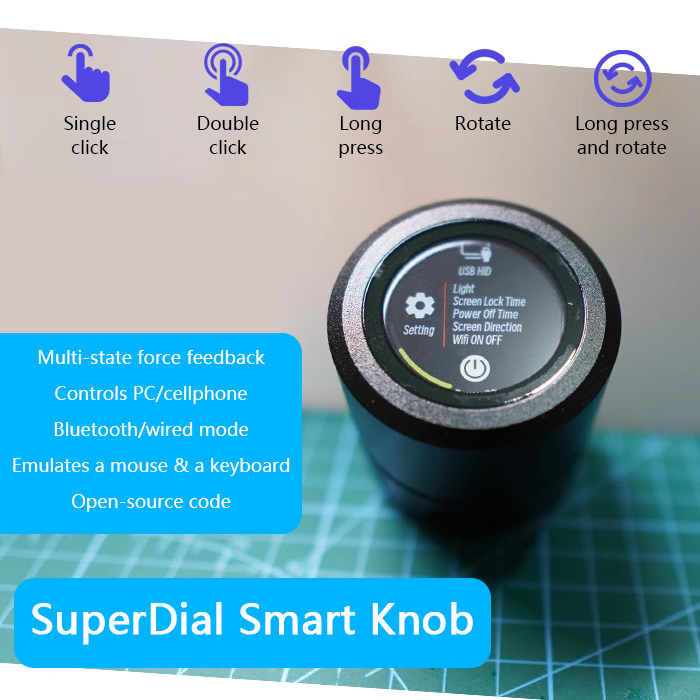

Features:
- SuperDial smart knob to control computers and cellphones
- Multiple operation methods: one click, double click, long press, rotate, and long press and rotate
- Multi-state force feedback

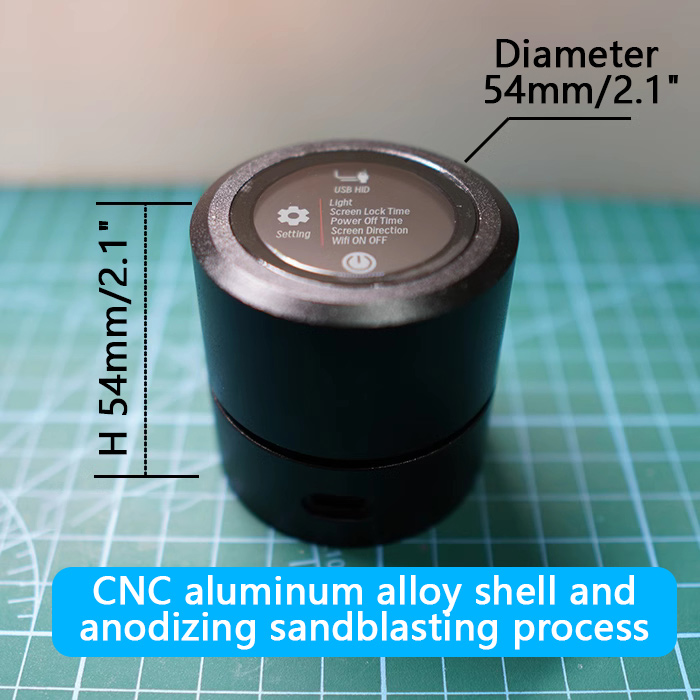

- CNC aluminum alloy shell and anodizing sandblasting process

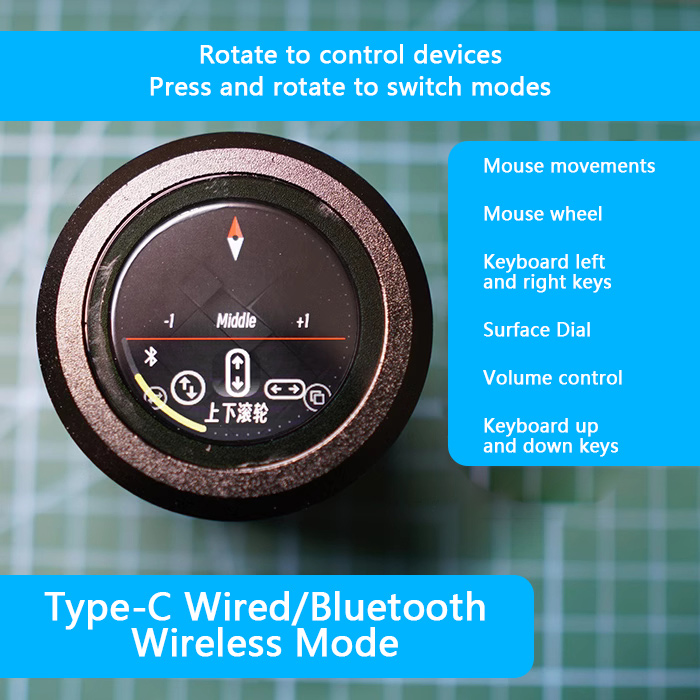

- Supports type-c wired and Bluetooth wireless modes
- Emulates a mouse and a keyboard
- Open-source code
Specifications:
- Item name: SuperDial Smart Knob
- Screen: 1.28" LCD screen
- Material: aluminum alloy + PETG
- Dimensions: 54mm x 54mm/2.1" x 2.1" (Dia. x H)
- Weight: 180g/0.4lb
- Power supply input: 5V 1A
- Power connector: Type C
- Control mode: knob/button
Package Included:
- 1 x Smart Knob
Packaging Details:
- Weight: 0.25kg
