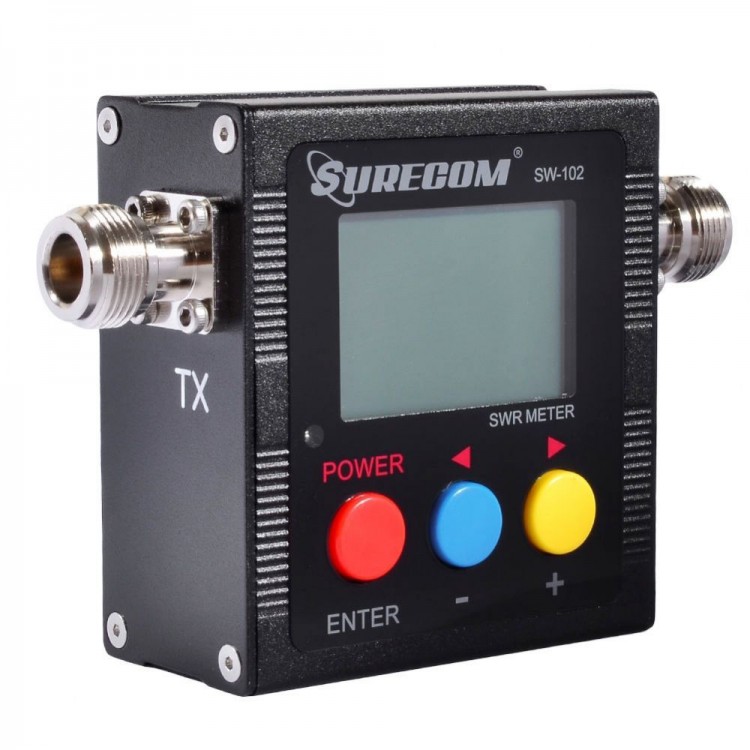

Surecom SW-102 125-525Mhz Digital VHF/UHF Antenna Power SWR Meter 2-Way Radio
|
VSWR. Forward and reflected power direct digital readout, without any calibration.
|
Check the Output Power of your transceiver :
Connect to "TX" on Radio output and dummy Load to "ANT". Proper adaptor/cable is required if your device has different type of connectors.
Check the S.W.R. of your Antenna :
Connect to "TX" on Radio output and Antenna to "ANT". Proper adaptor/cable is required if your device has different type of connectors.
Note: Damage your radio when No Connect Antenna and Dummy
Power ON/OFF
Press 2 second the [Red button] to power on or power off
Funtion menu display:
1) Adj. RF Forward %
2) Adj. RF reward %
3) Adj. frequency counter time base.
4) Adj. RF Power %
5) Adj LCD dim of light
6)Adj. power off time
7)Adj. Powe test mode ( 0 for 1-10W hand held radio , 5 for Mobile Radio 10-100W)
Setting Memory SAVE:
1. Press MENU [Blue button]
2. Press F1 [Red button)(Select 1-7 Funtion)
3. Press [Blue button] ( - ), [Yellow button] (+)
4. Press the [Red button ]for 2 seconds
5. Press the [Blue button] to SAVE and EXIT
| MENU (V3.3) | Setting | Preset | Unit | |
| 1 | Adjustment Forward | -99 to +99 | 0 | Fine Tune Level % |
| 2 | Adjustment Reverse | -99 to +99 | 0 | Fine Tune Level % |
| 3 | Adjustment Time Base | -99 to +99 | 0 |
Frequency Counter OSC Time Base |
| 4 | Adjustment Power Level | -99 to +99 | 0 | Fine Tune Level % |
| 5 | LCD DIM (Back Light Time) | 0 to 9 | 1 |
"0" is ON, 1 min to 9 mins |
| 6 | POWER OFF | 0 to 9 | 3 |
"0" is ON, 1 min to 9 mins |
| 7 | Mode (Power "Watt" Measurement ) | 0 to 9 | 5 |
0 for handheld Radio 1-10W 5 for Mobile Radio 10W-120W |
