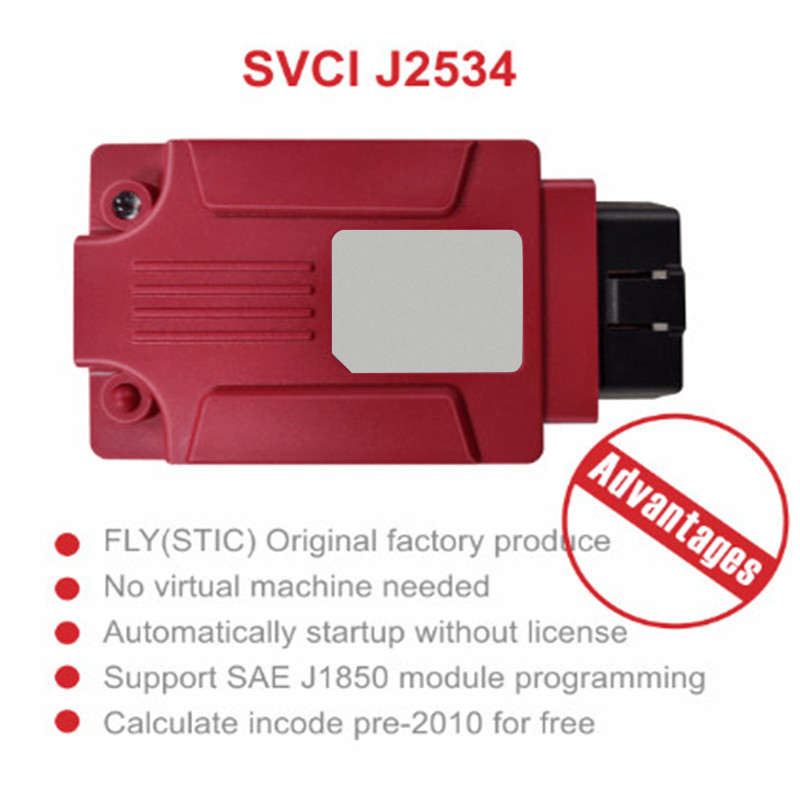

SVCI J2534 Diagnostic Tool Supporting Online Module Programming Diagnosis V125 for Ford & Mazda

SVCI J2534 Diagnostic Tool Supporting Online Module Programming Diagnosis V125 for Ford & Mazda

Description:
SVCI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2. It supports most of vehicle communication protocols and can be used as PassThru device for many dealer level diagnostic software. And it can be used as a ELM327 device also, supporting most of ELM327 software, but the factory just has software for Ford and Mazda.

Top 7 Reasons to Get SVCI J2534:
1. High speed host communication. (3Mbps)
2. Stable host communication. (with RTS/CTS flow control)
3. Automatically register software and no virtual machine needed
4. Online software update and keep software latest always
5. Online firmware update
6. USB 802.11 selectable host communication
7. Support ELM327 software by one device

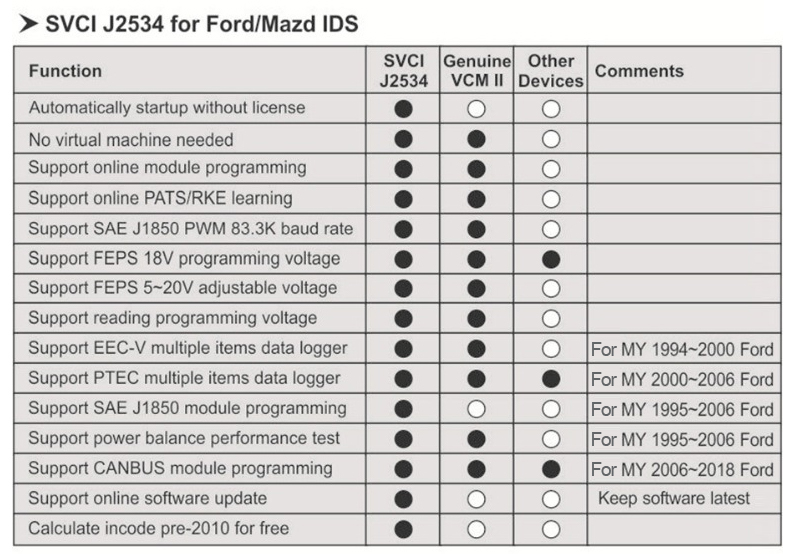

SVCI J2534 Support Software:
- For J2534 Ford IDS
- For Mazda IDS

SVCI J2534 Support Protocols:
- ISO9141 IS014230
- J1850 VPW
- J1850 PWM (For Ford SCP)
- IS011898 HS (500K BPS)
- IS011898 MS (125K BPS)
- IS015765 HS (500K BPS)
- IS015765 MS (125K BPS)
- FEPS (Flash EEPROM Program Signal)
- KWP1281
- J2819 (TP2.0)

SVCI J2534 Specifications:
- Size: 76 x 54 x 22mm/3 x 2.1 x 0.9" (LxWxH)
- Environmental: -20℃ to 45℃ (-4℉ to 113℉) at 15% to 85%
- Voltage Requirements: 8-32V DC, 10 mA (max.), 0.6W at 12V DC non-condensing

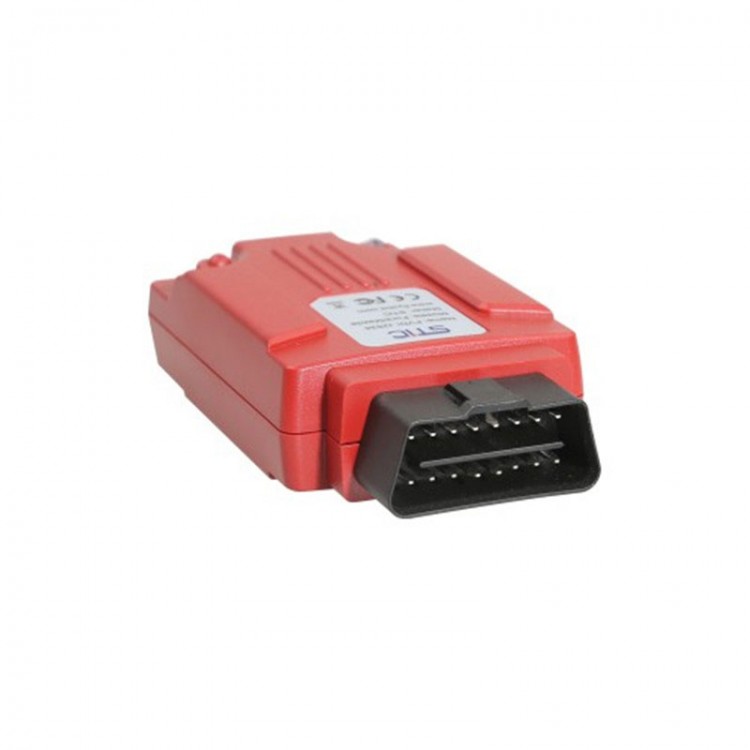

- Vehicle Connection: Molded DLC3 (OBDII-16)

Package Included:
- 1 x SVCI J2534
- 1 x USB Cable
- 1 x Operation Guide
- 1 x CD

Note:
- Press ELM327 model over 10 times in short time will lock device, light will be red.
- SVCI J2534 supports software V125 and the software will not be updated in the future, please note that.

LED:
- Work normal: Green LED blinks continuously slowly Firmware updating: Red LED blinks continuously quickly

PS Push Switch:
- Pressed: works as ELM327 mode Released: works as J2534 mode
