SwellPro Splash Drone 4 Waterproof Drone Quadcopter 2KG Load Capacity (Basic Version for Fishing)

SwellPro Splash Drone 4 Waterproof Drone Quadcopter 2KG Load Capacity (Basic Version for Fishing)

Description:
Splash Drone 4 is the 5th generation waterproof drone representing SwellPro's 7 years of knowledge and understanding of drone waterproofing technology.

Splash Drone 4 is the all-new waterproof flight & float platform designed for multipurpose operation in any harsh environment.

Features:
- Splash drone 4, a multi-functional waterproof flight platform
- A new benchmark for waterproof drones. IP67 waterproof body. IP66 waterproof remote controller. 5km image transmission, automatic power flip, 2kg/4.4 lb payload capacity, 30min flight time, slide-in smart battery, and dynamic return to pilot
- Multi-functional Payload Options: With its modular multi-functional payload system and open interface design,the Splash Drone 4 can quickly adapt to different tasks in the field
- FAC FPV Camera: A directional FPV camera specially crafted for fishing enthusiasts. It is a new high-definition camera with excellent waterproof structure. FAC is small and exquisite in appearance, strong in portability, economical and practical to use. It is a cost-effective directional FPV camera. It can effectively help to find the best fishing spot, watch and record the wonderful fishing process in real time
- PL1-S is a payload release module designed for Splash Drone 4. It can be used to drop fishing baits, lifebuoy and other items on targeted locations above the water. IP67 waterproof, made from high precision CNC aluminum and stainless steel. No interference with the radio connection, video transmission, and GPS precision. Max loading weight of 2kg/4.4lb.
- All-new IP67 waterproof body: The whole body is made of industrial-grade ABS material, and the internal electronic components have special coatings, which are further waterproof and corrosion-resistant. It can take off and land on the water surface, float on the water surface, flip the water surface, and so on. And supports flying in rainy and snowy weather
- Remote control adopts IP66 waterproof and dustproof design, which is sturdy and durable. Provide worry-free operation in harsh environments. The high-brightness 2" digital display monitors flight data and flight status in real time, even if there is no tablet or mobile phone during the flight, the drone status can be observed in real time. Built-in GPS can realize real-time tracking and dynamic return function. High-speed Wi-Fi connection, multiple devices can be connected at the same time, and different applications and devices can be used at the same time during the flight. 7-hour standby time
- Innovative and stable "Smooth+" flight control: The patented smooth "Smooth+" control device can switch the rotation/translation joystick control to finely adjustable knob control to maintain the desired drone attitude. Whether it's shooting or surveying, using the smooth "Smooth+" control, you can adjust the amount of drone movement to achieve and maintain a smooth translation, orbit and scan, which is an effect that the joystick cannot achieve
- VTX for MultiSync: Thanks to advanced wireless digital image transmission technology for MultiSync, the maximum flight transmission distance in the air is up to 5km. According to the requirements of the flight mission, the antenna can be adjusted to maximize the flight distance. The powerful image transmission system for MultiSync enables the drone to realize terminal interconnection and intercommunication with various devices to ensure stable data transmission. (Attention: Since water absorbs radio waves, when the flying distance is only 0.5m/1.6ft on the surface of the water, the transmission distance can still reach 2.8km, and the effective distance can reach 500m/1640.4ft when floating on the surface.)
- Automatic flip: When the drone turns upside down on the water for any reasons, Power-Flip feature turns the drone back to the normal state to take the control back
- Boat Mode: Equipped with floating foams, the boat mode allows the drone to sail on water just like a boat, providing great underwater shots while remains the water area uninterrupted. Caves and other overhead environments can now be accessed by the drone for research, exploration, and underwater photography
- Unrivalled-performance Propulsion System: The more powerful 740Kv Motor, 40A ESC together with optimized aerodynamic design allow for tight,responsive, and total control of the drone in any challenging weather conditions. Grade-7 wind resistance. 2kg/4.4 lb payload capacity
- Smart Battery: The new slide-in smart battery has an internal battery management system for real-time power monitoring and protection both in charging and discharging, ensuring battery health,safety and longer lifespan. The 6600mAh high-performance lithium technology 18650 cells provide up to 30 minutes of flight time.
- Full-featured live broadcast: When used with live broadcast software, drone can easily realize the live broadcast function
- Dynamic Return to pilot: The drone constantly records the GPS position of the remote controller, allowing the aircraft to always return to the pilot's position even if they are on a moving boat far away from the original take-off point
- Intelligent Follow me: Actively track the position of the pilot at a constant angle from the front, side, and back with the camera always pointing to the subject
- Orbit Follow: Automatically follow and orbit around a moving object at a radius of 10m/32.8ft
- For SDFly APP: APP can record, plan tasks, and control and parameter settings of cameras and other modules in flight
- Cruise mode: Automatically fly at a designated speed and direction
- Tap to fly: Autonomously fly to a selected location on the map at a predetermined altitude and speed, and hover awaiting further commands
- Waypoint mission planning: Pre-plan a mission by selecting a series of way-points on the map with adjustable speed, height, hover time and camera angle at each point
- Grid mission planning: Connect up to 256 way-points to form a mission area planning and the drone will follow an uniform grid pattern flight path at the selected speed and interval
- Powerful secondary development platform: Splash Drone 4 offers API for third-party software to gather data from sensors and to configure its control of aircraft,gimbal, camera, and third-party add-ons. SDK allows deep integration of third-party add-ons to the drone. Together with API, Splash Drone 4 is truly a multi-purpose & multi-functional platform for your imagination

Precautions:
- The 30-minute endurance time is measured under no-load hovering.
- The 5km image transmission distance is measured in an open and undisturbed outdoor environment.
- Some expansion accessories need to be purchased separately, such as ND filters, boat mode kits.

Parameters:
Aircraft:
- Waterproof Rating: IP67
- Drone Weight (include battery): 2.18 kg/4.8 lb
- Size: 379.2 x 379.2 x 230mm/14.9 x 14.9 x 9.1" (excluding the size of propellers)
- Axis Diameter: 450mm/17.7"
- Max Ascend Speed: 4m/s
- Max Descend Speed: 4m/s
- Max Flight Speed: 22m/s (ATTI)); 10m/s (GPS)
- Max Tilt Angle: 12.5° (ATTI); 25° (ATTI fast)
- Max rotational angular velocity: 150°/s
- Max Takeoff Altitude: 120m/393.7ft (GPS) / ATTI - no limitation
- Maximum wind speed: 72km/h, 20m/s, 39 knots
- Max Flight Time: 30mins (no wind & no load) (approx. 25mins with GC3-S, approx. 15mins with load of 1.5kg/3.3 lb)
- Max Flight Distance: 5.0 km
- Max Payload Capacity: 2.0 kg/4.4 lb
- Flight control: for Hawk
- VTX: for MultiSync
- Motor: #3509-740Kv waterproof
- ESC: 40A (flux)
- Propellers: #1242 carbon fiber quick release propellers
- Operating Frequency: 5180 - 5875 MHz
- Transmitter Power (EIRP): FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
- Working Temperature: -10℃ to 40℃
- Satellite Positioning Systems: GPS/GLONASS
- Hovering Precision: ±0.5m/1.6ft (vertical); ±0.5m/1.6ft (horizontal)
- Pass-through Serial Port: Connect to a third-party device and transfer the data of the third-party device to the remote control
- UART (SDK): Allows for TTL serial port to TCP, support baud rate of 115200
- Wi-Fi Hotspot: IP: 192.168.1.101:2222
- Power Input: 12V/2A | 5V/2A

Remote Control:
- Waterproof rating: IP66
- Working frequency: 5180-5875MHz
- Transmitter power (EIRP) FCC/IC: ≤24dBm; CE/SRRC/MIC: ≤20dBm
- Real-time video transmission: 720P at 30fps
- Delay: 200ms (depends on the actual shooting environment and mobile device)
- Internal battery: 2S 3600mAh
- Working time: 7 hours
- Working current/voltage: 0.3A/7.4V
- Micro USB port: firmware upgrade/flight log data reading
- SDK port: read flight data and send standard commands to flight control
- Ethernet interface: IP: 192.168.2.220:2222
- Wi-Fi hotspot IP: 192.168.2.220:2020; Password: 12345678
- Mobile phone installation kit: used to install a mobile phone or tablet
- Screen: 2.68", 128x64
- Working temperature: -10℃ to 40℃
- Charging time: 3 hours
- Charging power supply: 5V/2A

Battery:
- Rated capacity: 6600mAh
- Voltage: 14.8V
- Type: Smart 4S LiPo
- Energy: 97.68Wh
- Dimensions: 153.6 x 82.4 x 48.3mm/6 x 3.2 x 1.9"
- Weight: 735g (±5g)/1.6 lb (±0.01 lb)
- Working temperature: -10℃ to 40℃
- Charging time: 90 minutes
- Maximum charging power: 84W

Charger:
- Input: 100-240V, 50/60Hz
- Output: 16.8V at dynamic current/5V at 1.5A
- Rated power: 84.5W

Mobile Device Connection:
- Working frequency: 5180-5875MHz
- Maximum transmission distance: 10m/32.8ft (unobstructed, no interference)

APP:
- APP name: for NaviFly
- Real-time view quality: 720p at 30fps
- Delay: <250ms (depending on environmental conditions and mobile devices)

FAC Camera:
- Waterproof grade: IP67
- Weight: about 85G/0.2LB
- Dimensions: 45 x 44 x 40mm/1.8 x 1.7 x 1.6"
- Image Sensor: 1/2.7" 2M for SONY CMOS
- Lens: F2.2mm f/5.06. FOV: 130°
- Burst photos: 3/5/10
- Interval photo time: 1/3/5/10s
- Video Resolution: FHD: 1920*1080 30/60p; HD: 1280*720 120/60p
- Maximum video stream: 30Mbps
- Image format: JPEG
- Video format: MP4/MOV
- Supported memory card: Micro SD card, maximum capacity 64GB, write speed ≥30MB/s, support SD card above C10
- Operating temperature: -10°C to 40°C

PL1-S Payload Release:
- Waterproof grade: IP67
- Dimensions: 59 x 38 x 50mm/2.3 x 1.5 x 2"
- Weight: 96G/0.2LB
- Maximum load: 2KG/4.4LB

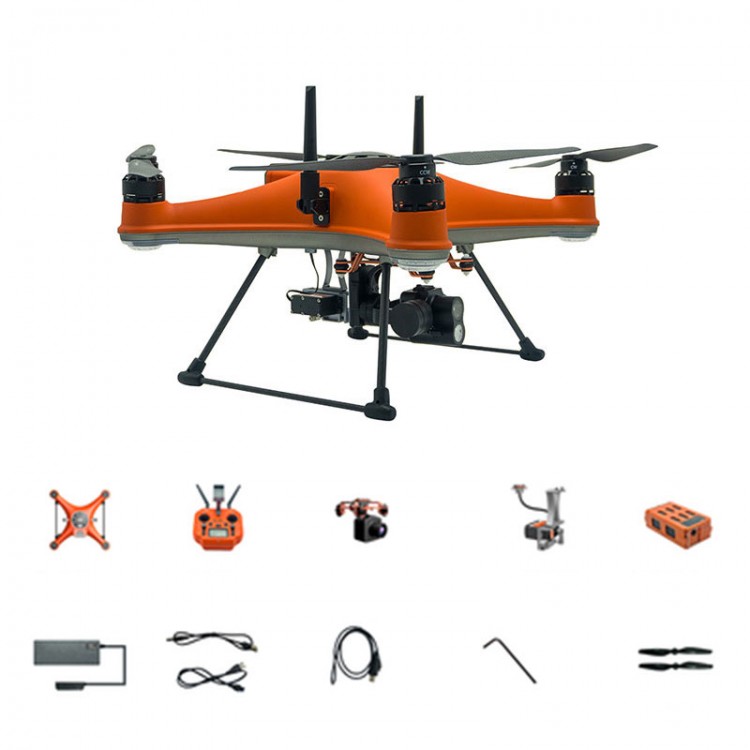

Package Included (Basic Version for Fishing):
1. Aircraft *1
2. Remote control *1
3. Quick release propellers * 2 pairs
4. Smart lithium battery *1
5. Charger *1
6. Charging cable *1
7. USB data cable *1
8. Remote control charging cable *1
9. Manual *1
10. Bag of spare screws *1
11. Suitcase (EPP) *1
12. L hexagon wrench *1
13. FAC camera *1 (The camera has no gimbal, but it can take pictures and videos)
14. Payload Release (PL1-S) *1
