SWGP 6Axis Wireless MPG CNC Handwheel Pendant w/ Emergency Stop 100PPR for FANAC SIEMENS MITSUBISHI
Features:
- 6-Axis manual pulse generator for wireless operation
- Imported emergency stop switch enables 3 expansion buttons to output
- Wireless ISM frequency band 433MHZ
- 10DB transmitting power, -98DB receiving sensitivity, barrier-free distance 60 meters (Depends on practices)
- Anti-interference Design: Built for stable and reliable performance, enabling application of 32 sets of wireless handwheels in the same room, without affecting each other
- Low Power Consumption: It can last for 30 days for normal use

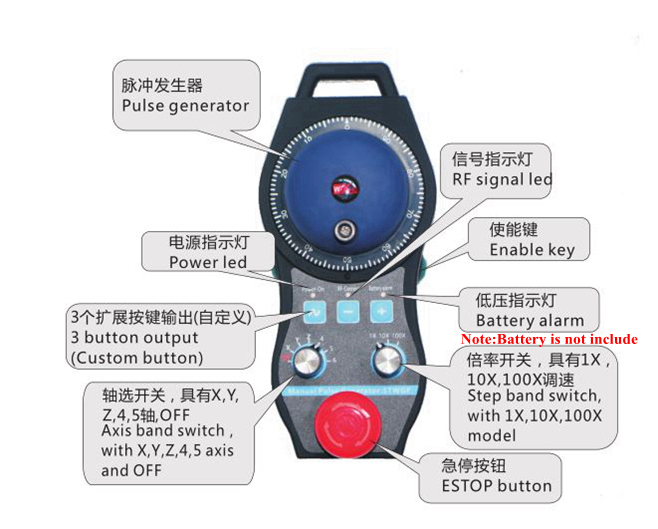

- With axis selection and magnification selection functions
- With high-precision alloy encoder, it works stably and reliably
- It can generate pulses for fast moving machine tools
- Waterproof buttons prevent it from oil and dust
- Premium metal knob switch for long service life
Wireless Transmission Parameters:
- Communications Channel: ISM 433M
- Wireless Transmission Distance: 60m
DC Electric Parameters:
- Handwheel Working Voltage: 2.2V-3.3V
- Handwheel Average Working Current: <10mA

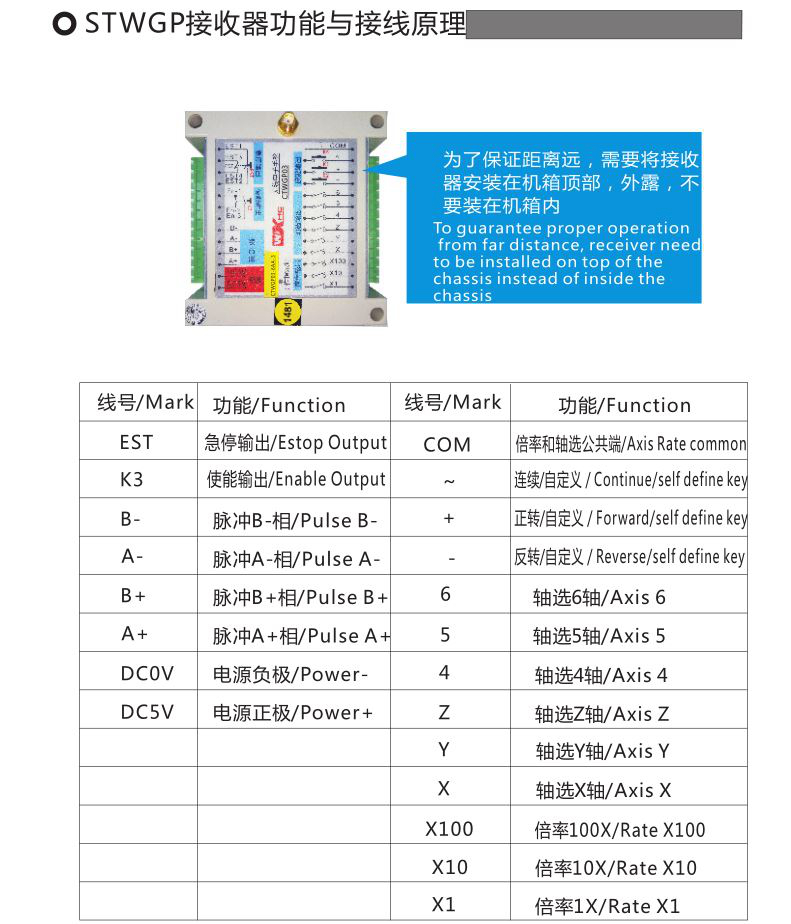

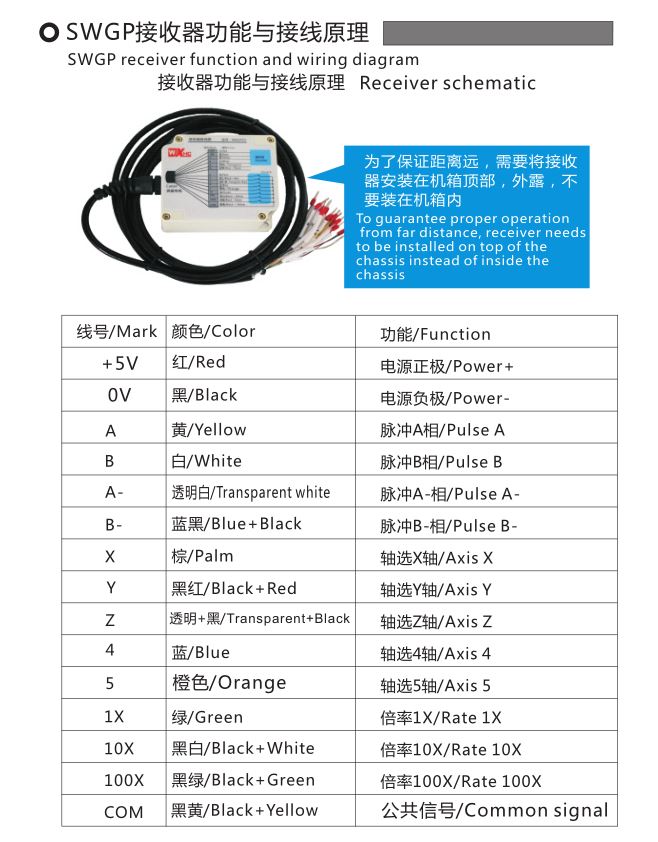

- Receiver Working Voltage: 5V, 12V, 24V
- Receiver Average Working Current: <260mA
Encoder Pulse Output Parameters:
- Encoder: 100PPR
- Pulse Signal Type: Two pulses with A and B phase difference of 90 degrees; A, A-, B, B-phase differential pulses
- Pulse Signal Voltage: Support 5V, 12V, 24V
Axis Selection & Magnification Selection:
- Axis Selection Signal Output Way: Point to Point & Binary Coding Methods
- Magnification Signal Output Way: Point to Point & Binary Coding Methods
Handwheel Performance:
- Transmitting Power: 10DB
- Receiving Sensitivity: -98DB
- Support Axis: Max. 6-Axis
- Materials: ABS, PC, Alloy

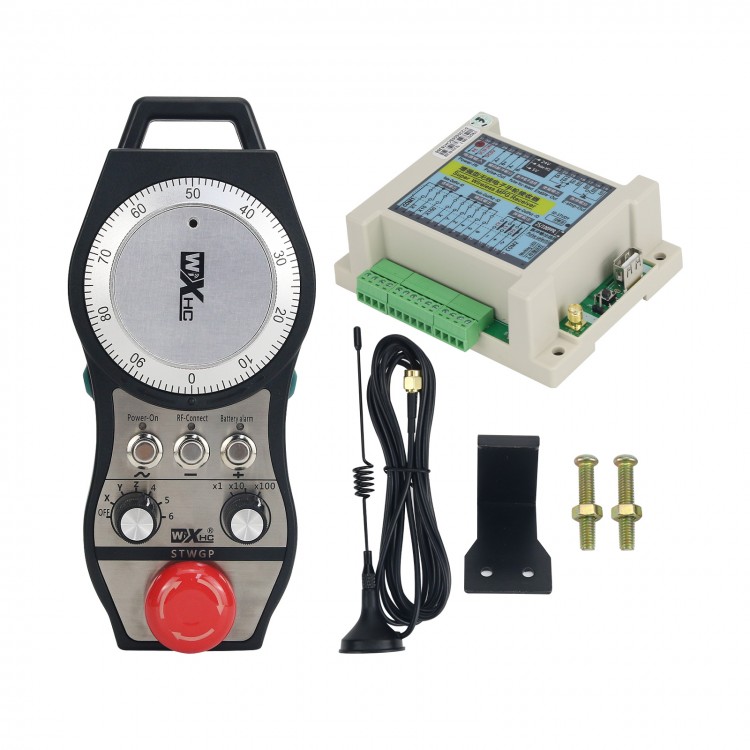

Package Included:
- 1 x Wireless Handwheel
- 1 x Data Cable
- 1 x Receiver
- 1 x Bag of Hooks
- 1 x User Manual
Note:
- Battery is not included in this package.

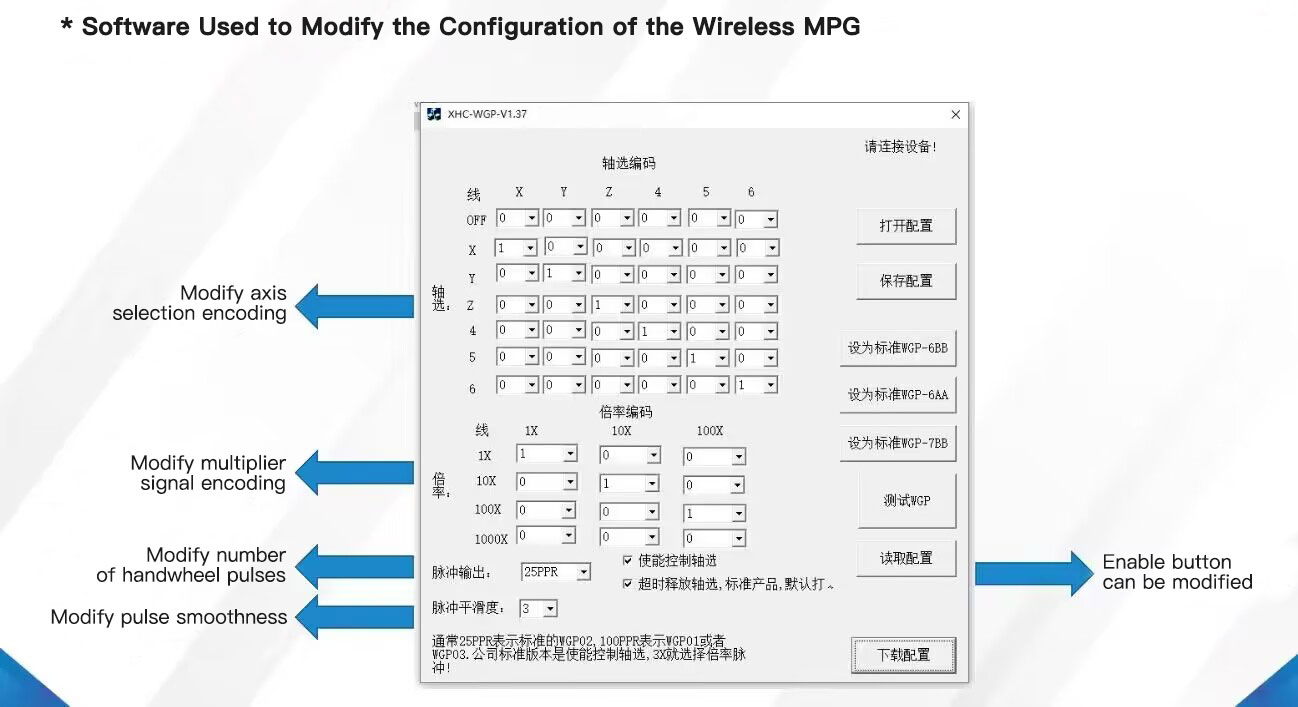

- This product now does not have to distinguish between system parameters. Customers can set the parameters by themselves through the software.
