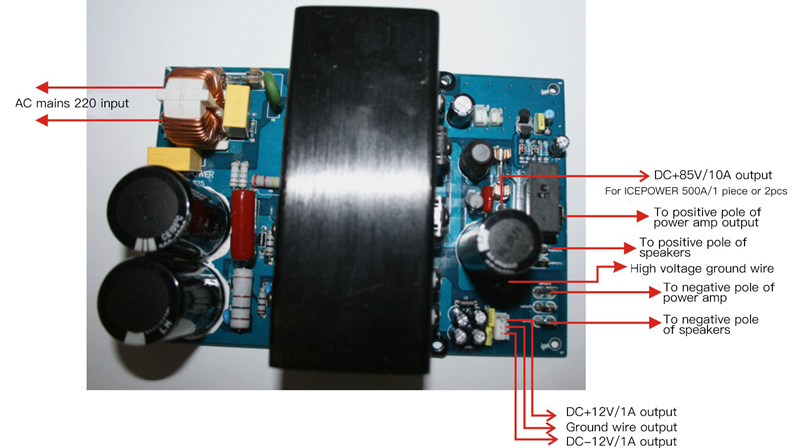

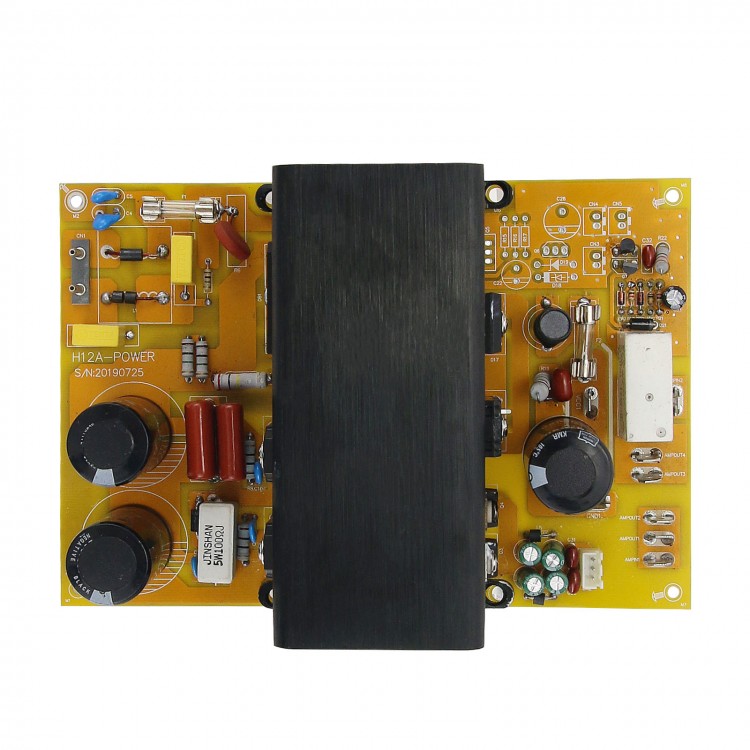

Switching Power Supply Board Single Positive Voltage Power Supply For Digital Power Amplifier ICEPOWER 500A
Features:
1.With a series of protective measures such as perfect soft start, overload and over-current, short-circuit, over-temperature, over-voltage and under-voltage. It makes your amplifier more stable, durable and reliable.
2. More energy saving and environmental protection, less heat, up to several hundred K oscillation frequency, efficiency greater than 90%, reliable performance, extremely high stability, strong protection function, light weight.
3. Powerful power supply, small size, fast conversion speed, more advantages than transformer power supply.
4. Input voltage: AC190V-AC240V or AC100V-AC130V
5. Output power: 2500W
6. Output voltage/current: Taking ground wire as reference power supply voltage: PVCC: DC+90V/15A; Pre-amp power supply: VCC: DC±12V/1A
7. Output ripple noise: 1%, peak-to-peak value (40mVp-p typical value)
8. Application: For Original Danish ICEPOWER 500A digital power amplifier board, all full-bridge CLASS-D digital power amplifier boards, HIFI power amplifier boards
9. Product size: 180mm * 120mm * 62mm
10.Weight: 1Kg
Package Included:
- 1 x Switching Power Supply Board
