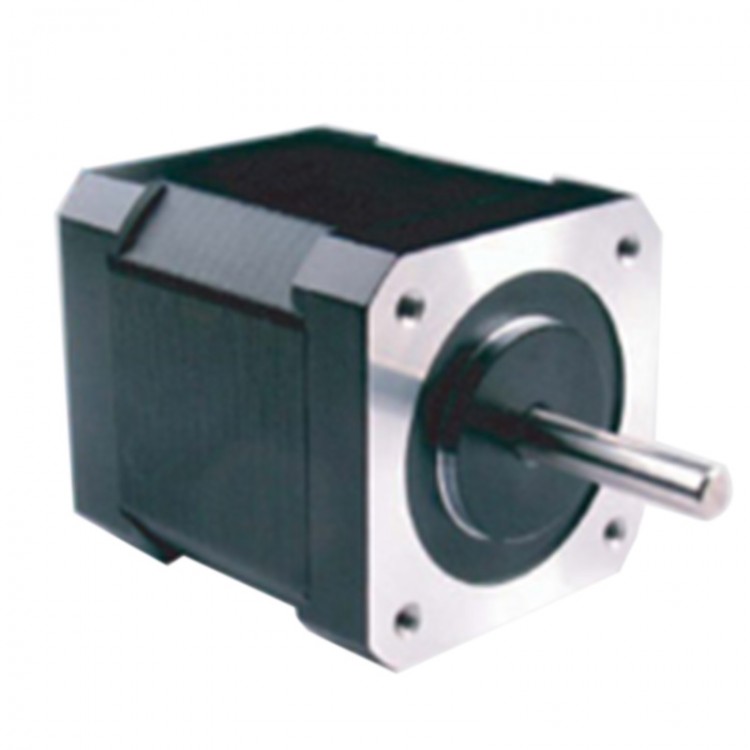

SY42STH33-1334A Stepping Motor 1.8 Degree 2.8V 1.33A 2.2kg-cm Hybrid Motor for CNC
Specification:
- Step angle: 1.8 degree
- Voltage: 2.8V
- Current: 1.33A
- Resistance: 2.1Ohm
- Inductance: 2.5mH
- Holding Torque: 2.2kg-cm
- Number of Leads: 4
- Rotor inertia: 35g/cmxcm
- Weight: 0.22kg
- Detent torque: 120g-cm
- Length: 34mm
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.(rated current, 2phase)
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Dielectric strength:500VAC for one minute
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
- Radial maximum force: 28N
- Rotor maximum force: 10N
- Rotation: CW
Package included:
- 1 x Stepper Motor
