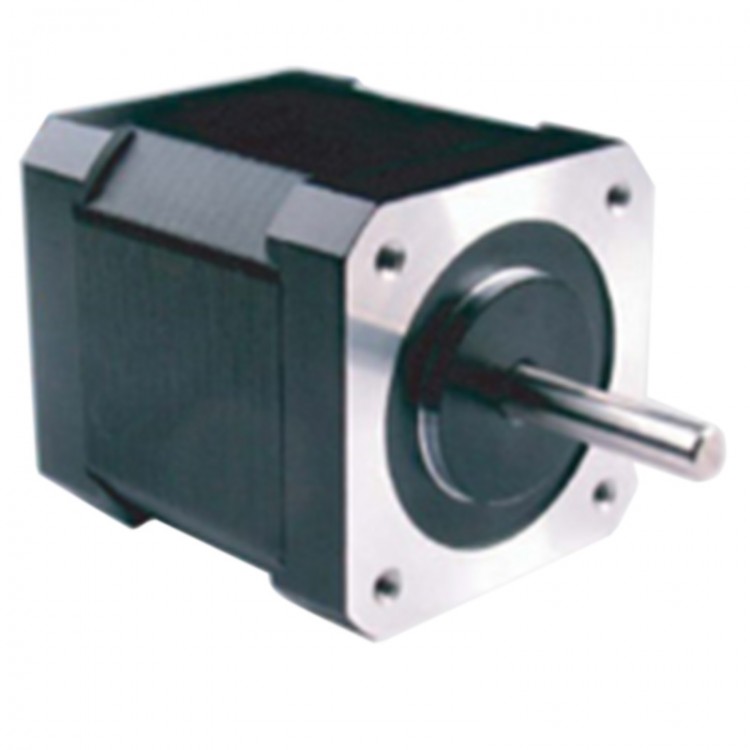

SY42STH47-0406A 12V 0.4A 3.17kg-cm 1.8 Degree Hybrid Stepper Motor for CNC
Parameters:
- Voltage: 12V
- Current: 0.4A
- Resistance: 30Ohm
- Inductance: 25mH
- Holding torque: 3.17kg-cm
- Number of Poles: 6
- Rotor inertia g·cm²: 68
- Weight: 0.35kg
- Detent torque: 200g.cm
- Body Length: 48mm
- Insulation strength: 500V AC 1 Minute
- Temperature rise: 65K
- Environment temperature: -10~55 deg C
- Number of Leads: 8
- Weight: 3.8kg
- Step ange: 1.8 degree
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.(rated current, 2phase)
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Dielectric strength:500VAC for one minute
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
- Radial maximum force: 28N
- Rotor maximum force: 10N
- Rotation: CW
Package included:
- 1 x Stepper Motor
