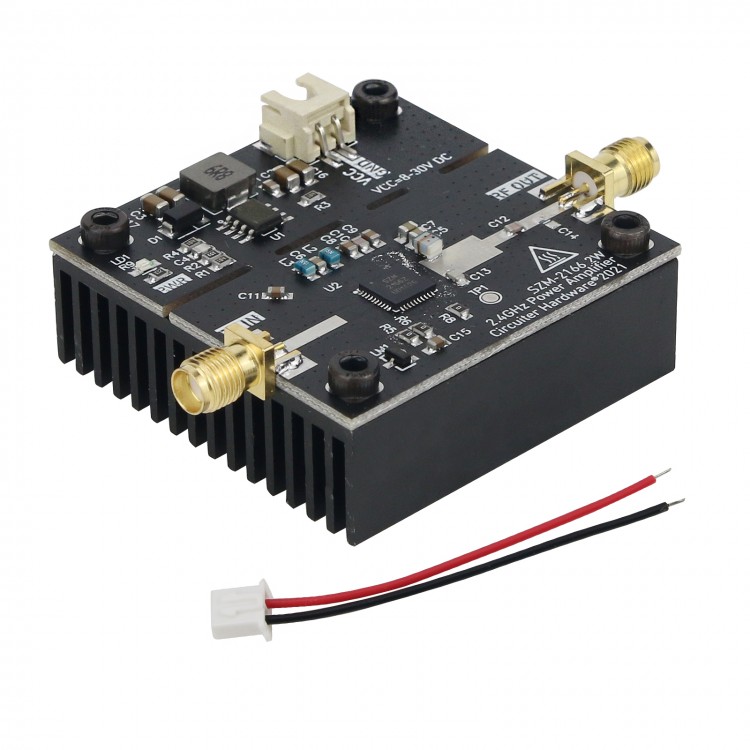

SZM2166 RF Power Amplifier 2.4GHz 2W 33dBm 8-23V DC Wide Voltage Input for Signal Amplification
Description:
This is a 2W 2.4GHz RF power amplifier, and it can be considered as SZA2044 or RF2126. It comes with DC and supports wide voltage input (8-23V).
Specification:
Supply voltage: 8-23V
Frequency: 2300-2500MHz
Working frequency: 2450MHz
Input and output impedance: 50 ohms
Power: 2W (33dBm)
Interface: SMA outer screw inner hole
Antenna type: external
Size: 5 x 5 x 3cm
Application: for signal amplification
Package List:
1 x RF Power Amplifier
