Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $9.20 | $9.01 | $8.73 | $8.36 | Contact US |

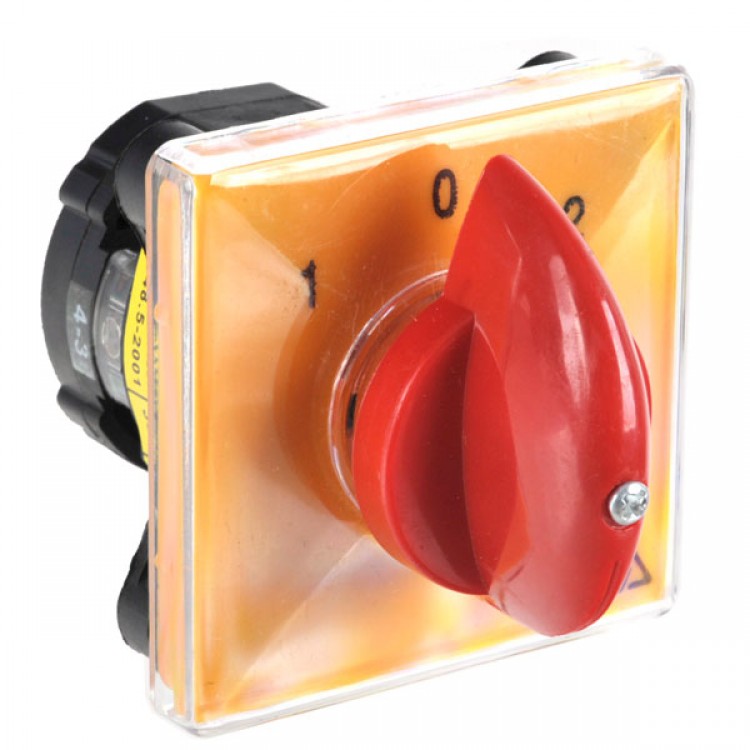

SZW25-1 Universal Changeover Switch Combined Switch Rotary Switch 4.5KW 380V
Specfication:
- Standard:IEC/EN 60947-5-1
- Ui:380V
- Ith:25A le:12A
- Frequency:50/60Hz
- Mechanical life:300000 times
- Electrical life:100000 times
- Poles:3P,3P+N,3P+N+E,6P
- Certificate:ISO9001:2000, ISO14001:1996,CE
- keywords:universal rotary switch, change over switch
Features:
- High quality,high breaking capacity,quick trip and guide installation,competitive price,excellent and safe performance, updated structure,beautiful and compact appearance,good operation, etc
- switch(change-over switch,combined switch,rotary switch
- Product versatility, instead of transition state officially switch, can be used as the circuit control switch, the formal test equipment, motor control switch, switch to control switch and electric switch, and etc
- mounting ways: panel mounting, panel mounting with pad-lock, single lock parallel mounting, doorlock safety mounting, single hole mounting
