| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $39.20 | $38.40 | $37.20 | $35.60 | Contact US |
EX202/2170 Touchpad+Encoder Knob Version DSP2.1 Digital HiFi Stereo Power Amplifier Board 70Wx2+140W Support for TWS
$48.13
EX202/2170 Touchpad Version DSP2.1 Digital HiFi Stereo Power Amplifier Board 70Wx2+140W Support for TWS
$47.16
EX202/2170 Encoder Knob Version DSP2.1 Digital HiFi Stereo Power Amplifier Board 70Wx2+140W Support for TWS
$46.19

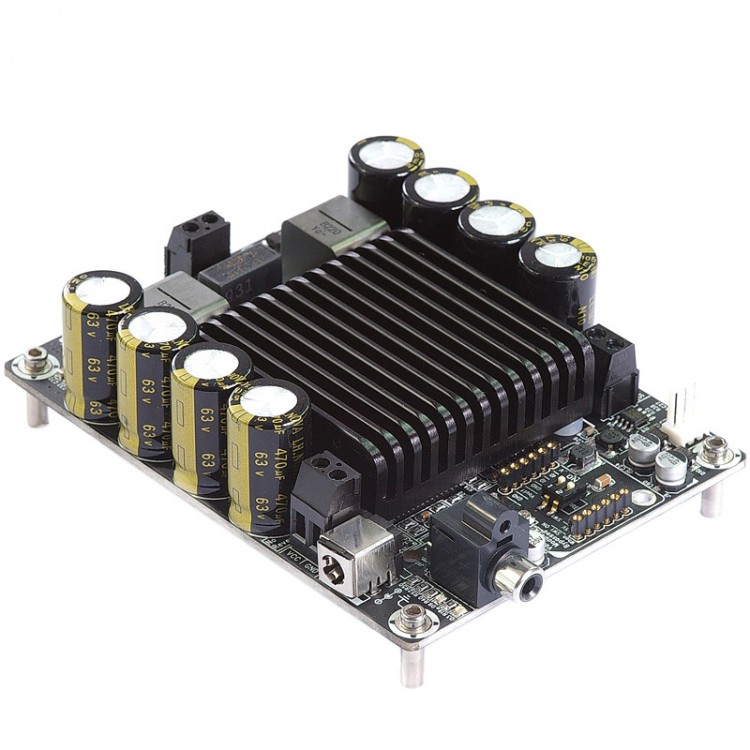

T-AMP DC 36V 1x200W 3Ohm HIFI Class D Digital Audio Stereo Amplifier Board for Car
| Parameters | Condition | Minimum | Typical | Maximum |
| Voltage (V) | 15 | 34 | 36 | |
| Stereo power(W) | Fan is on, SD is suspended | 4.6 | 8 | |
| Fan is on, SD is suspended | 3.9 | 7 | ||
| Input sensitivity(V) | 3Ohm, 300W,1KHz | 1.3 | 1.8 | |
| Input impedance(KOhm) | 10 | 11 | ||
| Gain(%) | 26 | |||
| Output power(W rm s) | 3Ohm THD+N 1% 150 | 150 | ||
| 3Ohm THD+N 10% | 200 | |||
| Efficiency(%) | 85 | 93 | ||
| Minimum loading(Ohm) | 2 | |||
| Frequency respond(KHz) | SD is suspended | 700 | ||
| Operating temperature(deg C) | 20 | 50 | ||
| SNR(db) | 260W 3Ohm THD+N 1% | 96 | 101 |
- Weight: 420g-+20g
- Size: 121.92mmx91.44mm-+0.2mm (LXW); 24.92-+2MM (H)
Package included:
- 1 x Amplifier Board
