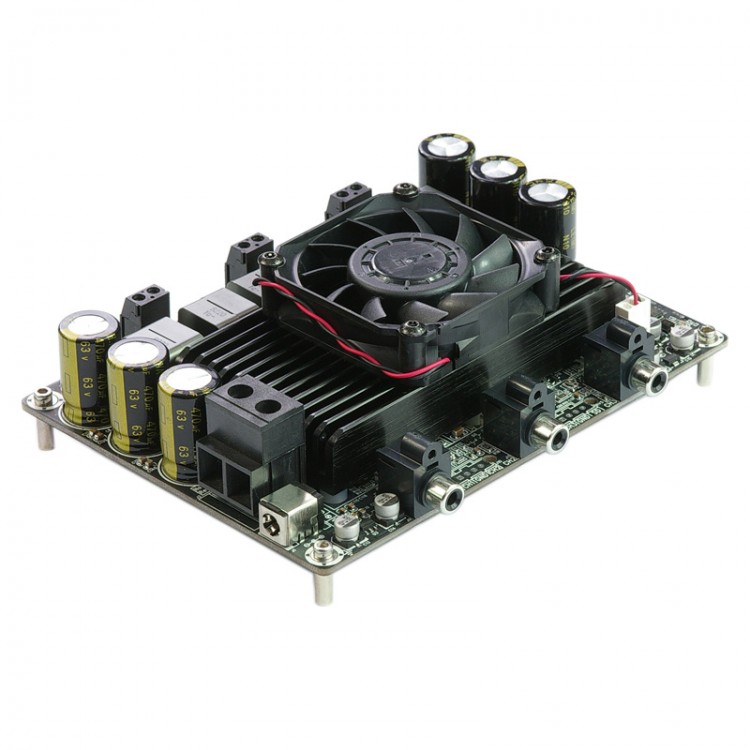

T-AMP DC48V 3 Channel Class D Amplifier Board 3x400W HIFI Stereo Subwoofer for Audio
Description:
Power amplifier board is three channels, 3x400W, high power D class digital amplifier board, stereo adn hifi, load 3 ohm, DC48V power supply.
Parameter | Condition | Minimum | Typical Value | Maximum |
Voltage(V) | 24 | 46 | ||
Static power(W) | Fan is on, SD suspended | 18 | 22 | |
Fan is off, SD suspended | 14.8 | 18 | ||
Input sensitivity | 3Ohm,400W,1KHz | 1.24 | ||
Input impedance(KOhm) | 33 | |||
Gain(db) | 28.5 | 30.5 | 32.5 | |
Input power(W rm s) | 3Ohm THD+N 1% | 270 | ||
3Ohm THD+N 10% | 400 | |||
Efficiency(%) | 400W 3Ohm | 90 | 95 | |
Minimum load(Ohm) | 2.5 | |||
Frequency response(KHz) | SD is suspended | 700 | ||
Operating temperature(deg C) | 20 | 50 | ||
SNR(db) | 270W 3Ohm THD+N 1% | 96 |
- Weight: 680-+20g
- Size: 152.4*114.3*37.6-+2mm
Package included:
- 1 xAmplifier Board
