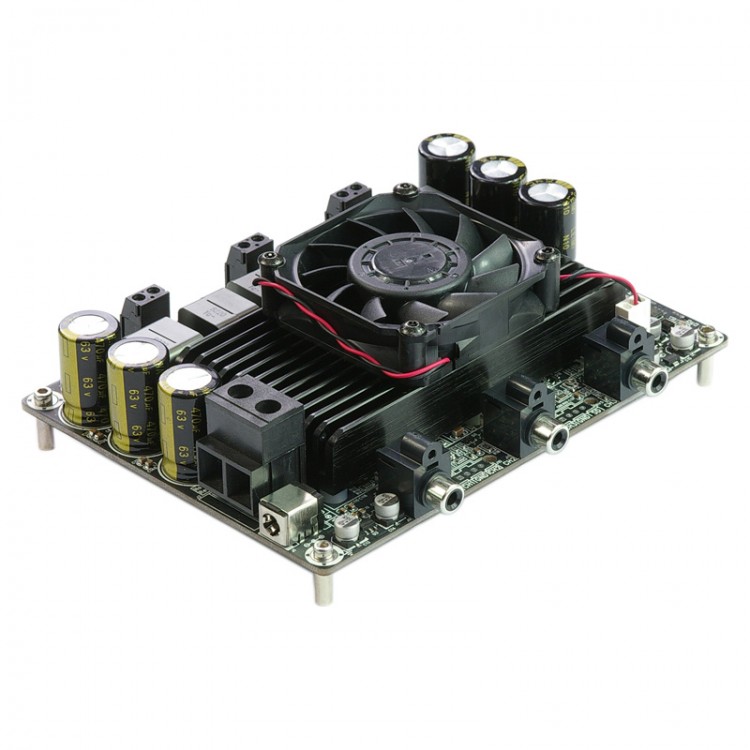

T-AMP DC48V 3 Channel Class D Amplifier Board 3x500W HIFI Stereo Subwoofer for Audio
Description:
Power amplifier board is three channels, 3x500W, high power D class digital amplifier board, stereo adn hifi, load 3 ohm, DC48V power supply.
| Parameter | Condition | Minimum | Typical Value | Maximum |
| Voltage(V) | 24 | 50 | ||
| Static power(W) | Fan is on, SD suspended | 20 | 25 | |
| Fan is off, SD suspended | 16.5 | 18 | ||
| Input sensitivity | 3Ohm,500W,1KHz | 1.44 | ||
| Input impedance(KOhm) | 33 | |||
| Gain(db) | 28.5 | 30.5 | 32.5 | |
| Input power(W rm s) | 3Ohm THD+N 1% | 312 | ||
| 3Ohm THD+N 10% | 500 | |||
| Efficiency(%) | 500W 3Ohm | 92 | 97 | |
| Minimum load(Ohm) | 2.5 | |||
| Frequency response(KHz) | SD is suspended | 600 | ||
| Operating temperature(deg C) | 20 | 50 | ||
| SNR(db) | 312W 3Ohm THD+N 1% | 92 |
- Weight: 680-+20g
- Size: 152.4*114.3*37.6-+2mm
Package included:
- 1 xAmplifier Board
