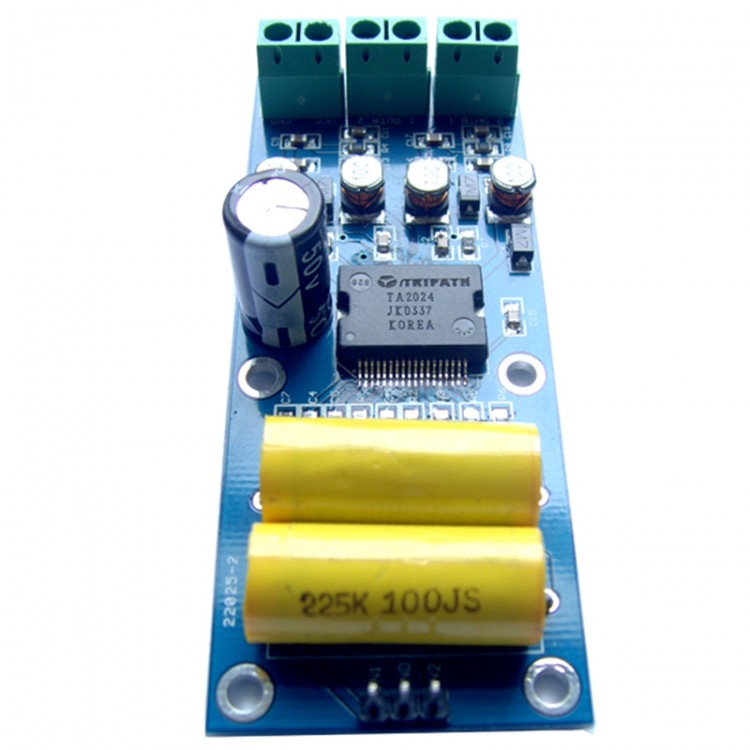

T Class TA2024 Digital Amplifier HIFI 12V 15W Car Amp Development Board
Description:
TA2024 power amplifier module takes Class T amplifier chip TA2024 as the core.The module uses a single power supply that the positive and negative poles can not be reversed.The output power of each channel is up to 15W . None of them requires heat sink.
Parameter:
- Operating voltage range: single supply DC12V, current 3A above
- Output power (VS=12V):
10W (8ohm, 10% THD+N, the highest efficiency:88%)
15W (4ohm, 10% THD+N, the highest efficiency:81%)
- Hifi performance:
0.04% total harmonic distortion + noise (9Wrms, 4ohm)
0.18% intermodulation distortion (1Wrms, 4ohm)
- Speaker: 4ohm or 8ohm with any inactive speaker.The best use of the impedance is 4 Ohm. The sensitivity is better.
Package includes:
1 x Car Amp Development Board
