T-Display 16MB ESP32 Module WiFi Bluetooth Module 1.14-Inch LCD Development Board For Arduino IoT

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.92
  • Price in reward points: 189 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.54 $18.16 $17.60 $16.84 Contact US
Quantity:

T-Display 16MB ESP32 Module WiFi Bluetooth Module 1.14-Inch LCD Development Board For Arduino IoT

Features:

1. Color screen
2. Low power consumption
3. Add charging circuit
4. Added custom buttons

Specifications:
Hardware Specifications:
- Chipset: ESPRESSIF-ESP32 240MHz for Xtensa single-/dual-core 32-bit LX6 microprocessor
- FLASH: QSPI flash 4MB or 16MB
- SRAM: 520KB SRAM
- Button: Reset
- USB to TTL: CP2104
- Modular interface: UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, capacitor touch sensor, DACLNA pre-amplifier
- Display: IPS ST7789V 1.14Inch
- Working voltage: 2.7V-4.2V
- Working current: About 67MA
- Sleep current: About 350uA
- Working temperature range: -40℃ to +85℃
- Size & Weight: 51.52*25.04*8.54mm (7.81g)

Power Supply Specifications:
- Power Supply: USB 5V/1A
- Charging current: 500mA
- JST Connector: 2Pin 1.25mm
- USB: Type-C

Wi-Fi Description:
- Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
- Protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU polymerization, support 0.4uS Protection interval
- Frequency range: 2.4GHz~2.5GHz (2400M~2483.5M)
- Transmit Power: 22dBm
- Communication distance: 300m

Bluetooth Description:
- Protocol: Meet bluetooth v4.2BR/EDR and BLE standard
- Radiofrequency: With-97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
- Audio frequency: CVSD&SBC audio frequency

Software Specification:
- Wi-Fi Mode: Station/Soft AP/Soft AP+Station/P2P
- Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
- Encryption Type: AES/RSA/ECC/SHA
- Firmware upgrade: UART download/OTA (Through network/host to download and write firmware)
- Software Development: Support cloud server development/SDK for user firmware development
- Networking protocol: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
- User Configuration: AT + Instruction set, cloud server, for Android/iOS app
- OS: Free RTOS

Product Details Information Code Link:
https://github.com/Xinyuan-LilyGO/TTGO-T-Display

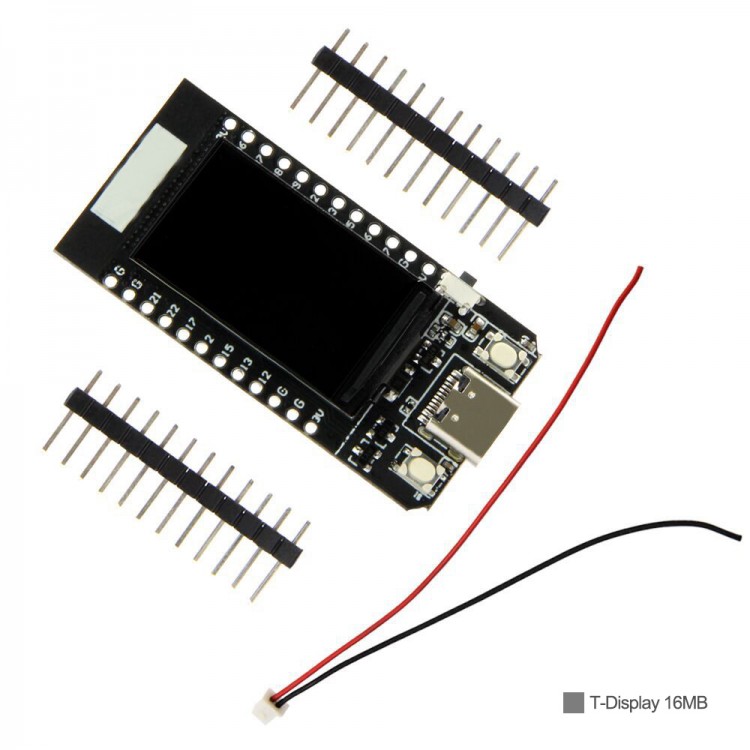

Package Included:
- 1 x TT-Display (4MB or 16MB)
- 1 x Charging Cable
- 2 x Pin Headers

Note:
- Battery is not included. A 3.7V lithium battery is recommended.
