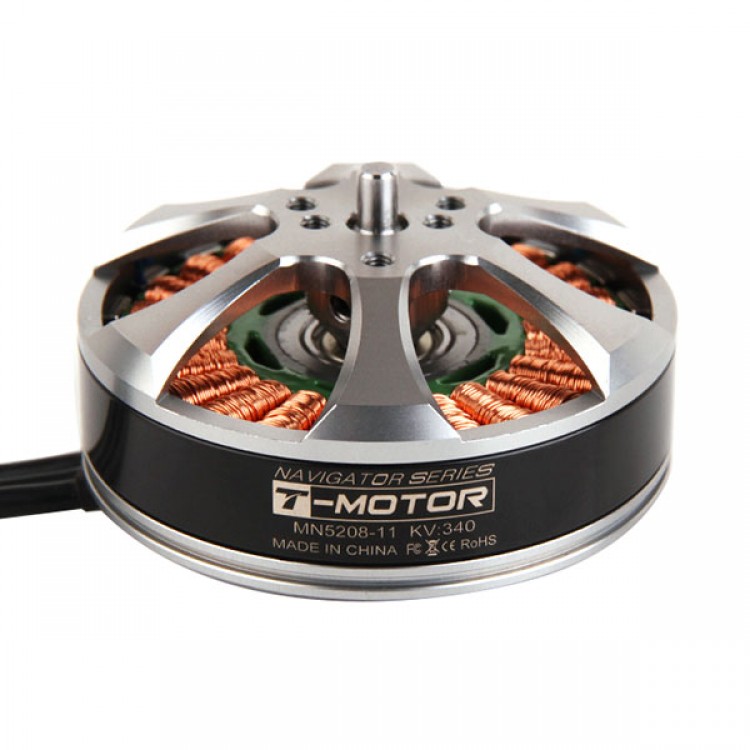

T-Motor Navigator Series MN5208 KV340 24N22P for Quad Hexa Octa Multicopter
Specifications:
- KV.....................................................................................340
- Configu ration...............................................................24N22P
- Stator Diameter...............................................................52mm
- Stator Length....................................................................8mm
- Shaft Diameter..................................................................6mm
- Motor Dimensions(Dia.*Len)...................................Φ59×29.5mm
- Weight (g).........................................................................145g
- ldle current(10)@10v(A).......................................................0.9A
- No.of Cells(Lipo)..................................................................4-6S
- Max Continuous current(A)180S.............................................35A
- Max Continuous Power(W)180S..........................................850W
- Max. efficiency current...............................................(5-10A)>84%
- internal resistance...............................................................93mΩ
