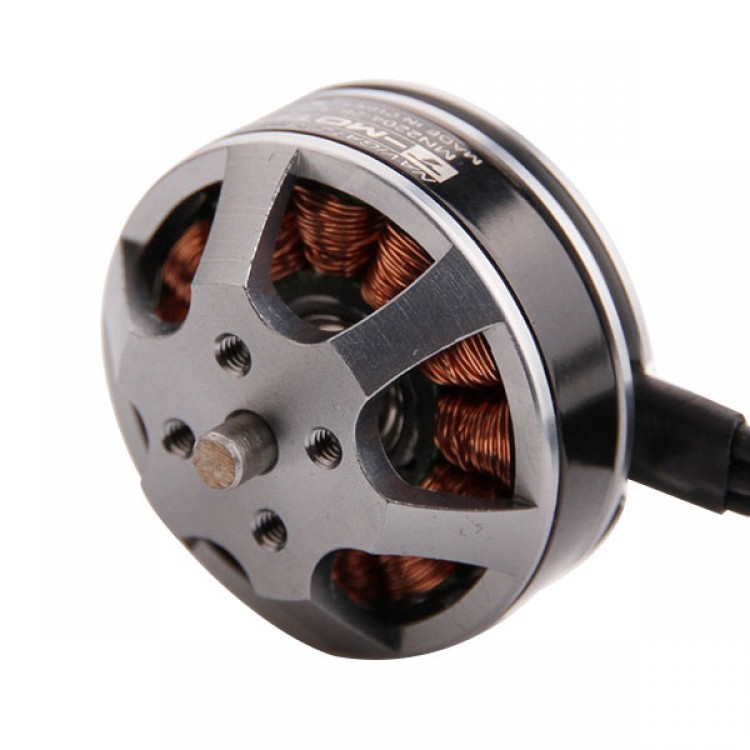

T-motor Navigator Series Motor MN2204 1400KV for Quad Hexa Octa Multicopter
Specifications:
KV..............................................................................................................1400
Configu ration....................................................................................12N14P
Stator Diameter....................................................................................22mm
Stator Length..........................................................................................4mm
Shaft Diameter.......................................................................................2mm
Motor Dimensions(Dia.*Len)...............................................Φ27×16.5mm
Weight (g)...................................................................................................23g
ldle current(10)@10v(A)..........................................................................0.3A
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)180S...............................................................8A
Max Continuous Power(W)180S...........................................................88W
Max. efficiency current.................................................................(2.2-6A)80%
internal resistance..............................................................................290mΩ
