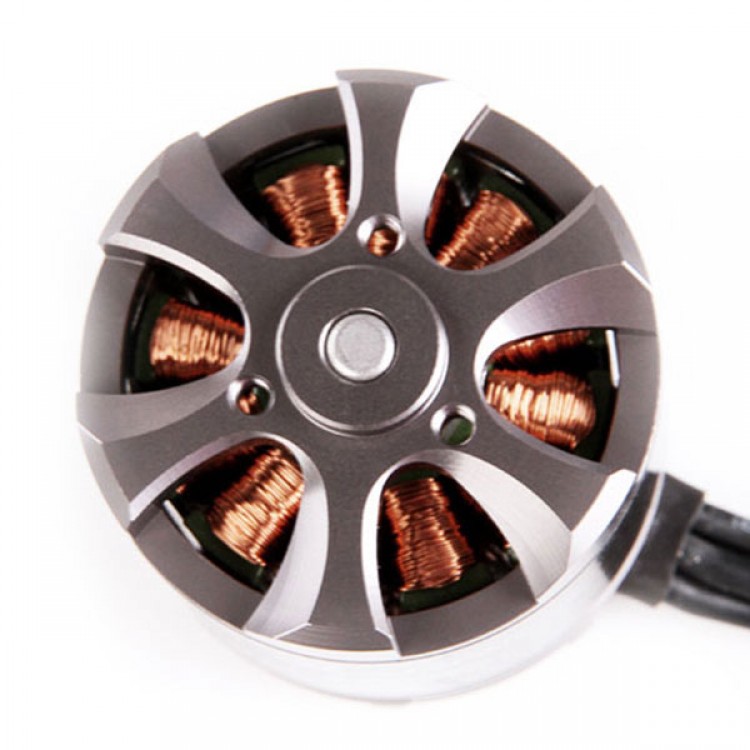

T-motor Professional Series Motor MT3520 400KV for Quad Hexa Octa Multicopter
Specifications:
KV................................................................................................................400
Configu ration...................................................................................12N14P
Stator Diameter....................................................................................35mm
Stator Length........................................................................................20mm
Shaft Diameter.......................................................................................5mm
Motor Dimensions(Dia.*Len)..................................................Φ43×45mm
Weight (g)................................................................................................205g
ldle current(10)@10v(A).........................................................................1.2A
No.of Cells(Lipo).....................................................................................4-8S
Max Continuous current(A)180S............................................................38A
Max Continuous Power(W)180S......................................................1140W
Max. efficiency current..............................................................(4-13A)>83%
internal resistance................................................................................32mΩ
