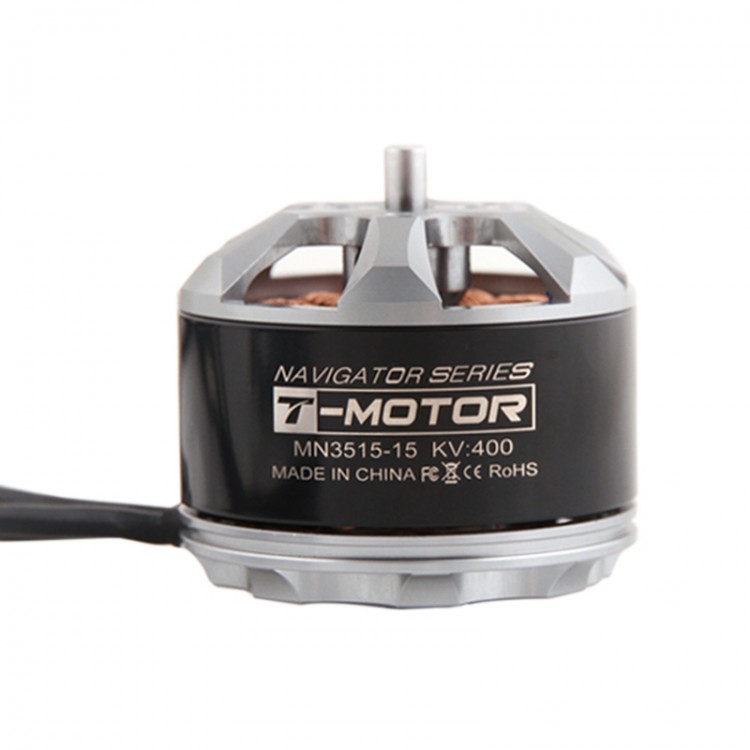

T-MOTOR Series MN3515 Navigator Series Motor for Quad Hexa Octa Multicopter
Specifications:
KV.................................................................................................................400
Configu ration....................................................................................12N14P
Stator Diameter....................................................................................35mm
Stator Length........................................................................................15mm
Shaft Diameter........................................................................................4mm
Motor Dimensions(Dia.*Len)............................................Φ42.5×34.5mm
Weight (g).................................................................................................183g
ldle current(10)@10v(A)..........................................................................0.3A
No.of Cells(Lipo)......................................................................................4-8S
Max Continuous current(A)180S.............................................................30A
Max Continuous Power(W)180S.........................................................900W
Max. efficiency current............................................................(10-18A)>80%
internal resistance...................
