Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $30.63 | $30.01 | $29.07 | $27.82 | Contact US |

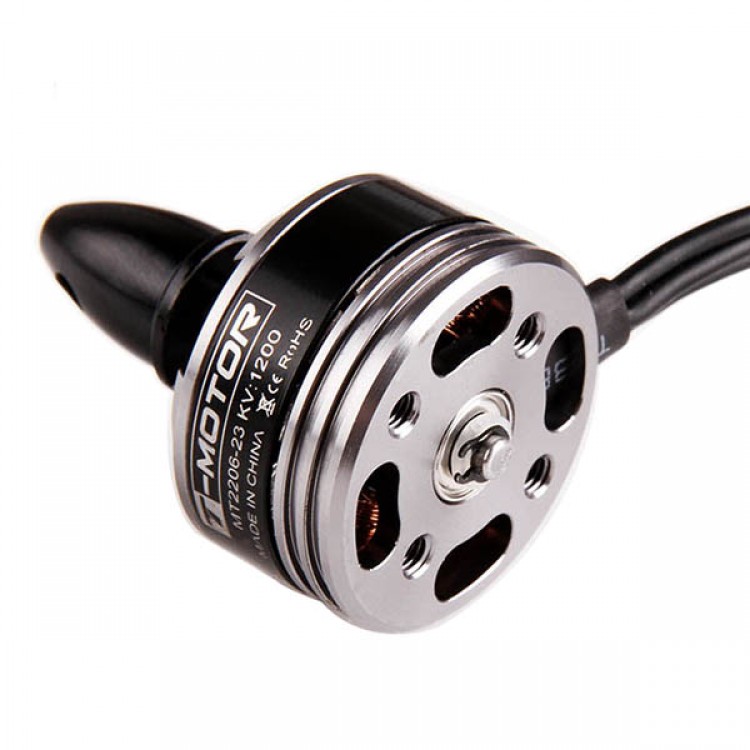

T-Motor Tiger Brushless Motor M2206(upgrade to MN 2206) 1200 KV for Multirotor Quad/ Hexa /OctaCopter
Features:
- All of our motors come with extremely permanently lubricated EZO ball bearings from Japan.
- All the stators of our motor are made with NO.1200#0.2mm sukucib laminations from Japan for maximum efficiency and minimum eddy current losse. High quality stator plates are epoxy coated on the inner surface to prevent winding shorts
- Specially designed N45uh magnets with a 200 C (392 F) temperature rating for trouble-free operation.
- All motors sound and feel perfect, the bearings sound great, they don’t sound at all.
- Oxygen-free copper wire temperature of 180 degrees is used in winding the motors.
- CNC Machined aluminum front and rear housing with cooling holes that pump air through the motor while it runs.
- Orderly winding configuration
- Offering perfect balance movement performance.
- Rear threaded mounting holes with both hole spacing fit a variety of applications.
- A machined aluminum cross style mount and a threaded prop mount is included with every motor, along with a wobbly adapter on select models.
- To sum up, creating a high quality T-motor motor
Specifications:
KV...............................................................................................................1200
Configu ration....................................................................................12N14P
Stator Diameter....................................................................................22mm
Stator Length...........................................................................................6mm
Shaft Diameter........................................................................................3mm

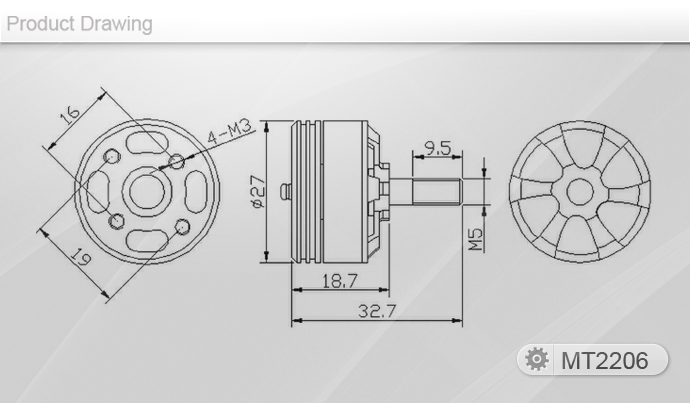

Motor Dimensions (Dia.*Len)...............................................Φ27×18.7mm
Weight (g)...................................................................................................30g
ldle current(10)@10v(A)..........................................................................0.2A
No.of Cells(Lipo)......................................................................................2-3S
Max Continuous current(A)180S.............................................................10A
Max Continuous Power(W)180S.........................................................110W
Max. efficiency current.................................................................(1-5A)>81%
internal resistance..............................................................................258mΩ
