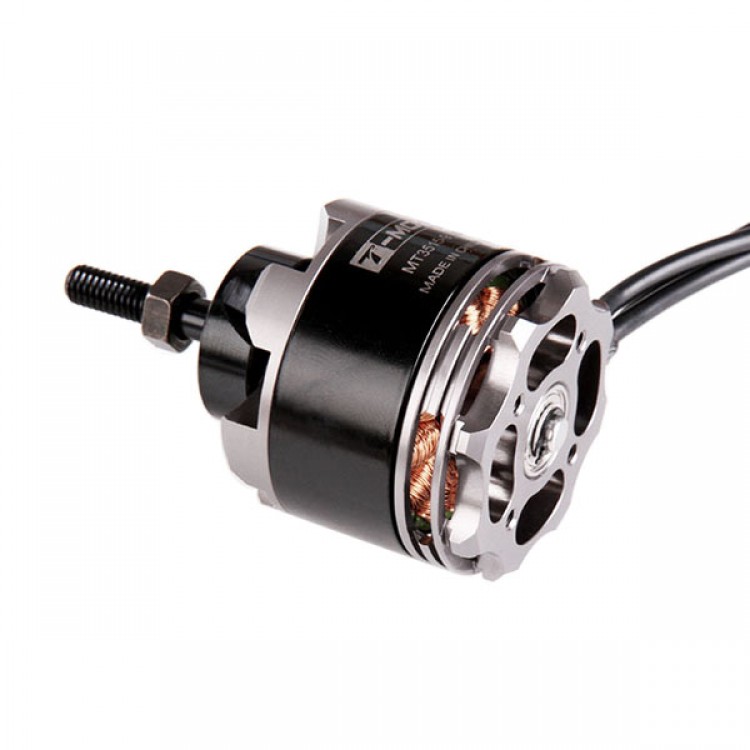

T-Motor Tiger Disk Brushless Motor MT3515 400KV 5S-6S for Multi-rotor Quad Hexa OctoCopter
Features:
- 600mm soft silicone power wires
- Sealed Japanese EZO bearings
- Short, hardened Japanese steel shaft
- 0.2mm NdFeB stator plates

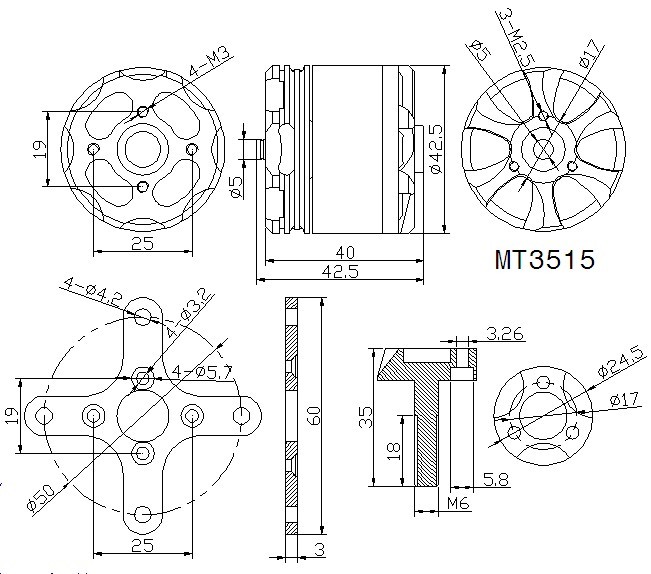

Includes radial mount and prop adapter (as shown).
| RPM/V | 400Kv |
| Number of cells | 5~6S LiPo |
| Resistance | 116mΩ |
| No Load Current | 0.3 |
| Max. efficiency current | 10~18A |
| Max. Amps | 28A continuous |
| Max Power (Watts) | 610W continuous |
| Size | 42.5x38mm |
| Weight | 188g |
| Shaft diameter | 5mm |
| Suggested Prop Size | 15x4~16x7 (5S), 14x4~15x8(6S) |
| Motor: MT3515-15 KV:400 | ||||||||||
| Technical Datas | ||||||||||
| KV | 400 | |||||||||
| Configu-ration | 12N14P | |||||||||
| Stator Diameter | 35mm | |||||||||
| STator Length | 15mm | |||||||||
| Shaft Diameter | 5mm | |||||||||
| Motor Dimension(Dia.﹡Len) | Φ42.5×38mm | |||||||||
| Weight(g) | 188G | |||||||||
| ldle current(10)@10v(A) | 0.3 | |||||||||
| No.of Cells(Lipo) | 3S-8S | |||||||||
| Max Continuous current(A)180S | 28A | |||||||||
| Max Continuous Power(W)180S | 610 | |||||||||
| Max. efficiency current | (10-18A)>80% | |||||||||
| internal resistance | 89mΩ | |||||||||
| Volts(V) | Prop | Throttle |
Amps (A) |
Watts (W) |
Thrust (G) |
Thrust (OZ) |
RPM |
Efficiency (G/W) |
Efficiency (OZ/W) |
Remark |
| 18.5 | APC14*4.7 | 50% | 2.8 | 51.8 | 690 | 24.34 | 3390 | 13.32 | 0.47 | |
| 65% | 5.9 | 109.15 | 1100 | 38.80 | 4268 | 10.08 | 0.36 | |||
| 75% | 9.3 | 172.05 | 1440 | 50.79 | 4870 | 8.37 | 0.30 | |||
| 85% | 12.3 | 227.55 | 1740 | 61.38 | 5295 | 7.65 | 0.27 | |||
| 100% | 16.4 | 303.4 | 2070 | 73.02 | 5770 | 6.82 | 0.24 | |||
| APC15*4 | 50% | 2 | 37 | 540 | 19.05 | 3754 | 14.59 | 0.51 | ||
| 65% | 3.7 | 68.45 | 790 | 27.87 | 4595 | 11.54 | 0.41 | |||
| 75% | 6.3 | 116.55 | 1130 | 39.86 | 5460 | 9.70 | 0.34 | |||
| 85% | 7.7 | 142.45 | 1320 | 46.56 | 5820 | 9.27 | 0.33 | |||
| 100% | 10.5 | 194.25 | 1650 | 58.20 | 6420 | 8.49 | 0.30 | |||
| 22.2 | APC13*4 | 50% | 2 | 44.4 | 540 | 19.05 | 4645 | 12.16 | 0.43 | |
| 65% | 3.5 | 77.7 | 820 | 28.92 | 5657 | 10.55 | 0.37 | |||
| 75% | 5.8 | 128.76 | 1170 | 41.27 | 6737 | 9.09 | 0.32 | |||
| 85% | 7.8 | 173.16 | 1420 | 50.09 | 7415 | 8.20 | 0.29 | |||
| 100% | 9.5 | 210.9 | 1630 | 57.50 | 7902 | 7.73 | 0.27 | |||
| APC14*4.7 | 50% | 4.3 | 95.46 | 980 | 34.57 | 4045 | 10.27 | 0.36 | ||
| 65% | 7.1 | 157.62 | 1380 | 48.68 | 4785 | 8.76 | 0.31 | |||
| 75% | 11.7 | 259.74 | 1850 | 65.26 | 5470 | 7.12 | 0.25 | |||
| 85% | 16.7 | 370.74 | 2300 | 81.13 | 6034 | 6.20 | 0.22 | |||
| 100% | 21 | 466.2 | 2640 | 93.12 | 6505 | 5.66 | 0.20 | |||
| APC15*4 | 50% | 2.9 | 64.38 | 720 | 25.40 | 4510 | 11.18 | 0.39 | ||
| 65% | 4.9 | 108.78 | 1060 | 37.39 | 5335 | 9.74 | 0.34 | |||
| 75% | 8.5 | 188.7 | 1580 | 55.73 | 6360 | 8.37 | 0.30 | |||
| 85% | 10.9 | 241.98 | 1880 | 66.31 | 6865 | 7.77 | 0.27 | |||
| 100% | 13.7 | 304.14 | 2220 | 78.31 | 7395 | 7.30 | 0.26 | |||
| 29.6 | APC13*4 | 50% | 3 | 88.8 | 910 | 32.10 | 5890 | 10.25 | 0.36 | |
| 65% | 5.3 | 156.88 | 1300 | 45.86 | 7115 | 8.29 | 0.29 | |||
| 75% | 8.8 | 260.48 | 1880 | 66.31 | 8450 | 7.22 | 0.25 | |||
| 85% | 11.2 | 331.52 | 2200 | 77.60 | 9085 | 6.64 | 0.23 | |||
| 100% | 14.6 | 432.16 | 2630 | 92.77 | 9908 | 6.09 | 0.21 | |||
| APC14*4.7 | 50% | 6.5 | 192.4 | 1510 | 53.26 | 4988 | 7.85 | 0.28 |
hot |
|
| 65% | 10.5 | 310.8 | 2060 | 72.66 | 5777 | 6.63 | 0.23 | |||
| 75% | 16.9 | 500.24 | 2750 | 97.00 | 6690 | 5.50 | 0.19 | |||
| 85% | 24.7 | 731.12 | 3290 | 116.05 | 7300 | 4.50 | 0.16 | |||
| 100% | 30.2 | 893.92 | 3750 | 132.28 | 7850 | 4.20 | 0.15 | |||
| APC15*4 | 50% | 4.4 | 130.24 | 1180 | 41.62 | 5590 | 9.06 | 0.32 | ||
| 65% | 7.7 | 227.92 | 1760 | 62.08 | 6720 | 7.72 | 0.27 | |||
| 75% | 12.2 | 361.12 | 2440 | 86.07 | 7810 | 6.76 | 0.24 | |||
| 85% | 17.4 | 515.04 | 3090 | 108.99 | 8600 | 6.00 | 0.21 | |||
| 100% | 20.9 | 618.64 | 3450 | 121.69 | 9137 | 5.58 | 0.20 | |||
