T1 Flight Controller GPS FCU PMU LIU OSD Module for FPV Multicopter UAV

T1 Flight Controller GPS FCU PMU LIU OSD Module for FPV Multicopter UAV

Description:
T1 is the flight control system for multicopter and UAV, providing 7 core double-backup system. It supports Windows, iOS and Android and so on.

Parameter:
- Support 4-axis(type I and type X)
- Support 6-axis(type I/V, IY coaxial and propellers,YI coaxial and propellers)
- Support 8-axis (type I/V, X coaxial and propellers)
- Support less than 400Hz PWM ESC
- Maximum output channel: 8 channels
- Recommended remote controller: PCM or 2.4Ghz, at least 7 channels and support the out-of-control protection for all channel
- Support receiver: SBUS, PPM and PWM receiver
- CPU core: 5
- Operarting voltage: 3-6S
- Power consumption: <8W
- Operating temperature: -20~60 deg C
- Storage temperature: -40~60 deg C
- Shock resistant grade: <6.06g

Flight characteristics:
- Hovering accuracy: Horizontal -+0.8m; vertical -+0.3m
- Maximum tilt angle: 35degree
- Maximum Yaw rate: 150 deg/s
- Maximum vertial speed: 6m/s
- Maximum  waypoints: 128
- Wind resistance: Sustained wind: 5 level; gust:6 level
- Built-in flight function: Attitude model; intelligent course mode;GPS mode;course flight mode;guidance Mode;Interest point surround mode;Out of control in hover and return; low battery alarm protection

Hardware specification:
- FCU module dimensions:16.9mm×51.5mm×36.0mm; Wight:39.4g
- PMU module dimensions:10.5×39.0mm×31.0mm; Wight:25.9g
- LIU module dimensions:7.5mm×24.5mm×24.5mm; Wight:18.8g
- GPS module dimensions:13.6mm×57.0mm×57.5mm; Wight:33.7g
- OSD module dimensions:7.7mm×33.0mm×24.5mm; Wight:20.6g
- IMU module dimensions:17.2mm×41.6mm×32.1mm; Wight:28.7g

Features:
- The sub module is connected through CAN BUS with individually processor. 5 cores
- Built-in shock absorption design
- Support nini kinds of multicopter
- Support SBUS,PPM and PWM receiver
- Robust servo control algorithm
- High precision fixed point hover
- Strong magnetic field interference
- Out-of control protection
- Low voltage alarm and protection
- Broken propeller protection. In the absence of a propeller power output, the aircraft can sacrifice the axis and maintain the flight attitude to return
- Suppoty PC and phone
- External IMU expansion
- The aricraft can get to the destination automatically by pointing the target on the map interface.

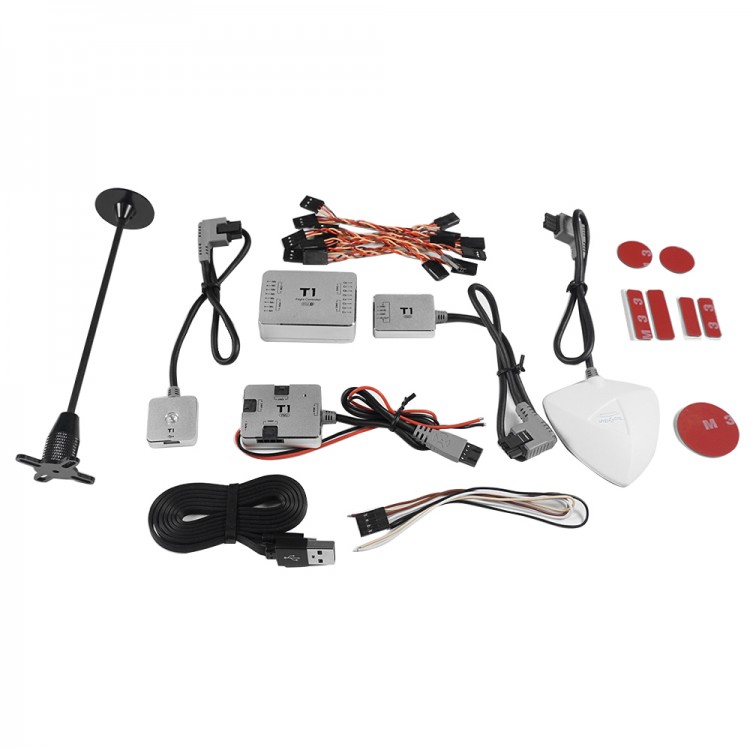

Package included:
- 1 x FCU
- 1 x PMU
- 1 x OSD
- 1 x LIU
- 1 x GPS
