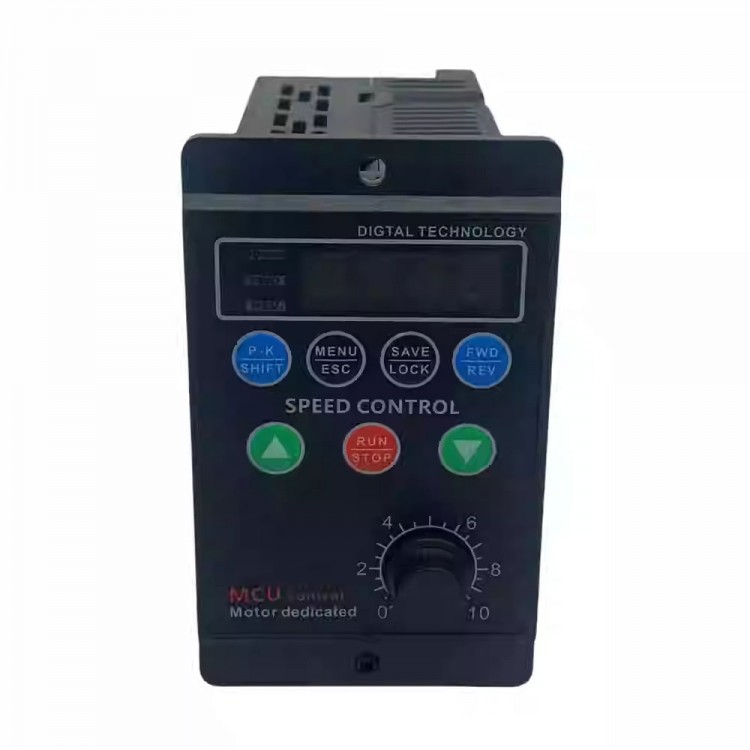

T13-750W-12-H Single Phase Frequency Converter for 220V Single-phase Input & 220V Three-phase Output
Description:
It is a frequency converter supporting 220V single-phase input voltage, used to drive a three-phase motor (be sure to convert the connection method into a t-riangle type). With a 4-digit display and 1.0-99.0Hz output. In order to improve the output voltage, this product uses SVPWM modulation mode and 8.0KHz carrier-frequency. It is suitable for motors below 750W. And the maximum output power is 1100W.
Features:
* The frequency converter supports 220V single-phase input voltage, used to drive a three-phase motor (be sure to convert the connection method into a t-riangle type)
* You can see the data clearly thanks to its 4-digit display
* It can display radiator temperature value, current value, direct current master voltage value, motor speed and operating frequency value
* 1.0-99.0Hz output. In order to improve the output voltage, it uses SVPWM modulation mode and 8.0KHz carrier-frequency
* The frequency converter can arbitrarily change the V/F curve by setting the V/F compensation frequency and the voltage ratio at the frequency
* According to the load situation, setting the maximum value of V/F curve can maximize the use efficiency of electric energy, reduce the heat of the motor, and prolong the service life of the motor and the frequency converter
* Low frequency, high torque, 220V single-phase input, 220V three-phase output, energy saving and electricity saving
* Over-temperature and over-voltage protections
Specifications:
* Item name: Frequency Converter
* Material: ABS
* Power: AC220V±20%
* Input speed: 3000rpm
* Output speed: 0-3000rpm
* Speed adjustable range: 0-1800rpm
* Rated power: 0.5KW
* Temperature: -10℃ to 55℃
* Humidity: 0-65%
* Product size: 143mm x 100mm x 61mm/5.6" x 3.9" x 2.4"
* Product weight: 362g/0.8lb
Package Included:
* 1 x Frequency converter
Packaging Details:
* Weight: 0.45kg
