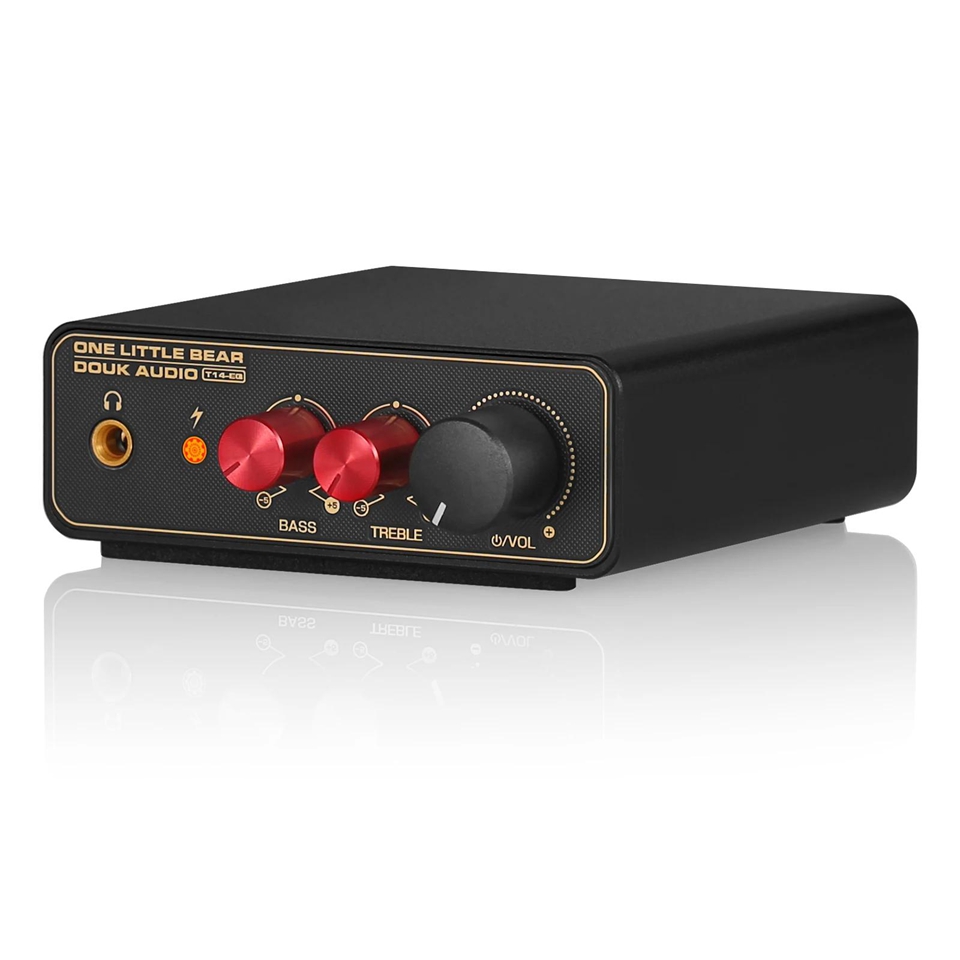

T14-EQ MM/MC Turntable Preamplifier Stereo RCA 3.5mm Headphone Amplifier with Treble and Base Adjustment

T14-EQ MM/MC Turntable Preamplifier Stereo RCA 3.5mm Headphone Amplifier with Treble and Base Adjustment

Features:

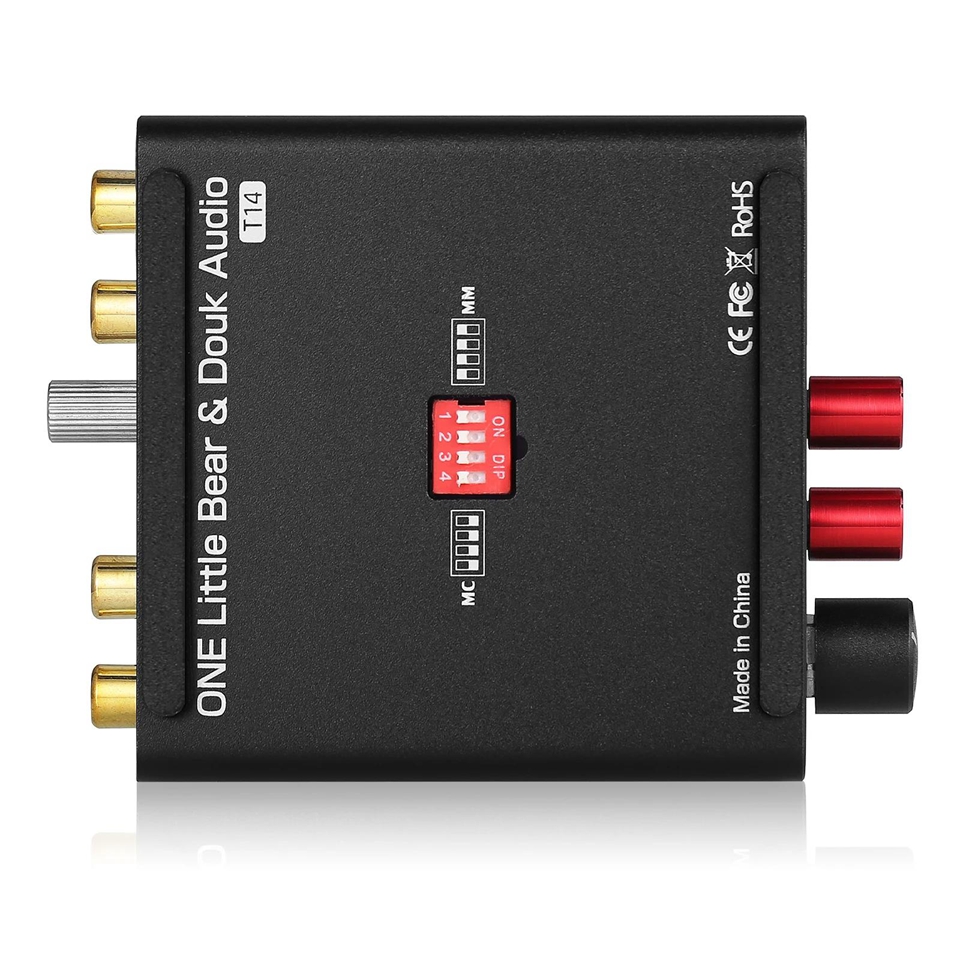

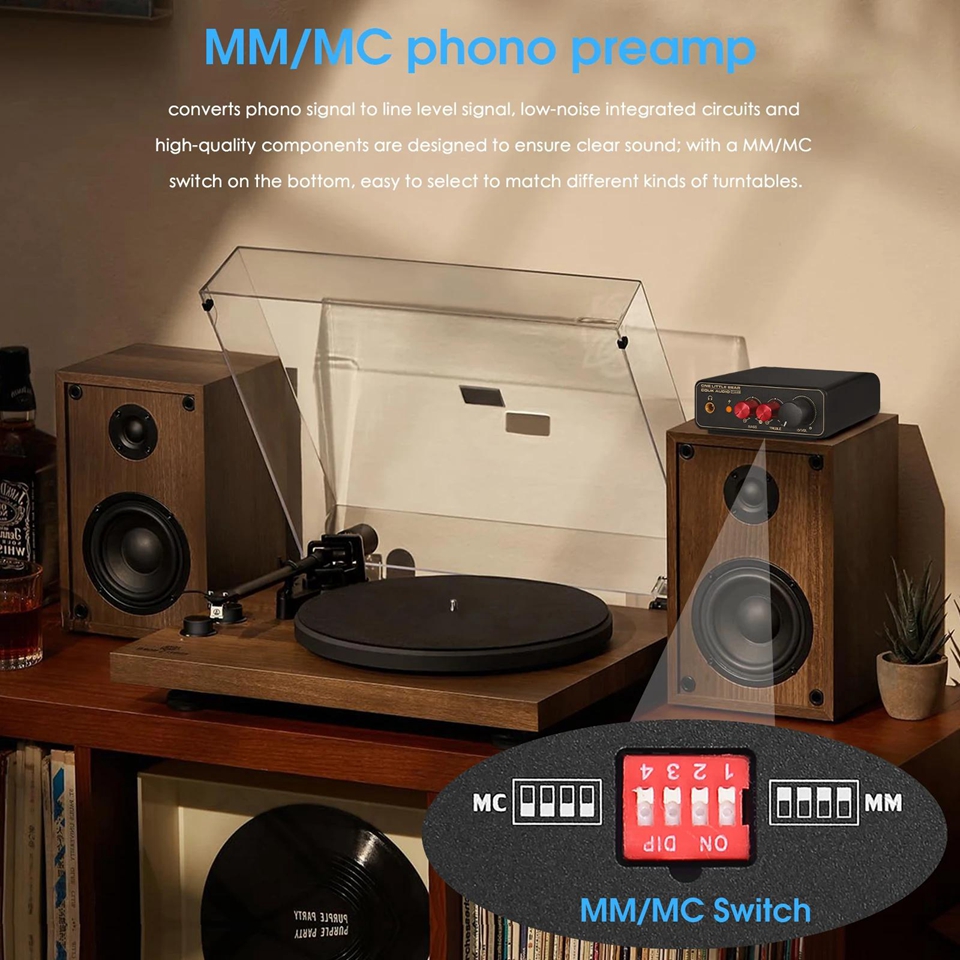

- MM/MC phono preamp: converts phono signal to line level signal, low-noise integrated circuits and high-quality components are designed to ensure clear sound; with a MM/MC switch on the bottom, easy to select to match different kinds of turntables.

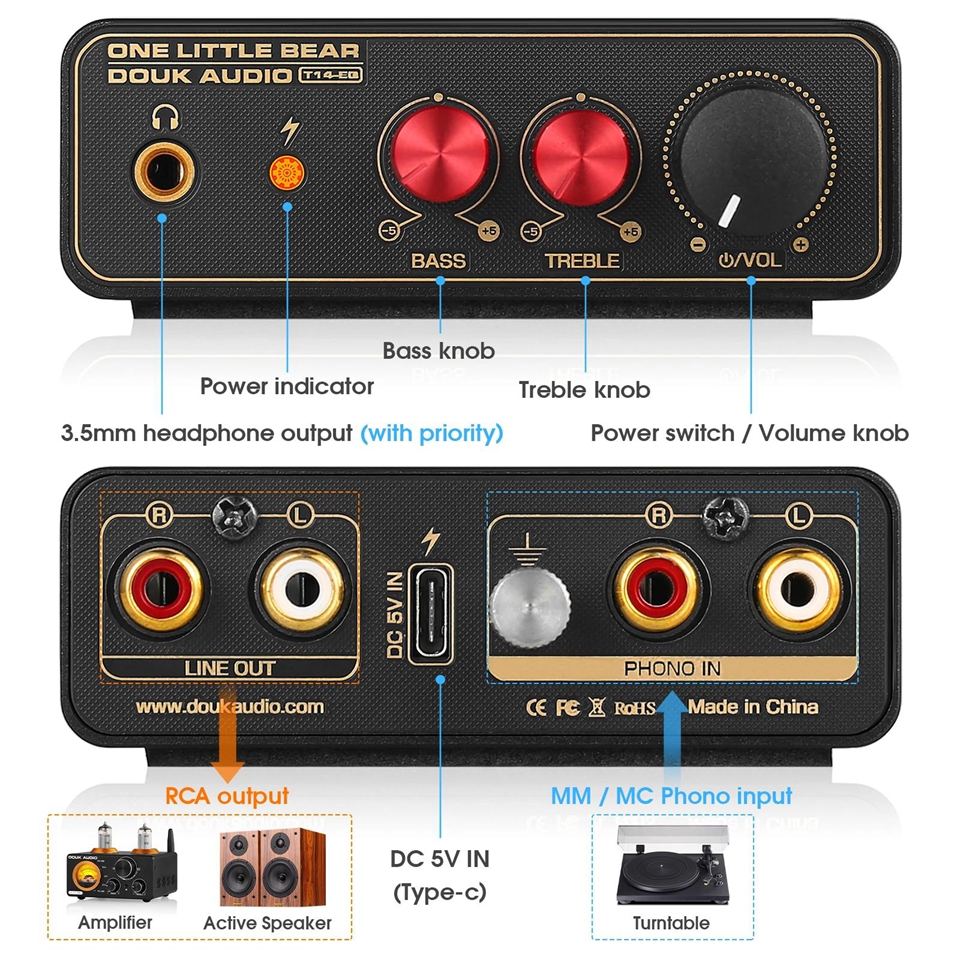

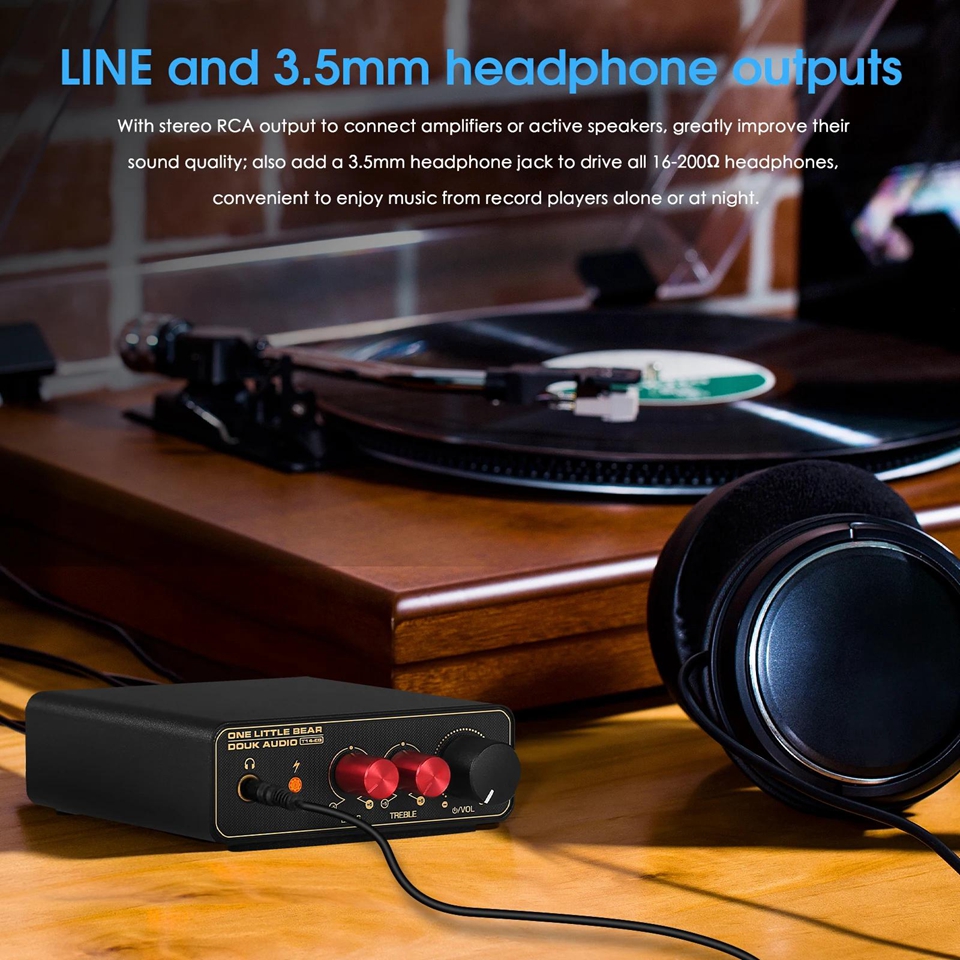

- RCA and 3.5mm headphone outputs: with stereo RCA output to connect amplifiers or active speakers, greatly improve their sound quality; also add a 3.5mm headphone jack to drive all 16-200Ω headphones, convenient to enjoy music from record players alone or at night.

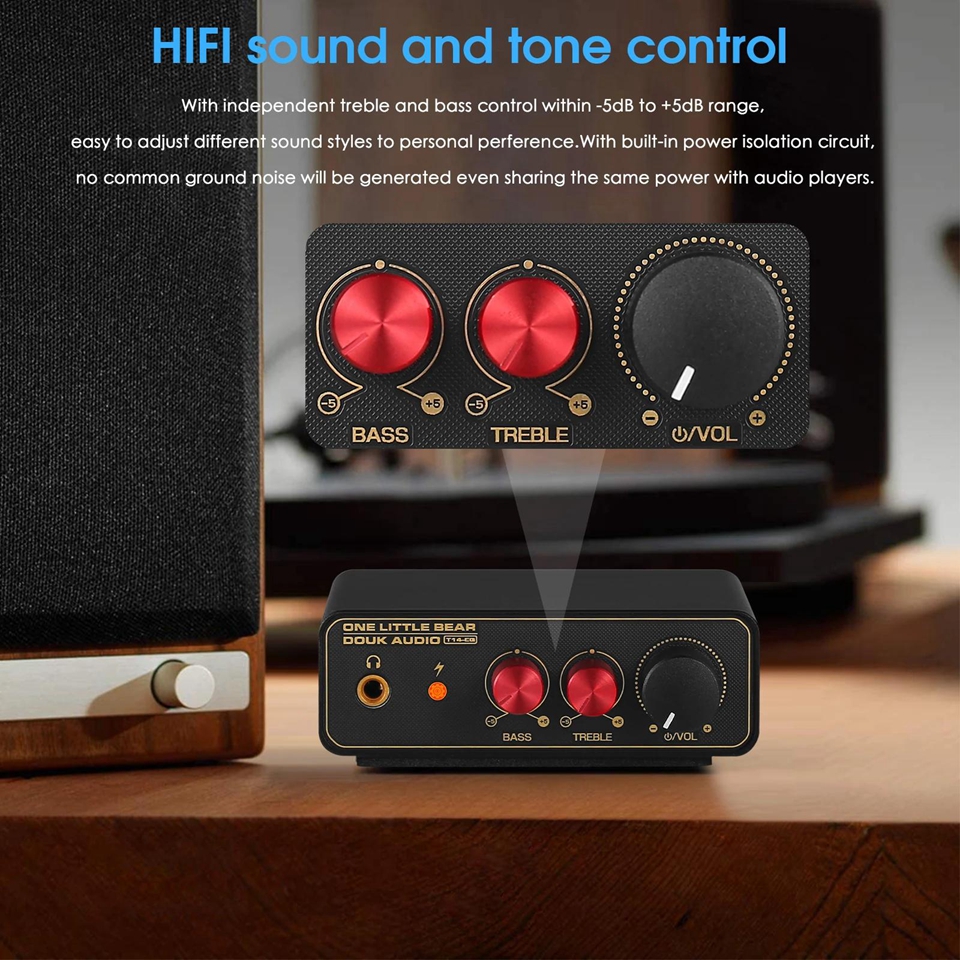

- HIFI sound and tone control: with independent treble and bass control within -5dB to +5dB range, easy to adjust different sound styles to personal preference.With built-in power isolation circuit, no common ground noise will be generated even sharing the same power with audio players.

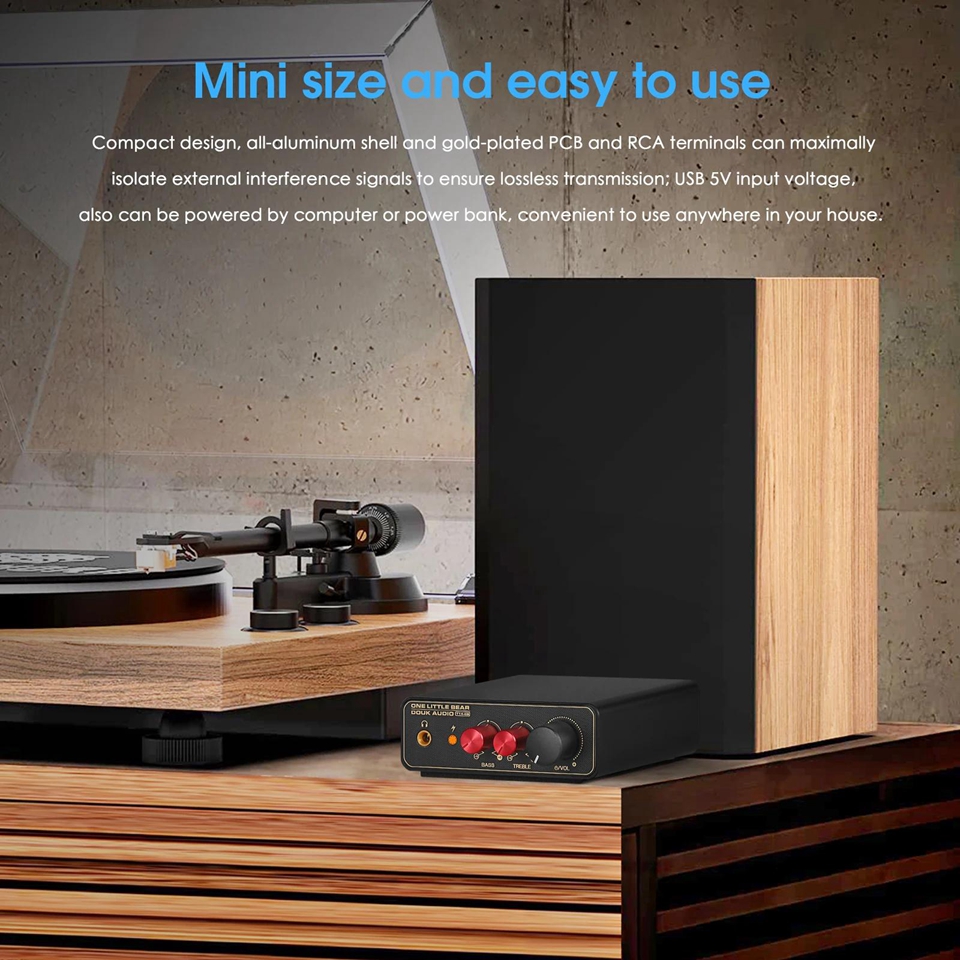

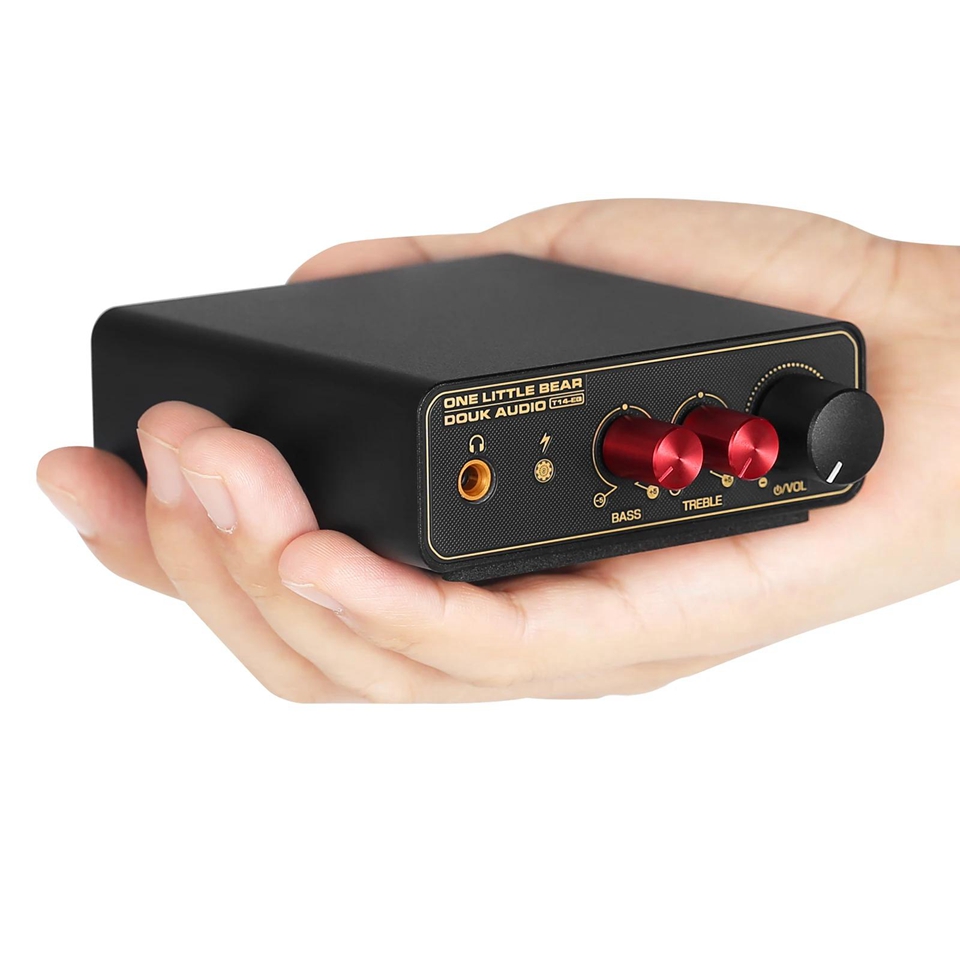

- Mini size and easy to use: compact design, all-aluminum shell and gold-plated PCB and RCA terminals can maximally isolate external interference signals to ensure lossless transmission; USB 5V input voltage, also can be powered by computer or power bank, convenient to use anywhere in your house.

Specification:
- Audio input: MM/MC phono
- Audio output: Stereo RCA / 3.5mm Headphone Jack
- Input level:
  MM: 0.005V RMS
  MC: 0.0005V RMS
- Frequency response: conforms to RIAA characteristics (±0.5dB)
- Treble / bass range: ±5dB
- Headphone output power:
  250mW at 32ohm
  100mW at 64ohm
  60mW at 128ohm
- Headphone impedance range: 16 - 200ohm
- THD: ≤ 0.1%
- Output level: 0.6V RMS
- SNR: ≥ 80dB (Phono)
- Working voltage: DC 5V (≥ 0.6A)

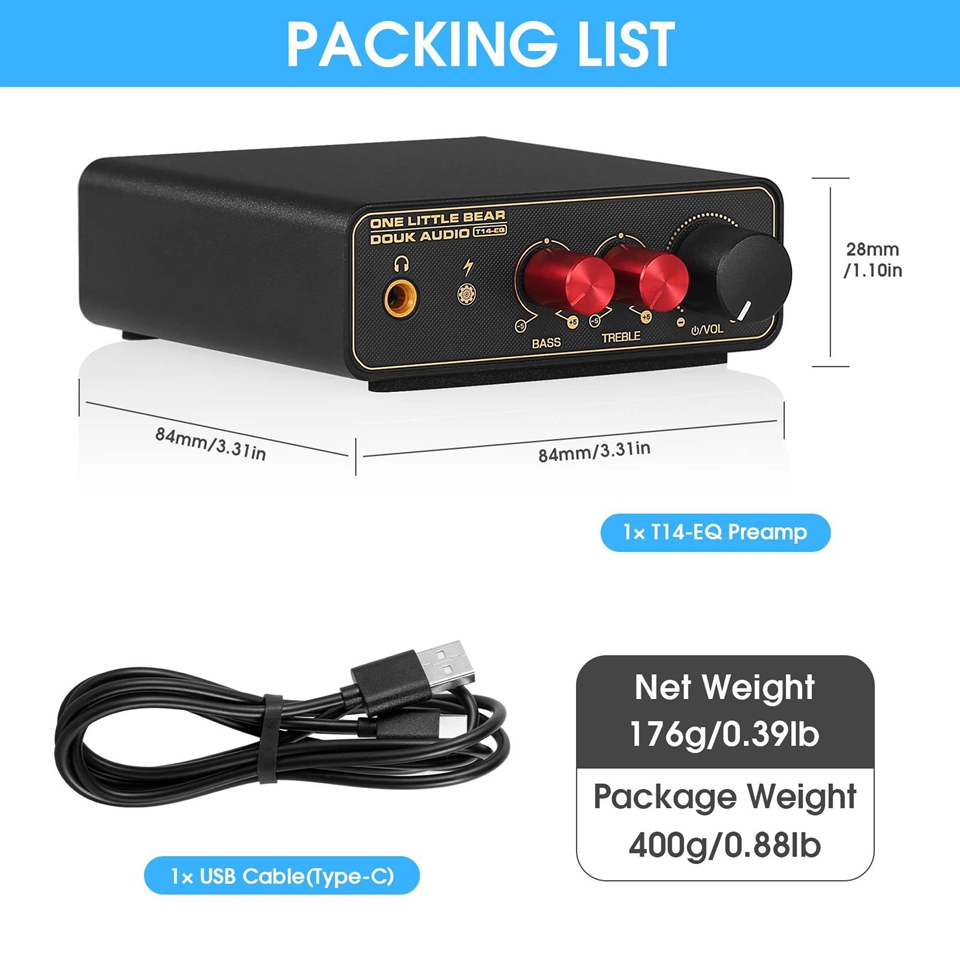

- Dimensions (W x D x H): 84 x 84 x 28mm / 3.31 x 3.31 x 1.10in
- Package dimensions (W x D x H): 133 x 92 x 50mm / 5.24 x 3.62 x 1.97in
- Host net weight: 176g / 0.39lb

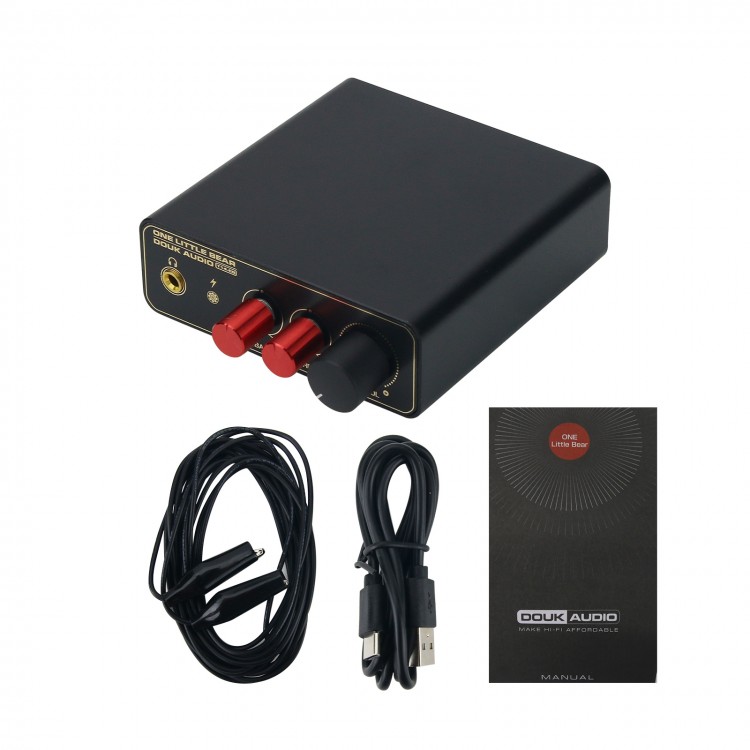

Package Included:
- 1 x Host
- 1 x USB Type-C Cable

Note:
- 3.5mm headphone output with priority, please make sure the headphone cable has been pulled out if want to use stereo RCA output.
- The DC5V power adapter is not included, please prepare it by yourself.
