T150 Storage Expansion Board Support M.2 B Key NGFF SSD 2242/2260/2280 for NVIDIA Jetson Nano
Description:
- The T150 is a M.2 NGFF SATA SSD storage expansion board specially designed for NVIDIA Jetson nano developer kit, it supports up to 2TB M.2 NGFF SSD solid-state drive (SSD), allowing you to expand your storage with high-speed SSD drives on Jetson Nano. Now it is time to build a mobile hard disk with a M.2 NGFF SATA SSD for your Jetson Nano.
- Moe details and user manual: wiki.geekworm.com/T150
Features:

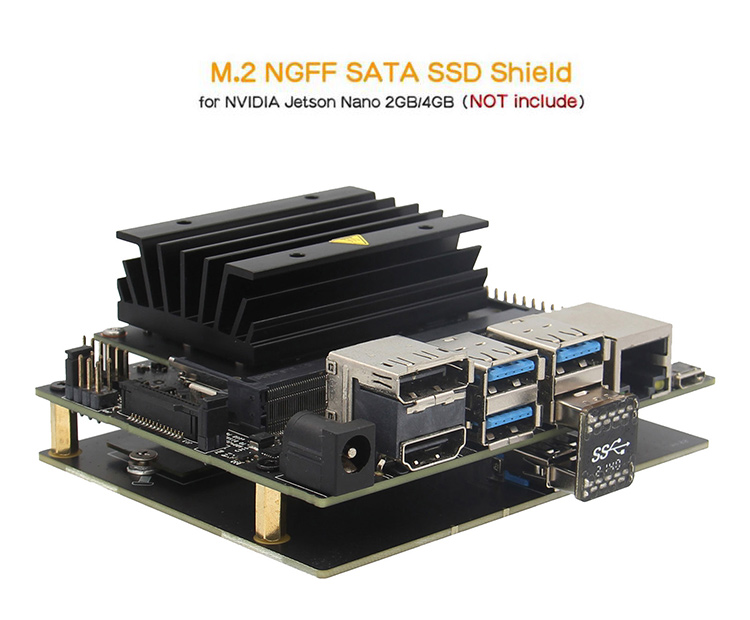

- Ideal storage solution for Jetson Nano - M.2 NGFF SATA SSD Shield
- It is applicable for Jetson Nano 2GB/4GB
- Support up to 2TB M.2 NGFF SSD solid-state drive

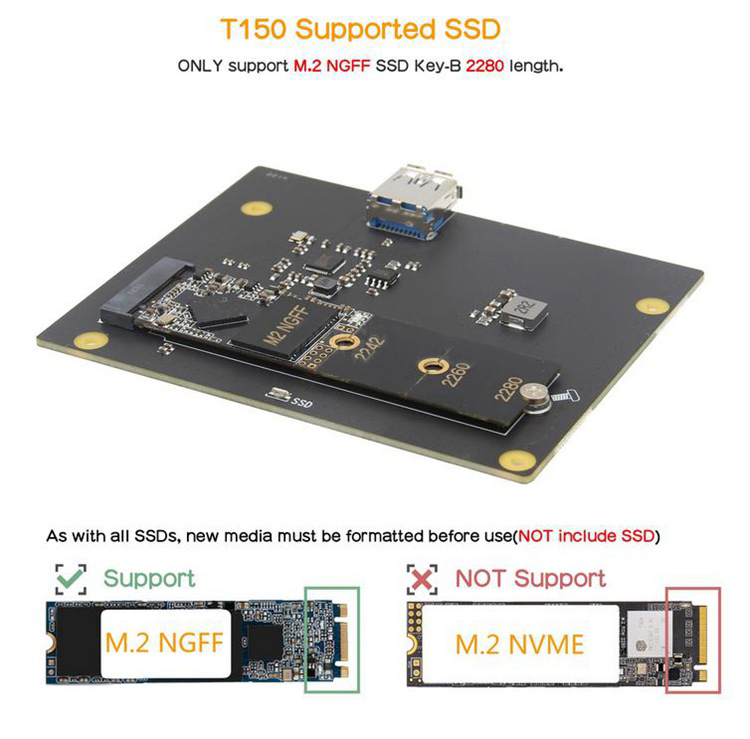

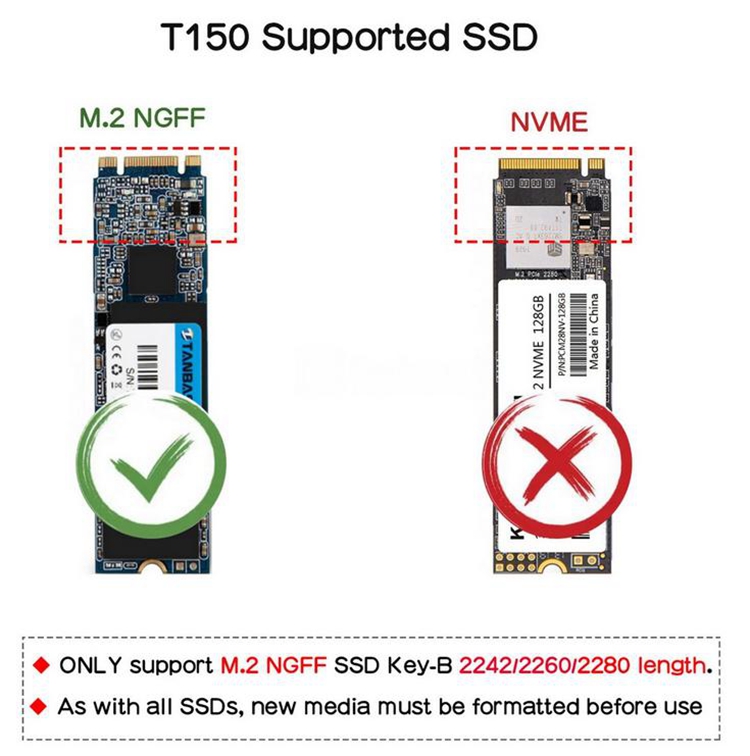

- Support M.2 B Key NGFF SSD 2242/2260/2280 length(Must find proper screws to fix SSD with 2242/2260 length)
- Supports USB Attached SCSI Protocol (UASP)

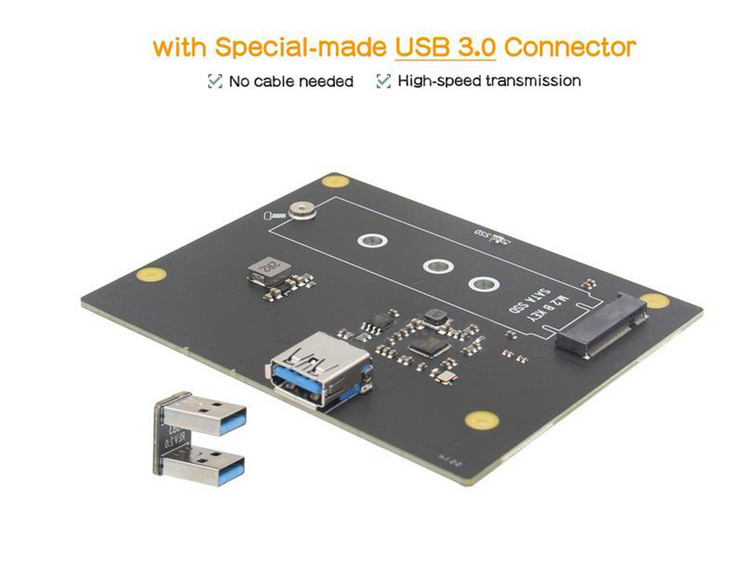

- Specially-made USB3.1 jumper to connect with Jetson Nano- no cable needed!
- USB bus-powered- No PSU needed
- Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
- Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD
- With SSD LED blue indicator

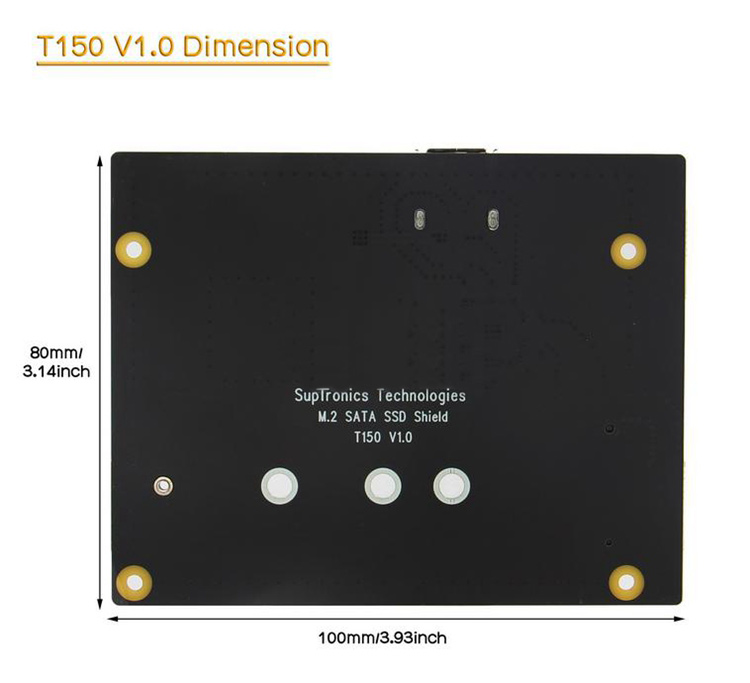

- PCB Size:100x80mm/39.37x31.49inch
How to power:
- DC plug: 5VDC±5% (recommend)
- Micro USB 5V port of the development kit for Jetson Nano

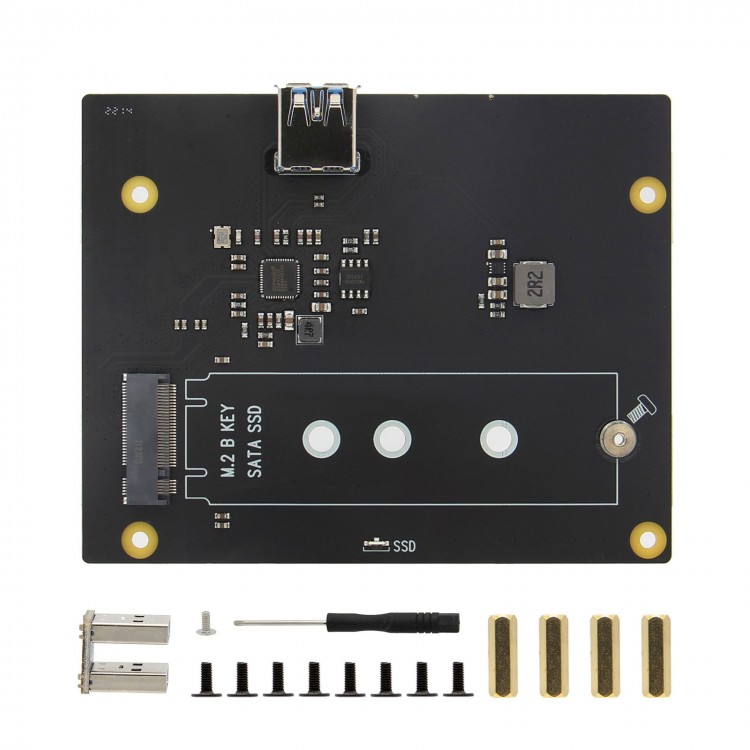

Package Included:
- 1 x T150 Expansion Board
- 4 x M2.5x11mm F/F Spacers
- 8 x M2.5x6mm Screws
- 1 x M2x4mm Screw (fix SSD)
- 1 x Screw Driver
