T25 MK2 TA2024 Class T-AMP HiFi Digital Power Amplifier 15Wx2 with Power Adapter

T25 MK2 TA2024 Class T-AMP HiFi Digital Power Amplifier 15Wx2 with Power Adapter


Product Description:
- The MUSE T-Amp is a so-called Class T integrated amplifier,based on the TA 2024 chipset.The chip makes use of a kind of "Digital Power Processing",this is,more or less, a Class D amplifier with high rate switching properties.That is why they put the word "digital" into it.
- Actually,there's nothing really digital inside,not in terms of D/A conversion.You can view the official TA2024 datasheet,with detailed tech specs,The MUSE T-Amp is nothing else than a pure and simple application suggested by the chipset datasheet.No magic.
- Class T Integrated Amplfier
- 1 RCA Inputs
- High Quality Components
- Bridged Output Amplifier
- Dimension:118x80x45mm(LxWxH)
- Weight:350g
- Color:Black/Silver

And a version of the comparison:
- Re-designed to optimize the line,an increase of volume control,sleep switch;
- Interface using a high-quality accessories;
- Carefully selected high-quality power to ensure a sufficient supply current;
- Re-design made of shell,look more attractive.

Specifications of the IC:
- T-Amp IC Tripath TA2024
- Output Power 2 x 15W @ 4ohm, 2 x 10W @ 8ohm
- Signal-to-Noise Ratio (SNR) 98dB
- Dynamic Range 98dB
- IHF-IM Distortion 0.1% @ 1W, 4ohm
- THD Distortion:0.03% @ 9W, 4ohm;0.1% @ 10W 4ohm;0.1% @ 6W 8ohm;10% @ 23W 4ohm;10% @ 13W 8ohm
- Power Efficiency:81% @ 15W, 4ohm, 88% @ 10W,8ohm
- Input Sensitivity 200mV
- Power socket (5.5mm/2.1mm)x1
- Output
- Speaker OUT (Left) x 1 pair (+/-)
- Speaker OUT (Right) x 1 pair (+/-)
- Power Indicator (Blue LED) x 1

Note:
The machine is BTL output,that is to negative side of speaker out is not public grounded (the two speakers cable must independent connect,no grounding together),we must strictly in accordance with the marking of plus or minus cable connection.
- This T amp is not recommend for car or bike use,if the DC volts input higher than 14V or we may damage IC.If the damages are caused by non-attention on instructions all fees need to pay for maintenance

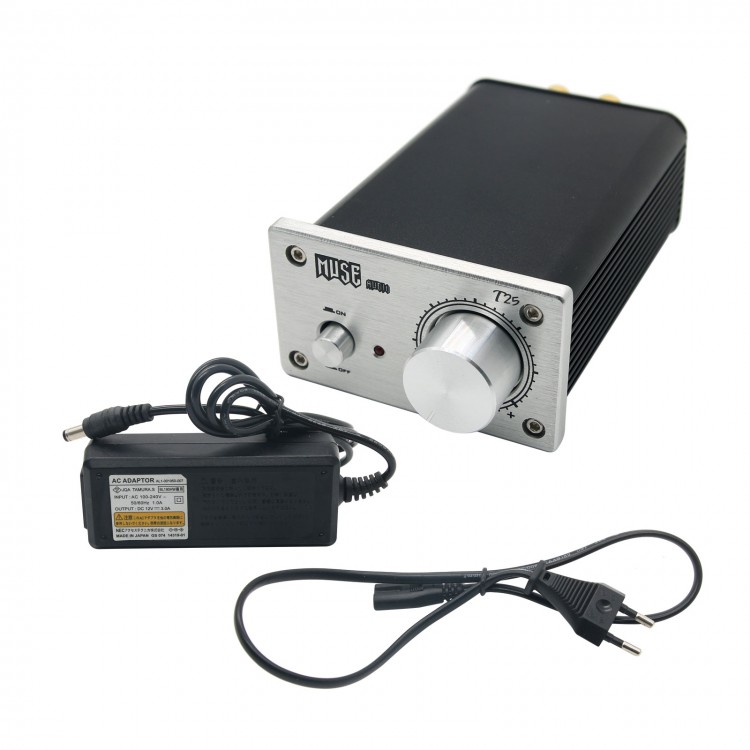

Package:
- 1 x T25 MK2 TA2024 Digital Power Amplifier
- 1 x Power adapter
